11
English
System description 4
Please read the instruction manual before using the instrument and
note the safety instructions.
The measurement unit is used to evaluate the appearance of high-quality
surfaces (Orange Peel, DOI).
The measurement system consists of the portable measurement device,
docking station and the auto-chart program.
Depending on the application, the
system can be used in various ways,
from single measurements in R & D up
to routine quality control procedures
(e.g. automobile).
In order to guarantee a flexible data
analysis, it is essential to allocate the
data to a clearly defined object
(identification).

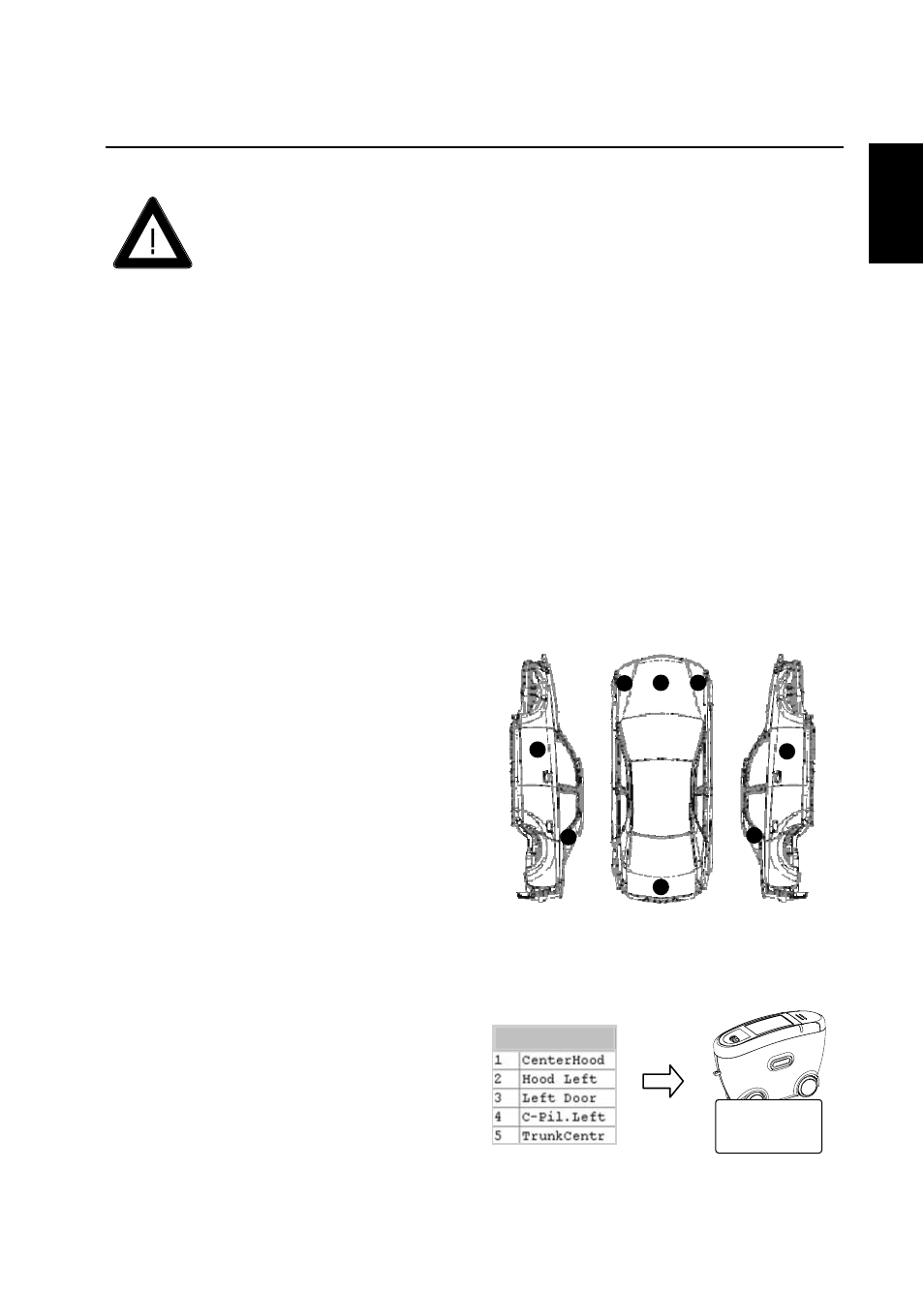

The so-called “Organizer” file clearly
defines the object to be measured.
The Organizer needs to be created in
the auto-chart software and defines the
measurement sequence (sampling
procedure). This file is transferred to
the instrument then to guide the user
during measurement.
8 2 1
7 3
5
4 6
Organizer
Center Hood n=1/3
L
7.6
S 18.3
