Standard Management with BYK-mac link
... to pre-define standard settings (name, n, color system etc.) on PC
1. Definiton of standard settings
• Select Edit Standard and create a new or edit existing standard
• Enter standard name
2. Create new standard

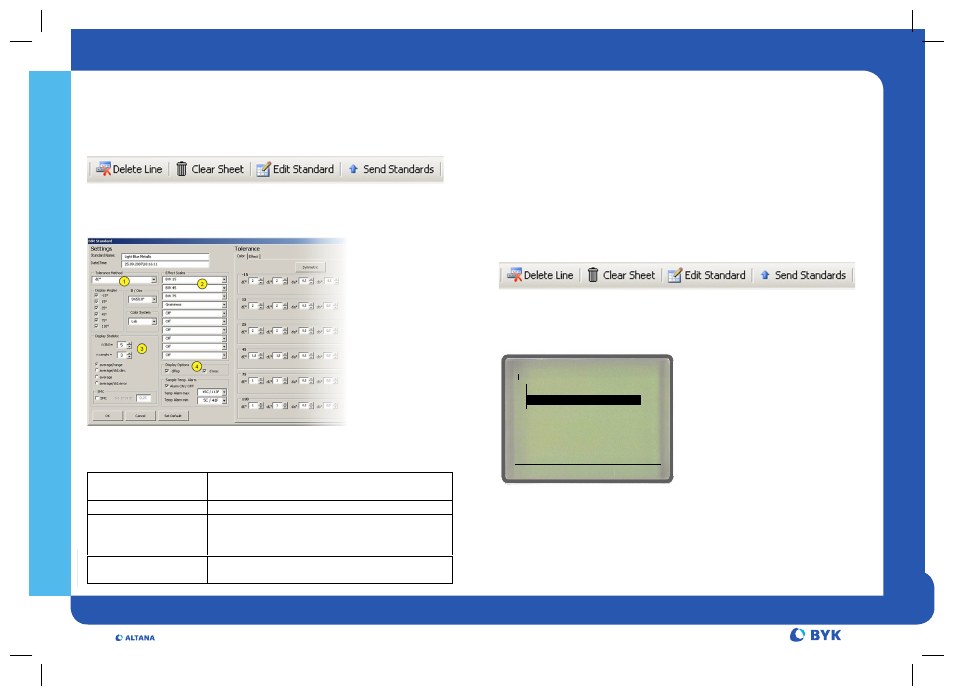

• Enter the desired measurement and display settings:
Color (1) Select color difference, color system,
angles, illuminant/observer
Effect (2) Select effect scales (max. 10)
Statistic (3) Define number of readings or select SMC:
Min. # of readings = n
Standard
and n
Sample
Max. # of readings = 20 (default)
Special options (4) Select dFlop, dmax, set minimum and
maximum temperature to alert alarm
•
Save with OK
Standard name is automatically transferred to standard transfer
sheet and ready for transfer to instrument
3. Transfer standard template settings to instrument
•
Transfer settings to BYK-mac with “Send Standards”
4. Measure standards with BYK-mac
Measure
- New Standard
- 811 Pearl White
Delete
- Difference
- 987 Light Blue Metallic
Setup
Data view
Measure
- New Standard
- 811 Pearl White
Delete
- Difference
- 987 Light Blue Metallic
Setup
Data view
Measure
- New Standard
- 811 Pearl White
Delete
- Difference
- 987 Light Blue Metallic
Setup
Data view
• Select created standard name on the instrument display in
difference mode
• Place instrument on standard and press operate to take the reading
• Continue with the next standard
