AM Series Boilers and Water Heaters

CHAPTER 4 – UNIT START-UP

Page 96 of 156

AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913

OMM-0100_0B

PRI - 07/14/14

Ph.: 800-526-0288

GF-146

Combustion Calibration (Cont.)

7. Set value of parameter 2010 to LOW. The Burner 1 (Master) will now run for 20 minutes at

low fire input.

8. Wait 2 to 3 minutes for the

CO

2

to stabilize.

9. Compare the

CO

2

reading with the low fire range given in Table 11-1, making sure to use the

range for the gas type in use. The

CO

2

reading must be inside the specified range; if not,

STOP the unit and call the Factory service department (see phone number on the last cover
page).

10. Set Parameter 2010 in the Installer Menu (Section 5.4) to OFF.

11. Turn main power switch to OFF.

12. Disconnect plug “B” from connector “A” (See Figure 4-3).

13. Connect plug “B” to connector “C” of the “Burner 2”) (see Figure 4-3).

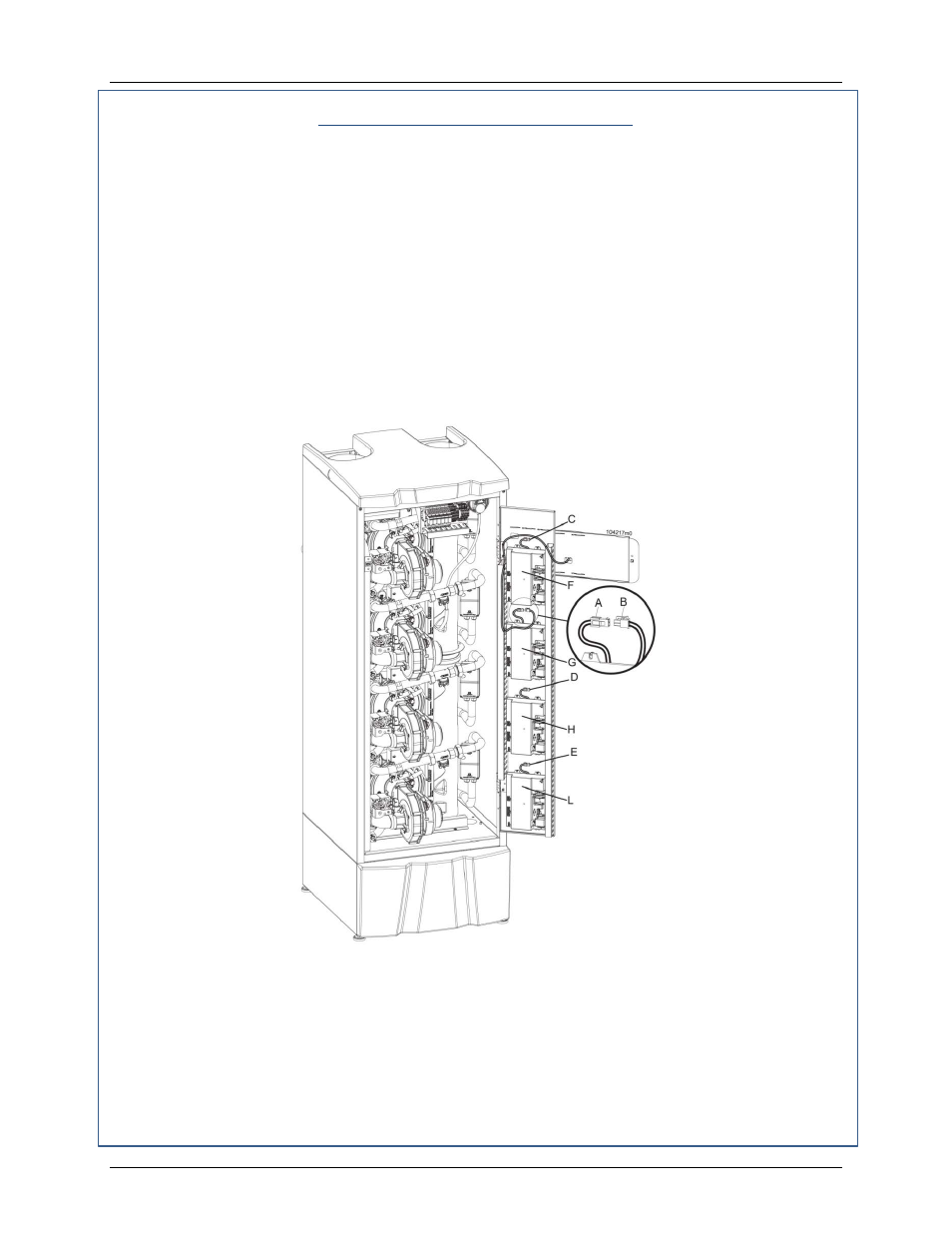

Figure 4-3: Changing the Display Connections

14. Turn ON the main power to the unit.

15. Repeat Step 3 through Step 10 again.

16. Turn OFF the main power to the unit.

17. Disconnect plug “B” from connector “C” and connect it to connector “D” of the “Burner 3”, if

present (See Figure 4-3).
