AM Series Boilers and Water Heaters
CHAPTER 2 – FUNCTIONAL OVERVIEW
Page 22 of 156
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
OMM-0100_0B
PRI - 07/14/14
Ph.: 800-526-0288
GF-146
2.5 AM Series Functional Schematics
2.5.1 AM 399 / 500 Functional Schematic

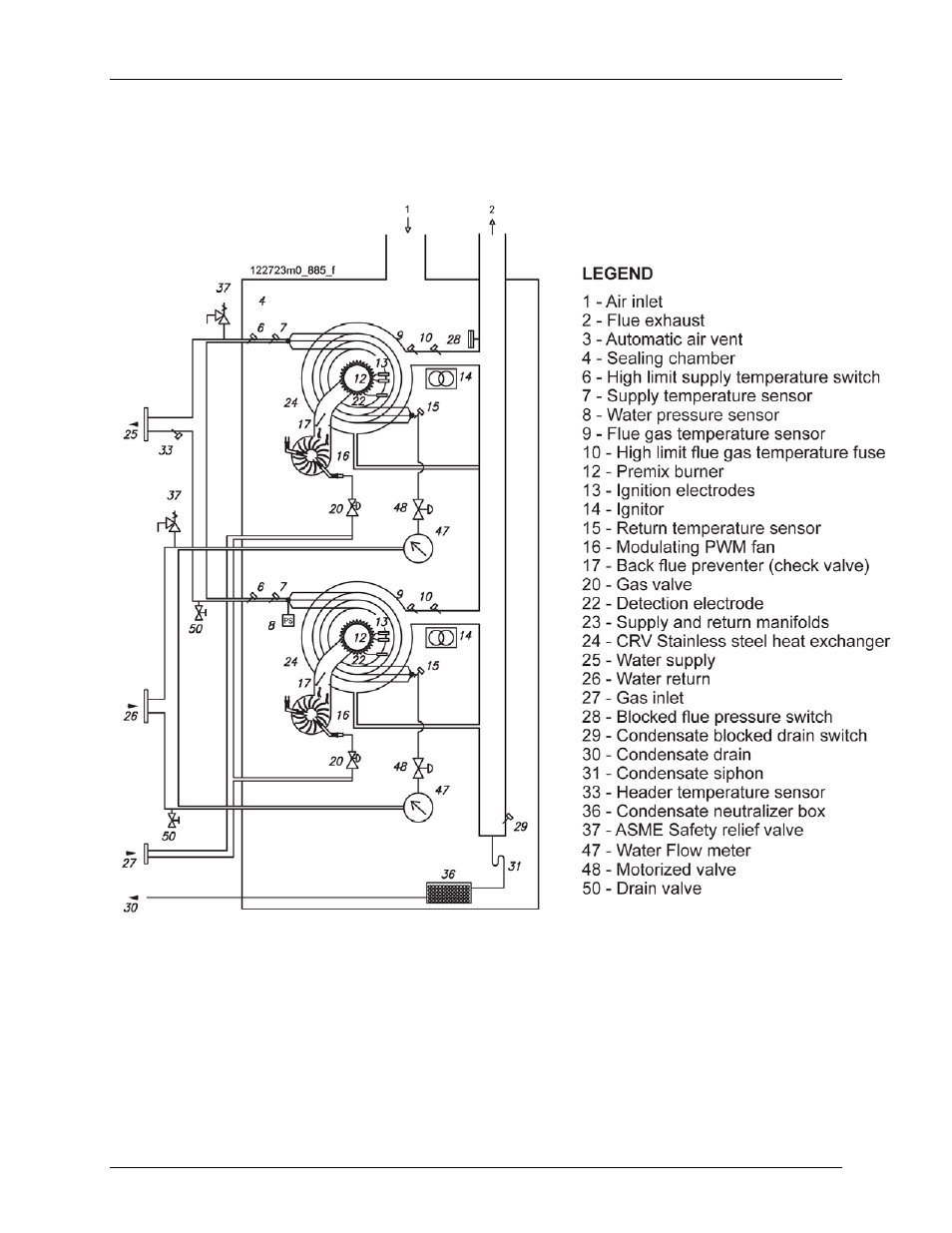

Figure 2-9: 399 / 500 (Boiler & Water Heater) Functional Schematic
