AM Series Boilers and Water Heaters
CHAPTER 5 – OPERATION
OMM-0100_0B AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 107 of 156
GF-146
Ph.: 800-526-0288 PRI - 07/14/14
5.3 User Menu – Boilers and Water Heaters
Simultaneously pressing the RESET and buttons for 2 seconds will invoke the User
Menu. When entering the User Menu, the 1000 series of parameters, as shown in Figure 5-4,
are available for display, but cannot be altered.
Parameters for “Burner 1” are applicable for that burner only. If you want to see the same
parameters for the other burners you must connect the display to the burner you want to see per
the instruction in Section 6.1.2.
To navigate the Installer Menu, perform the following:
User Menu Navigation
Press buttons and to scroll through each of the parameters as shown in Figure
5-4. All parameters in the User Menu may be displayed, but cannot be edited.

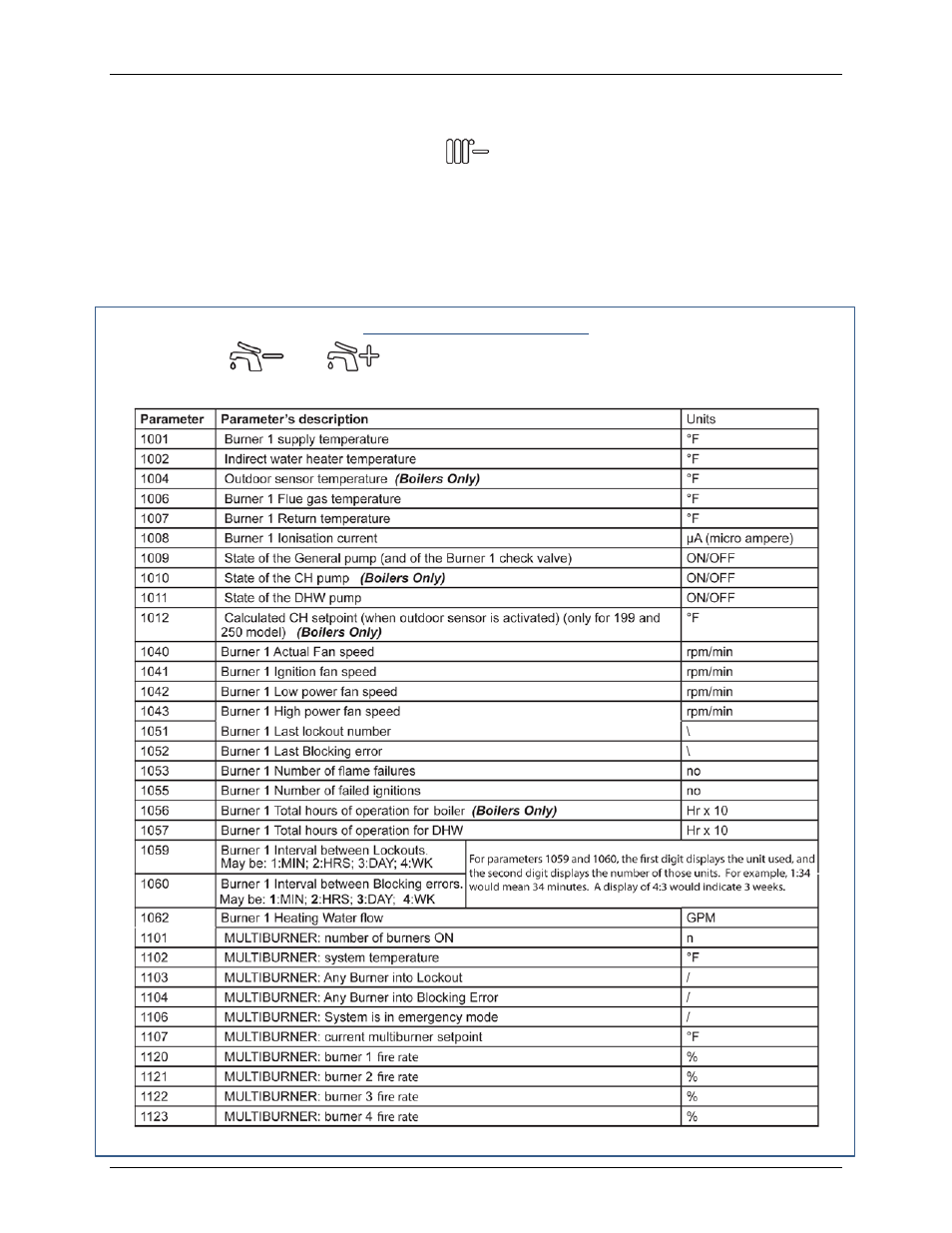

Figure 5-4: User Menu
