3-13 LK-H1W-M-NO3-E
3 Operations and Functions of Software
3

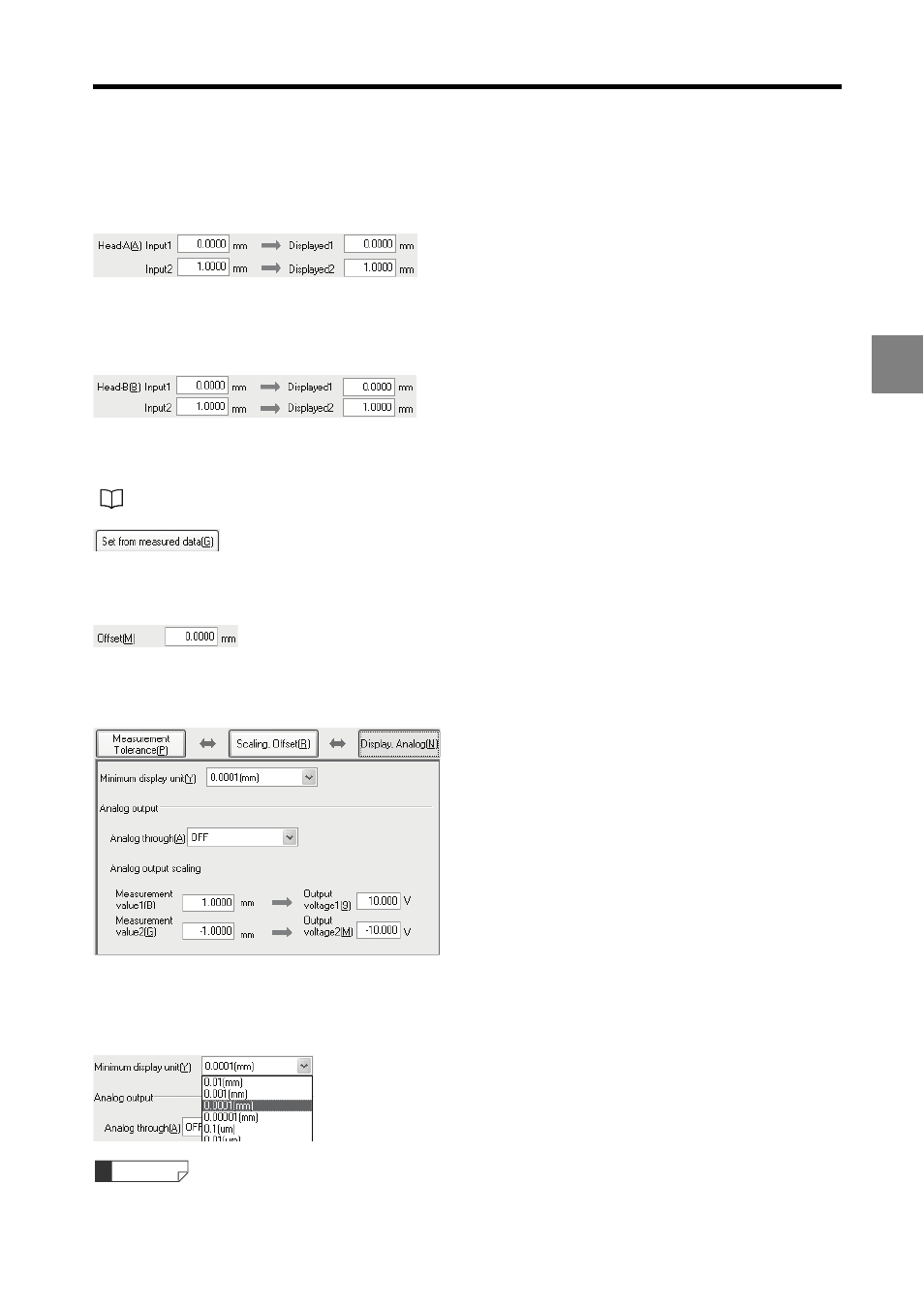

Scaling Setting
• Head-A input value-1/Display value-1, Head-A input value-2/Display value-2
The method to display the Head-A input value on the display can be set using the Scaling
function at the two measurement points as follows.
• Head-B input value-1/Display value-1, Head-B input value-2/Display value-2
The method to display the Head-B input value on the display can be set using the Scaling
function at the two measurement points as follows.
• Setting from the Measurement Data
Set the Scaling while confirming the actual measurement data.
Offset
Set the offset.
5. Display, Analog
Set the measurement value display and the analog output.
Minimum display unit
Set the decimal point position of the measurement and setting values, and set the number
of digits to display.
The digits that are not displayed below decimal point will be rounded off.
Refer to "Procedure to Implement Setting from the Measurement Data" (page 3-15).
Reference
