3-6

LK-H1W-M-NO3-E

3 Operations and Functions of Software

3

Basic Settings

Basic settings of "LK-Navigator" are described below.

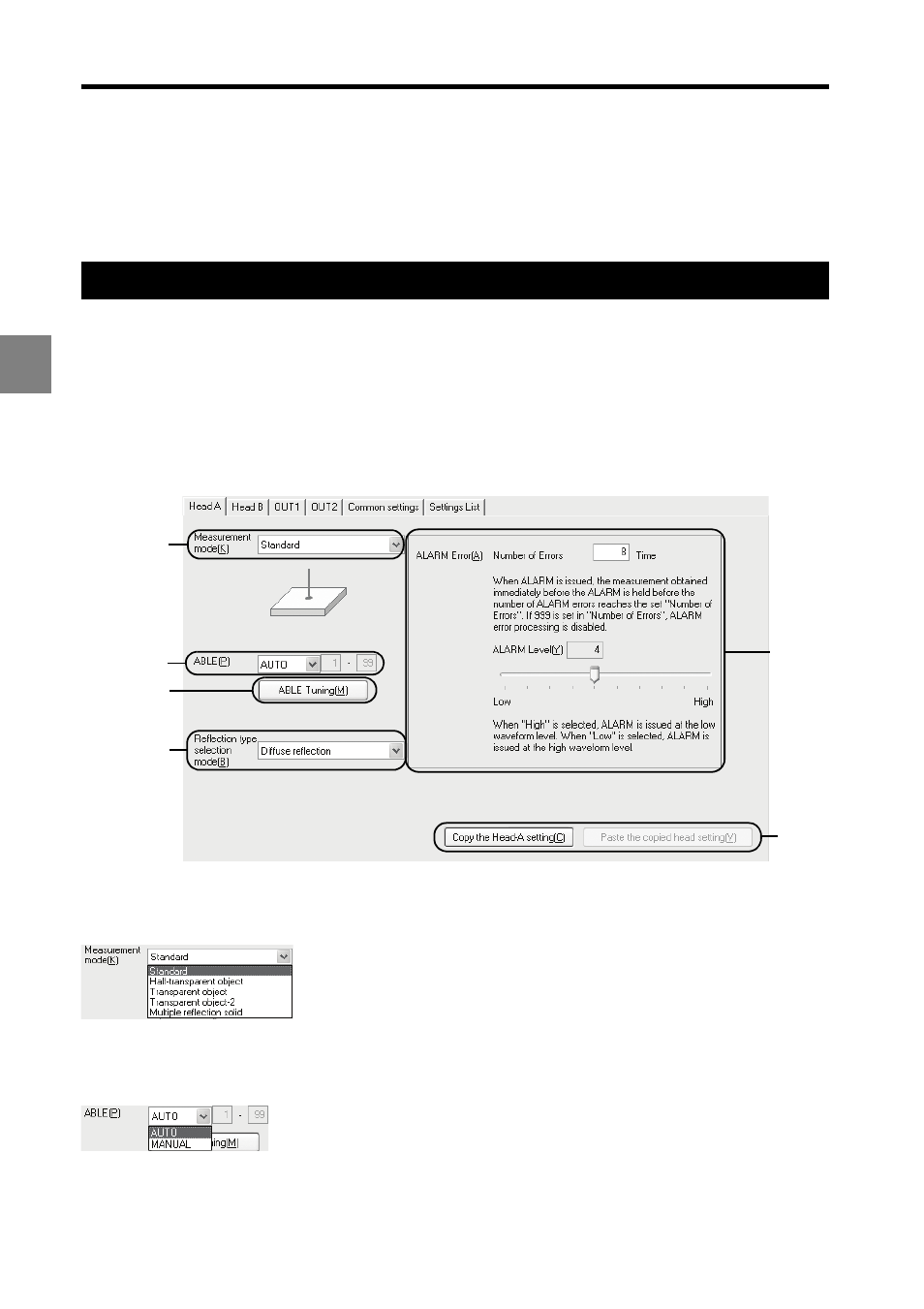

Head-A/Head-B

The screen and functions of the Head-A tab and those of the Head-B tab are
described below.
The heads that are connected to the controller can be set using this function. The
items required to be set are identical in Head-A and Head-B. The settings should be
made in accordance with the environment in use.

Click the [Head A] tab or the [Head B] tab on the setting window.

1. Measurement mode

Select the measurement mode.

2. ABLE

Select either automatic (AUTO) or the manual (MANUAL) control of the light intensity.

1

2

3

5

6

4
