the profile library. The Profile Designer window also displays Yield Stress
and Viscosity test parameters for the profile. The Profile Designer
interface options are explained briefly in the following section:
Interface options

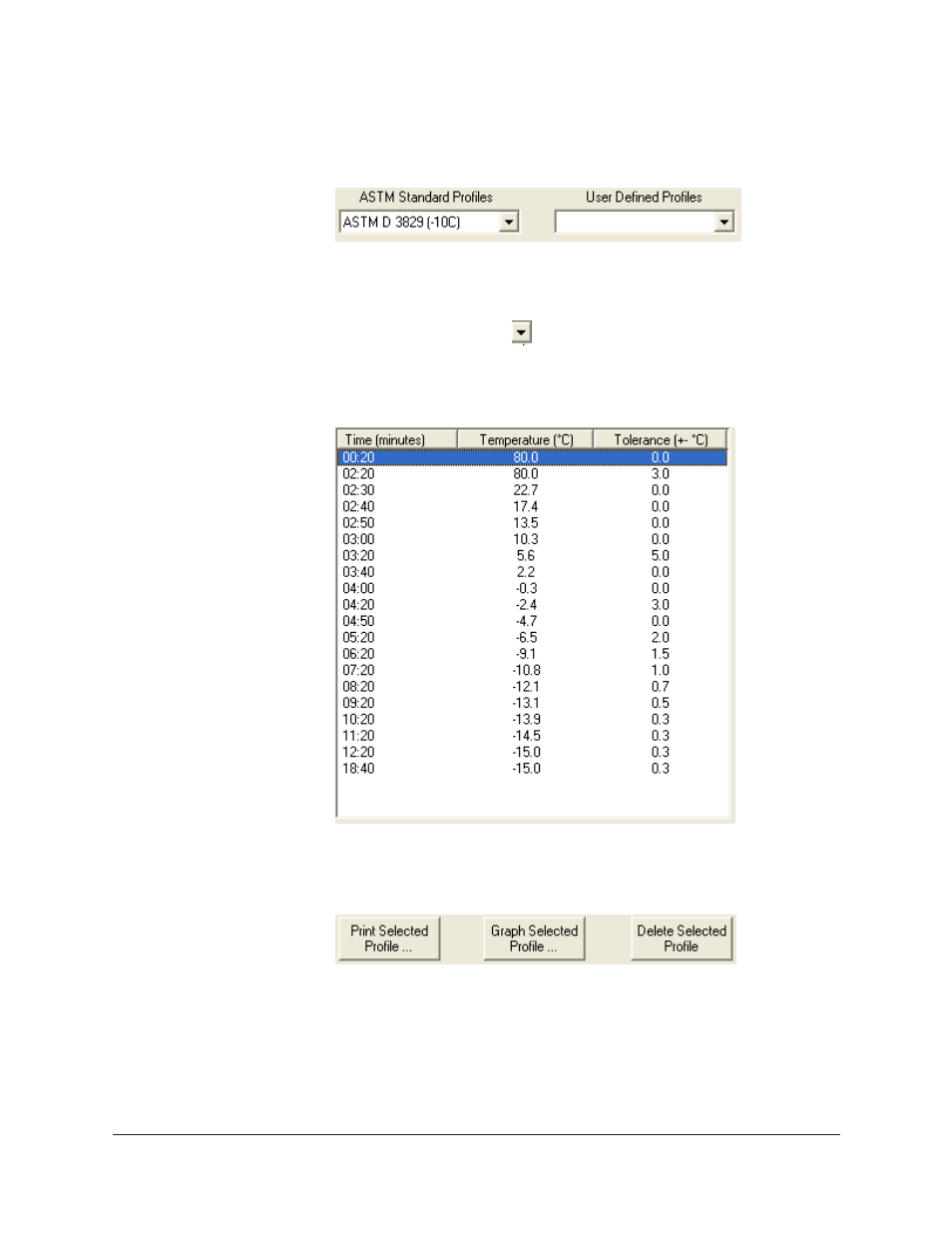

The profile library The profile library consists of two types of profiles—ASTM-defined
profiles and User-defined profiles.
Click the "down" arrow ( ) to display the list of available profiles.
Then click the desired profile to select it and display the Time, Tempera-
ture and Tolerance data for each defined point of the profile.
Time/Temperature/Tolerance data from the Profile Designer window
Managing profiles
Click the Print Selected Profile button to print the currently-displayed
profile.
Click the Graph Selected Profile button to display a Profile Graph
plotted from the defined points of the profile.
