Front panel operations

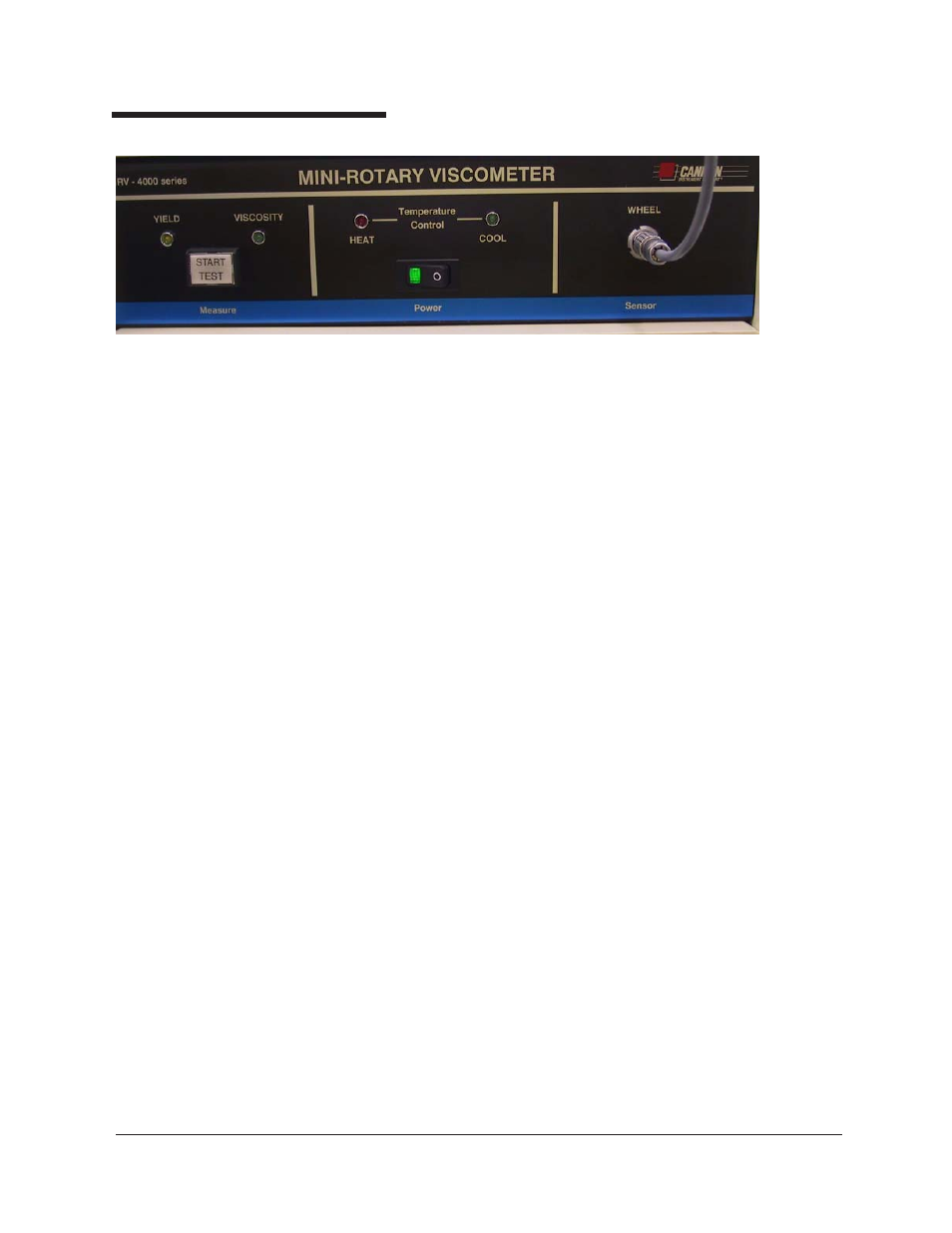

CMRV front panel
Control features CMRV front panel control features are simple and functional. The central
switch on the front panel is the power switch for the unit. The light-
emitting diodes (LEDs) above the switch indicate function of the heating
and cooling systems. The
Sensor connection on the right side of the
panel mates with the cable from the pulleywheel optical sensor. The Start
Test button on the left side of the panel is used to initiate CMRV-
controlled testing and calibration routines. The Yield and Viscosity
LEDs light during yield stress or viscosity testing.
For additional details on front panel operation, refer to the calibration and
testing chapters of this manual.
