Brookfield DV3T Rheometer - Manual (Page 77)

Brookfield Engineering Labs., Inc. Page 77 Manual No. M13-2100
V.4.8 Calibration Reminder
The DV3T can be programmed to provide the user with a reminder that calibration is due. Two
parameters must be set: Frequency in Months and Start Date. When both parameters are entered,
the Calibration Reminder screen (see Figure V-13) will calculate and display the day when the
reminder will be presented.
Check the Calibration Reminder On check box to activate this feature.

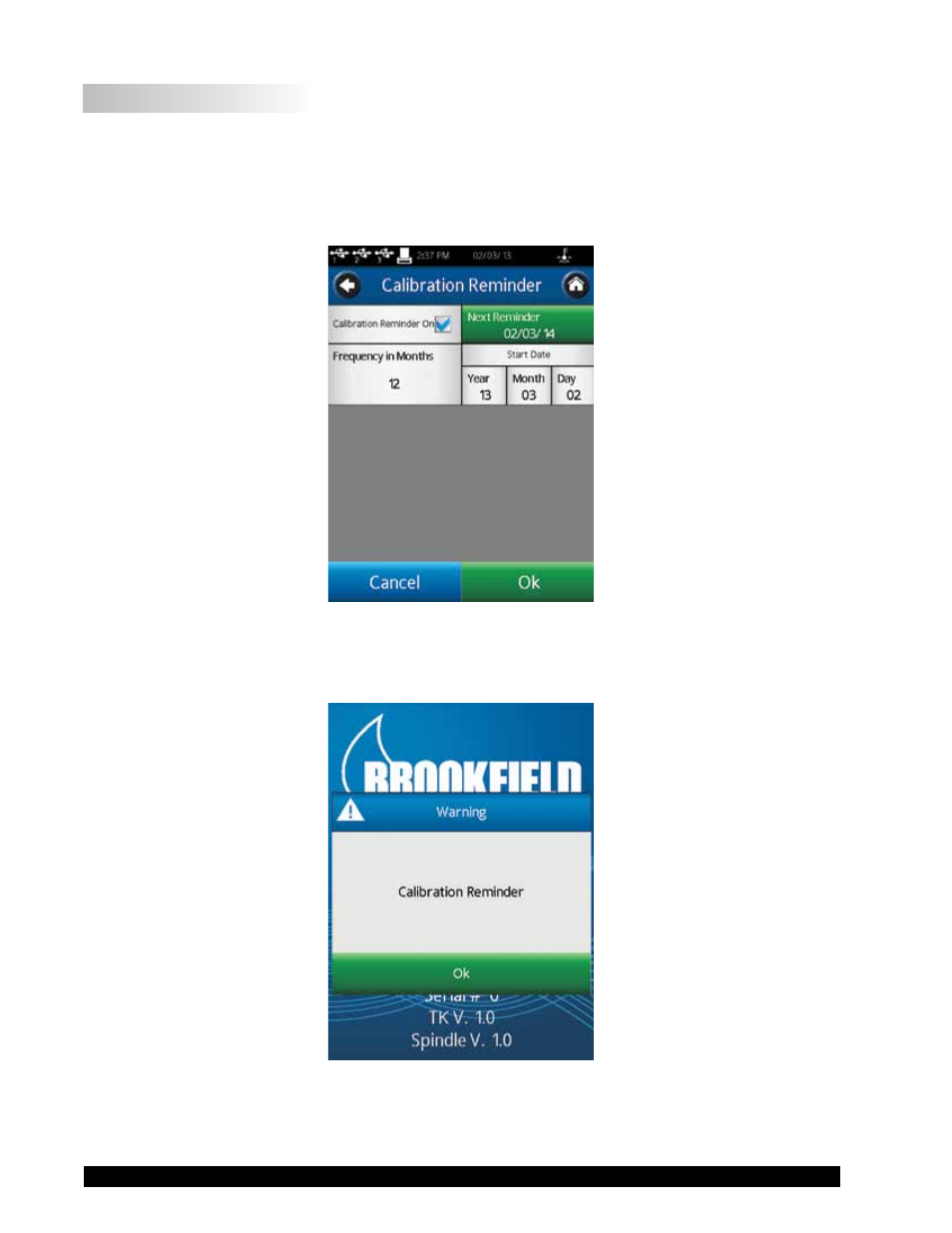

Figure V-13
The Calibration Reminder will be presented during the first power up on or after the specified day.
The message box (see Figure V-14) requires that the user press OK before the AutoZero will be
performed.
Figure IV-14
The calibration reminder will be reset by Brookfield or your authorized Brookfield dealer when the
unit is returned for calibration.
