42
The B.C.D. Out submenu, shown in Figure 15, is next under Setup. Use this
configure whether the BCD board outputs force information. This item is only
offered in the Setup menu if the BCD board is installed.

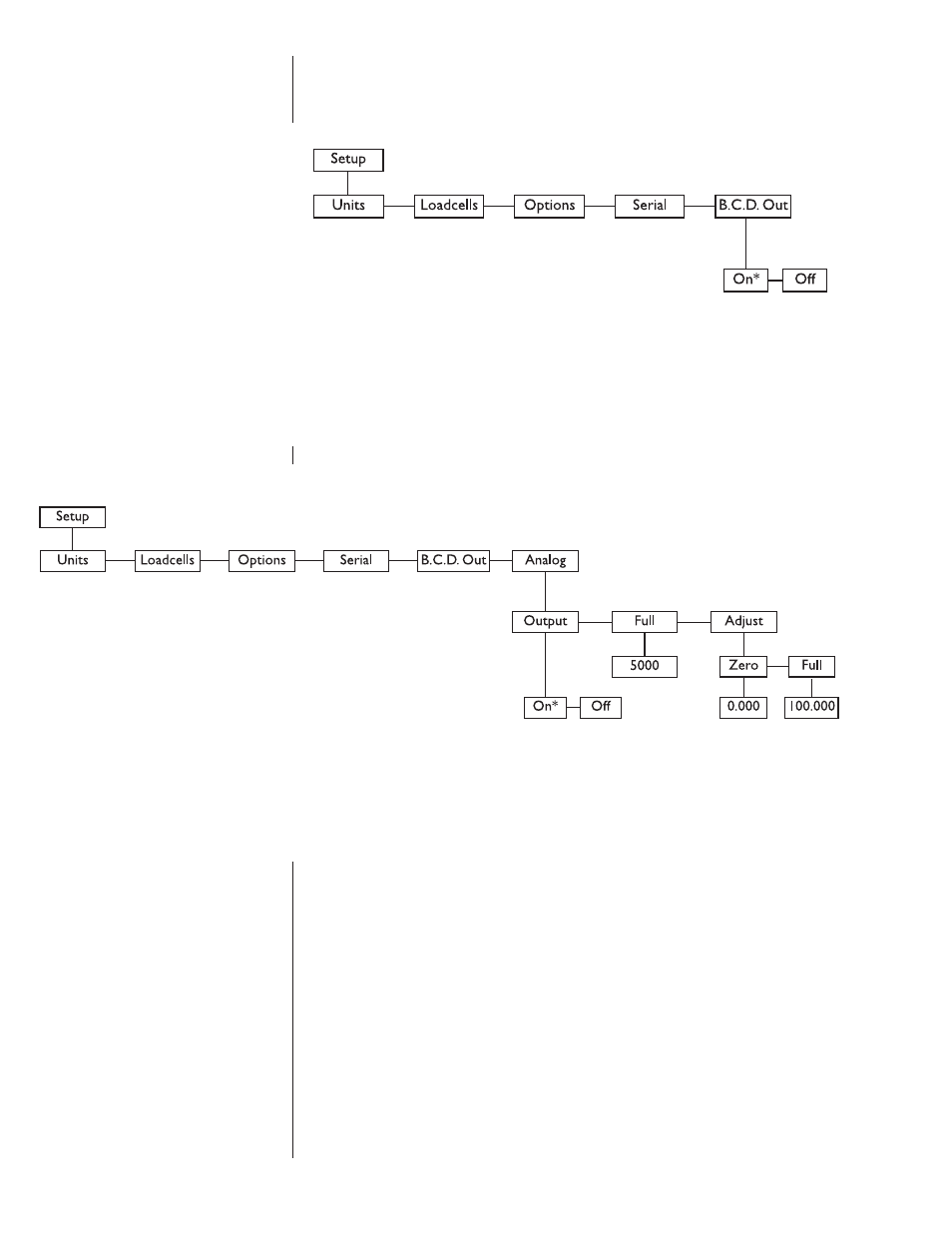

Figure 15
B.C.D. Out submenu
The Analog submenu is shown in Figure 16 and explained below.
Output - Under Output, choose On to output the force value and
Off to disable analog output. The optional Analog output
board must be present for this function to work.
Full - Allows you to view/edit the value to which the analog
output may be spanned. This selection is not offered when
Output is set to Off.
Adjust - Provides access to the offset and gain adjustments for the
analog output. The adjustment can be made by entering a
percent value or by using Е
Е Е Е Е or MENU to make incre-
mental adjustments. Pressing Е Е Е Е Е decreases the adjustment;
pressing MENU increases it. Holding in Е Е Е Е Е or MENU
causes the magnitude of the adjustment to double every
key repeat (2/sec) until it reaches 512 times the minimum
adjustment. The adjustment magnitude is maintained in the
same direction on every key press, until the other
B.C.D Out submenu
Analog submenu
Figure 16
Analog submenu
