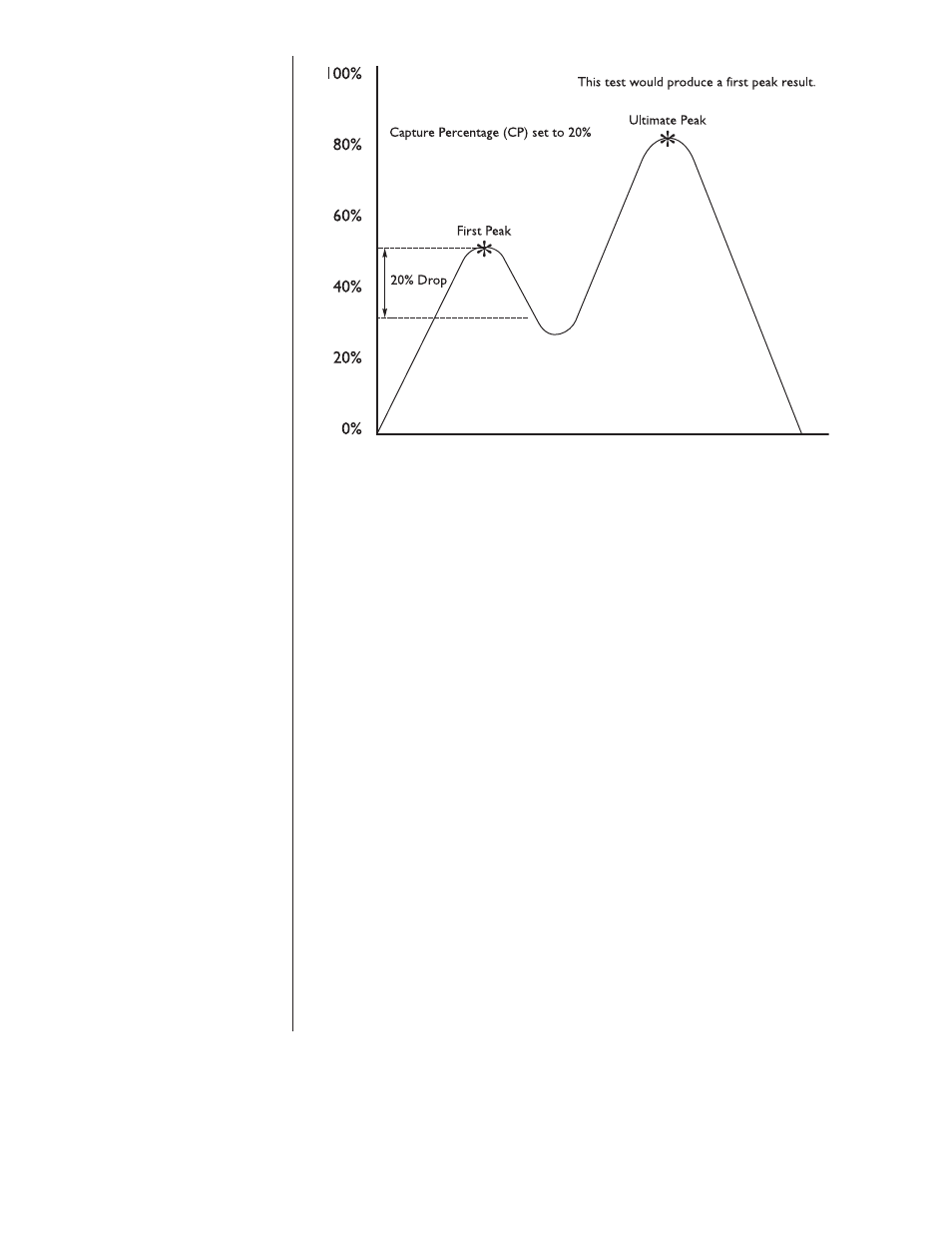

Figure 2
First peak illustration
The function keys are used for
• F1 Loadcell selection
• F2 ID number entry
• F3 Viewing or entering data in cutoff registers
1. Press F1 key. . . The display shows the current cell
number and a letter showing if the cell
type is F for force or T for torque.
2. Press the ENTER key. . . The capacity of the current cell is
displayed.
3. Press the MENU key. . . The division size for the current cell is
displayed.
4. Press the ENTER key to return to
Display mode or press
the ESCAPE key to return to the
display from step 1.
Using the Function Keys
F1 Key
Full Scale Capacity of Loadcell
Time➔
