CardioPerfect Workstation
Exercise ECG Module - User Manual
DIR 80012335 Ver. E 60 / 83

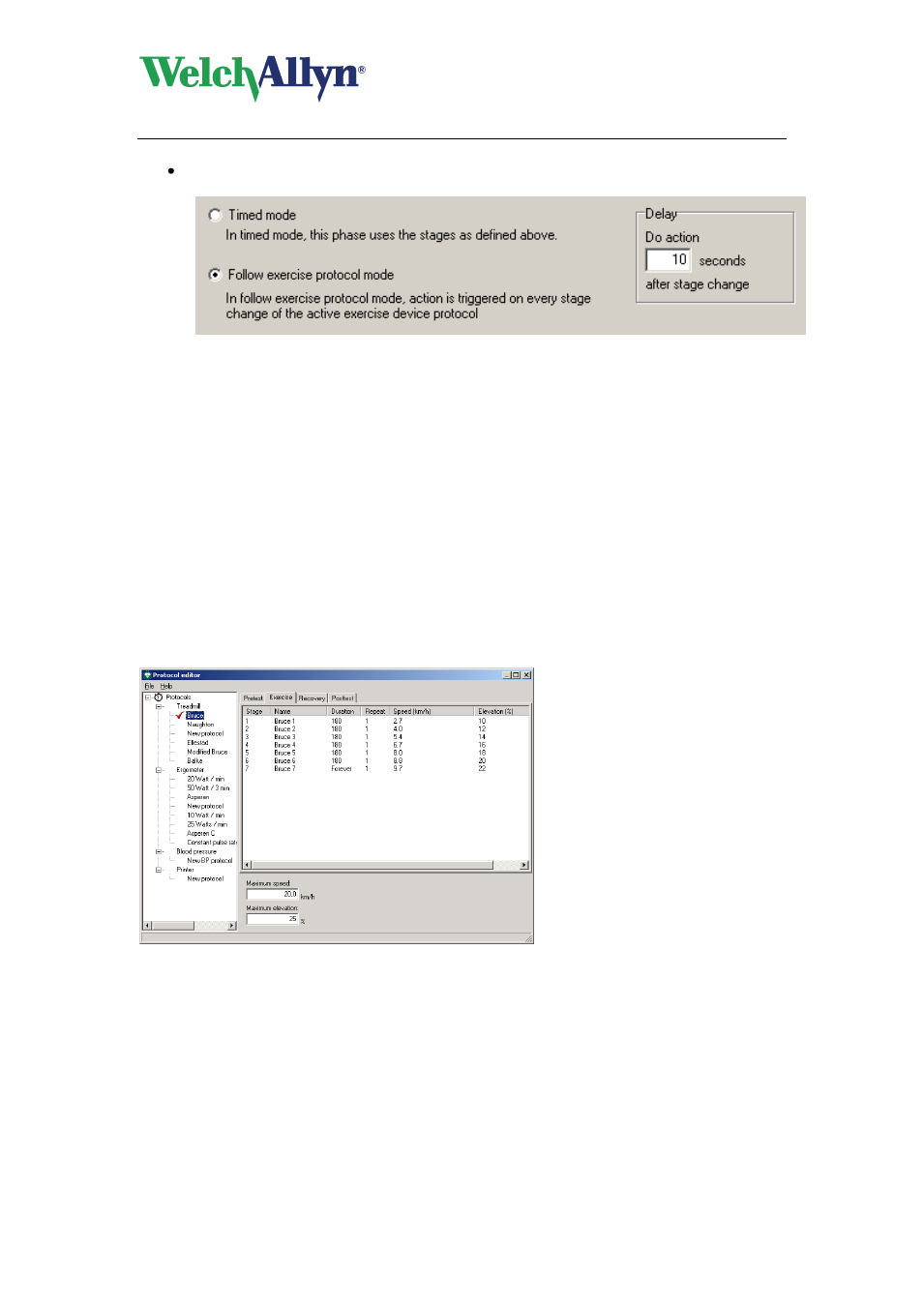

Select a mode, see picture:
1. Select Timed mode to create a protocol which will run independent of the ergometer
or treadmill stages. An independent protocol consists of stages, each of which has its
own duration. Regardless of whether you hold or accelerate an exercise device
stage, the independent BP or print protocol will continue to run using the stage
intervals defined for that protocol.
2. If you select Follow Exercise protocol mode the Blood pressure action (prompt or
automatic BP start) or printout will occur at a fixed time after the start of each stage.
All stage related fields and menus will then be disabled. Any information in the pane
above the mode selector will be disregarded.
3. You can select a different mode (independent or Follow Exercise protocol) for each
phase
8.4 Protocol editor window
Use the Protocol editor window to create and edit protocols and their stages.
Protocol list
The left hand pane of the Protocol editor window contains a list with all existing protocols.
These protocols are divided into treadmill protocols, ergometer protocols, blood pressure
protocols and printer protocols.
Protocol workspace
The right hand pane of the Protocol editor window is where you add, edit and delete stages.
The workspace is divided into four tabs that represent the four phases in a protocol: pre-test,
exercise, recovery and post-test. For each phase, you can create a number of stages.
Menu bar
Here, you find functionality to import and export protocols, and to consult the help file.
