CardioPerfect Workstation
Exercise ECG Module - User Manual
DIR 80012335 Ver. E 38 / 83
3.8.2. Copy ST measurements into other applications:
The ST table can be copied, fully or partly, into other MS windows applications. Select a
single measurement row with a left mouse click or select multiple rows with left mouse
click and/or left mouse click (for a group of contiguous rows). Use the copy option
available from the shortcut menu to copy and paste the text into other MS windows
applications.
3.9 Work with the Heart rate view
3.9.1. Heart rate view

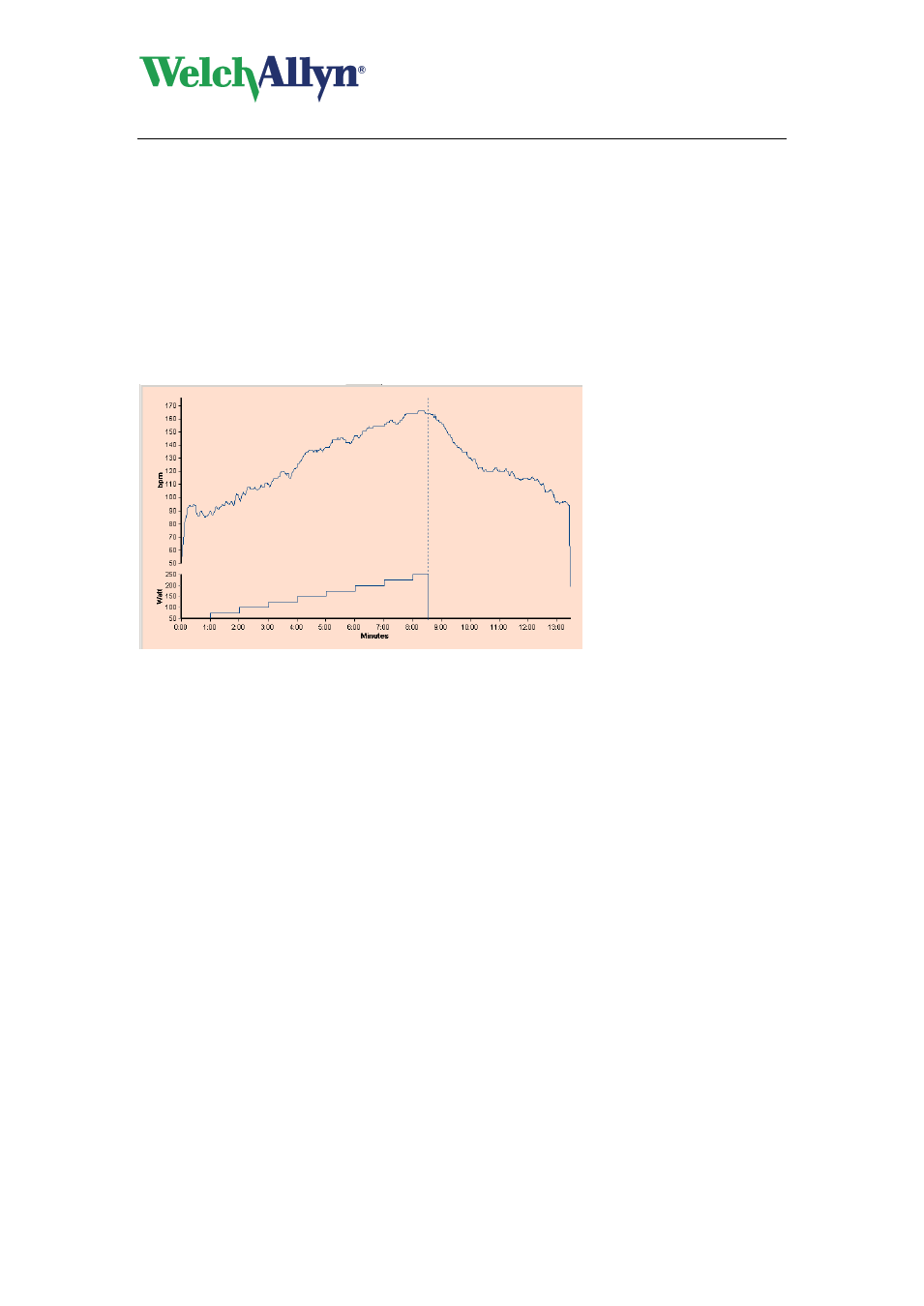

The Heart rate view displays information about how the patient's heart rate evolved during the
test. The upper graph displays the patient's heart rate against time. The lower graph displays
the workload against time.
Phase changes are indicated with a vertical dotted line.
3.9.2. Compare heart rate graphs
If a patient has had several exercise ECGs, Welch Allyn CardioPerfect Exercise ECG can
make a serial comparison of the patient's heart rate during these tests. In such a comparison,
the curves are superimposed.
To compare heart rates:
1. In the Heart rates view, click your right mouse button on one of the graphs to display
the shortcut menu.
2. In the shortcut menu, click Comparison. The Comparison dialog box is displayed.
This dialog box contains all other exercise ECGs that have been recorded for this
patient.
3. In the Comparison dialog box, select one ECG to which you want to compare the
current ECG.
4. Click OK. The heart rate graph of the selected exercise ECGs is superimposed on
the current exercise ECG.
