2.2.1.
Place electrodes on the patient
When you connect the electrodes to the patient, make sure that the electrodes and their
connectors (also the RL/N electrode) do not contact other conducting parts (including earth).

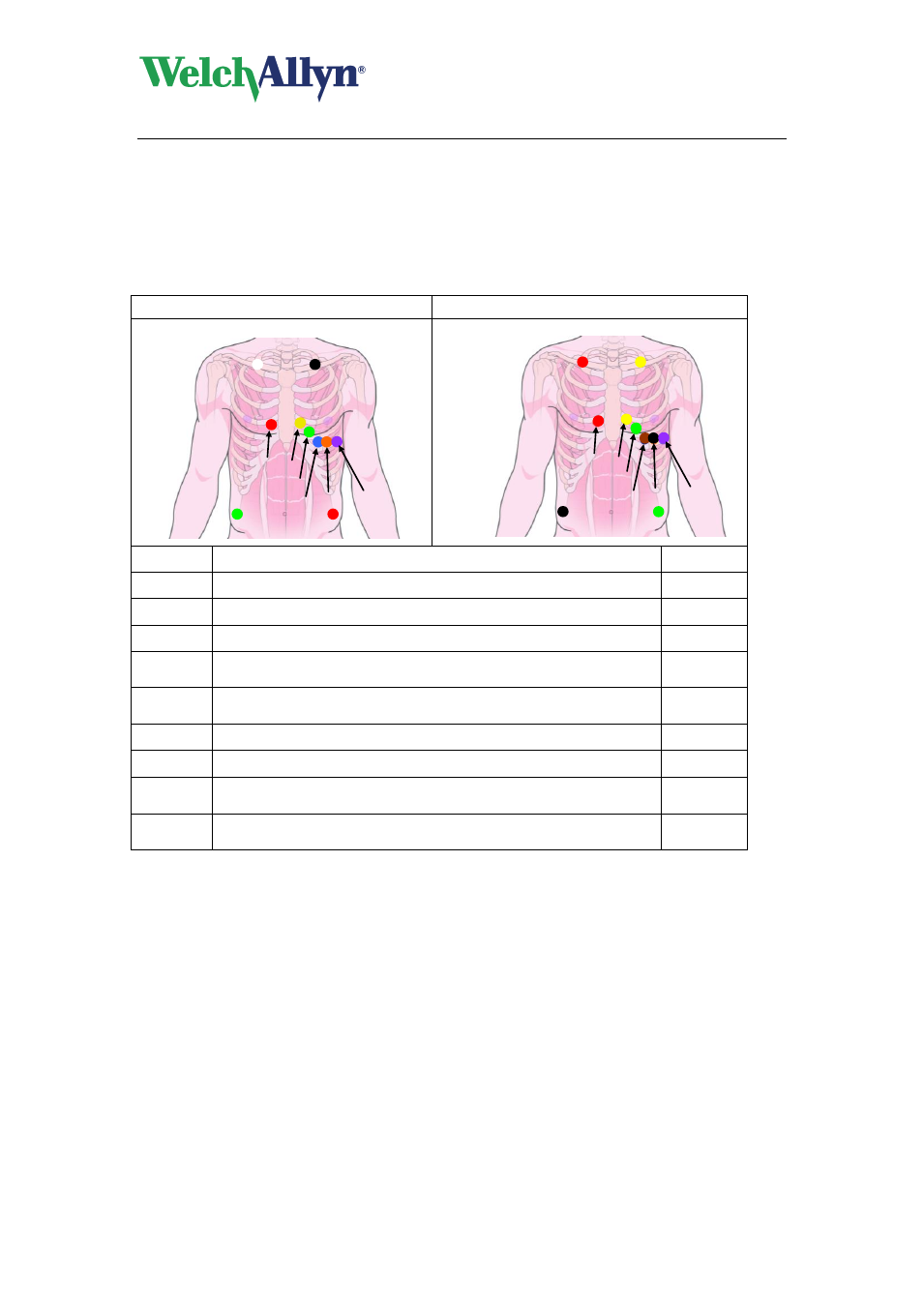

Connect the electrodes in the following positions:
AHA
IEC
V1
Fourth intercostal space at the right border of the sternum.
C1
V2
Fourth intercostal space at the left border of the sternum.
C2
V3
Midway between locations V2 and V4.
C3
V4
At the left mid-clavicular line in the fifth intercostal space.
C4
V5
At the left anterior axillary line on the same horizontal level as
V4.
C5
V6
At the left midaxillary line on the same horizontal level as V4
and V5.
C6
RA
On the right, below the clavicle or above the crista scapulae.
R
LA
On the left, below the clavicle or above the crista scapulae.
L
RL
Right, just above the spina iliaca superior posterior
or the crista iliaca.
N
LL
Left, just above the spina iliaca superior posterior
or the crista iliaca.
F
2.2.2.
Select or create a new patient
See the Welch Allyn CardioPerfect Workstation user manual for detailed information on
selecting or creating a new patient.
2.2.3.
Create a new exercise ECG
Before you can record an exercise ECG, you first need to create a new ECG in Welch Allyn
CardioPerfect. When you do this, you will be able to set the target heart rate, and the
exercise, blood pressure and print protocols. You can also identify the physicians associated
with the test and enter a variety of test data and information.
LL
V1 V2
V3
V4 V5 V6
RA
LA
RL
N
F
C1 C2
C3
C4 C5 C6
R
L
