CardioPerfect Workstation
Exercise ECG Module - User Manual
DIR 80012335 Ver. E 51 / 83
Examples
If you select...
In phase... You see...
Blood pressure Exercise All blood pressure measurements that were entered during
the Exercise phase, but no blood pressure measurements
that were recorded during the Pretest, Recovery or Posttest
phases.

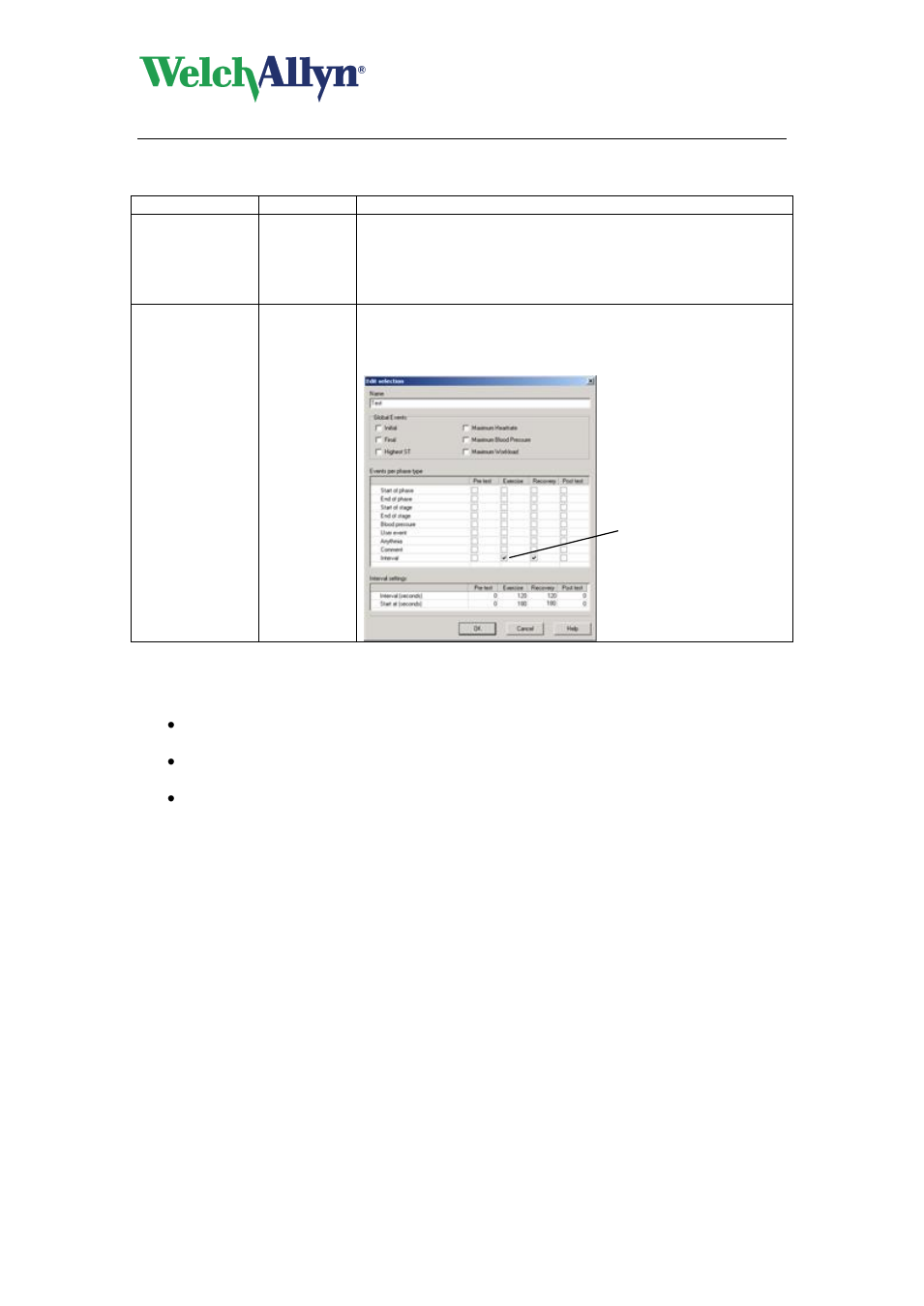

Interval
Interval = 120
Start at = 180 Recovery An event at 3 minutes (=180 seconds), 5 minutes (Start time
with interval time added = 180 seconds + 120 seconds), 7
minutes (previous + 120 seconds), etc. after the start of the
Recovery phase.
Display of selections
For each event identified by a selection, Welch Allyn CardioPerfect Exercise ECG creates the
following displays:
In the 2x6 or 4x3 view: there will be a waveform display representing the time when
the event occurred
In the ST table view: the will be a line of ST measurement data associated with the
event
In the Averages view: there will be a set of averages associated with the event
7.3 Exercise ECG settings- Printing tab
Use the Printing tab to configure the automatic printing settings.
The Printing tab contains the following options:
Printing during test
These settings can still be changed when you create a new exercise ECG. New print
protocols can be added using the Protocol editor see page 60.
Protocol Here you can select if a report should be printed at the end of each
stage, manually triggered or according to a user defined protocol.
Print format From this list, you can select the printing protocol that is used for
printing during recording.
Grid From this list, you can select the grid style used for the printouts
during the test. The grid style used for printouts after recording is
set separately (see the Default report formats section below)
Interval checkbox
