HPO-5074 1 Installation Guide
Installation Guide
CEP/MEP-4xxxV Actuator Quick-Mount Valve Adapter
HPO-5074
Assembly 1
Actuator Mounting 2
Maintenance 2
Cross-Reference 2
Important Notices 2
Assembly
NOTE: If a VFB-4____BC is ordered, this kit is
already installed on the valve body—
proceed to Actuator Mounting section on
the next page!
NOTE: Only CEP-4703V and MEP-4xxxV actuators
can be used with this adapter. They have
an attached handle and shaft as well as a
plastic mounting bracket on the bottom of
the actuator.
NOTE: See the relevant MEP-4xxx series data sheet
for valve date code and actuator replace-
ment information.
1. Assemble the kit (as shown in Illustrations 1
through 4) to the valve body by installing the
two appropriate screws from the kit through the
adapter’s valve base into the two holes of the
valve body. Be sure the valve base, the yellow
high-pressure indicator (if present), and the
“T” or “—” engraved in the valve stem are all
oriented properly as shown in Illustration 2 and
3! Two-way valve bodies should be full open,
and three-way bodies should be positioned for
A-AB flow.
NOTE: The two shorter machine screws with the
Philips heads are for the (VSI) steam-
rated valve bodies (VFB-4303_SX or
VEB-4303_SDL valves). The two longer
machine screws with the hex heads are for
the regular (Griswold) valve bodies (VFB-
4____BX or VEB-4____B__ valves).
NOTE: If desired for space reasons, the valve base
can be installed at a 90° degree angle by
removing the two existing screws in the
valve body and reinstalling them in the
positions 90° from the original position.
After assembly, the actuator will be at a 90°
angle from the pipe.
2. To prevent the locking bail/clip from being lost in
future use, attach the beaded tie around the valve
bonnet and attach the other end in the hole of the
bail.
3. See the Actuator Mounting section for mounting
the actuator on the assembled valve body.

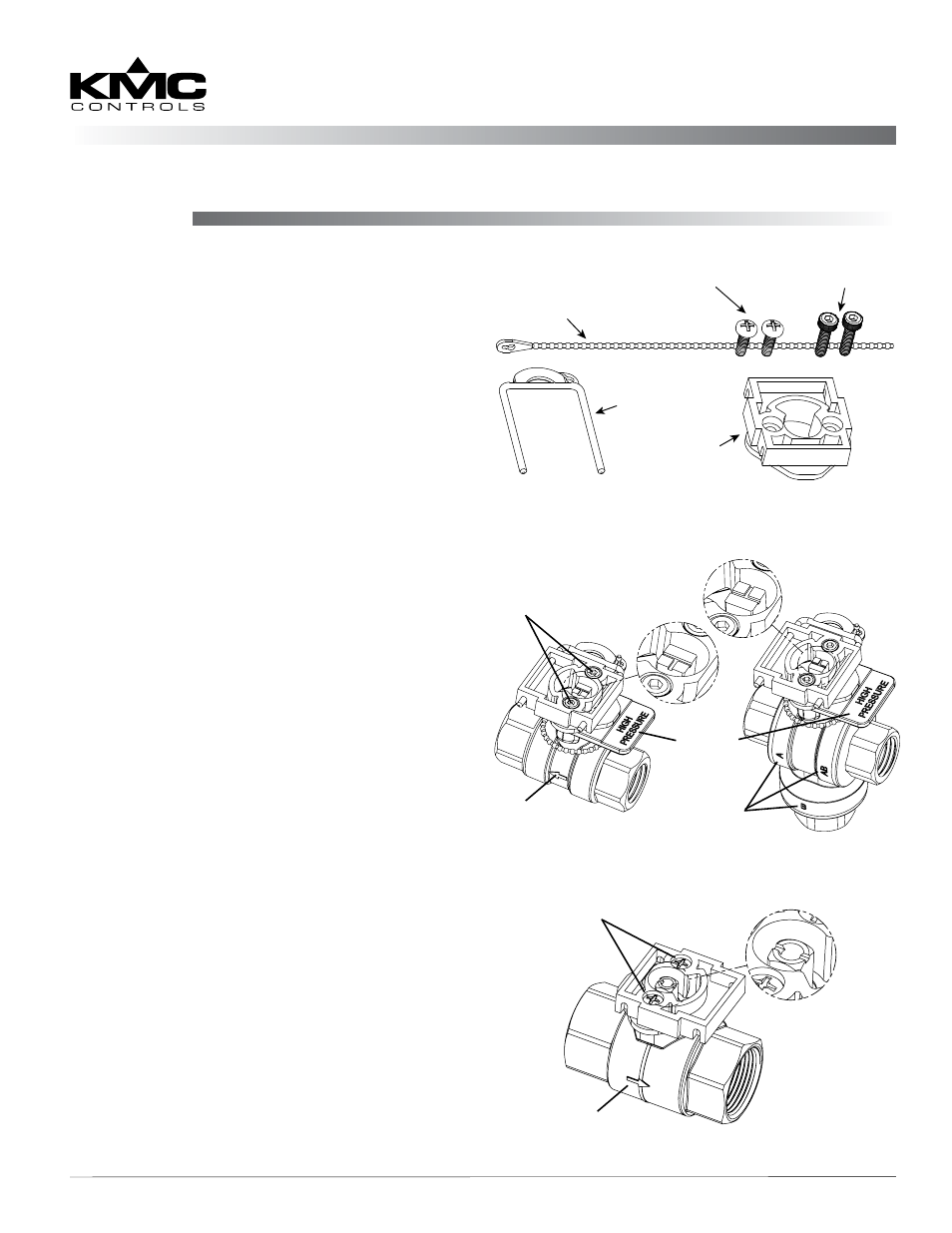

Illustration 1—HPO-5074 Adapter Parts
Stem “T”
for 2-way
Stem “ T ”
for 3-way
T
High
Pressure
Indicator
Flow Indicator Ports Indicators
Screws
Illustration 2—Valve Body and Base Orientation (Griswold)
Illustration 3—Valve Body and Base Orientation (VSI)
Stem “—”
Flow Indicator
Screws
