HPO–5211/5212/5213

1

Installation Guide

Mounting

Linkage to Barber-Colman Valves

1. Thread 1/4-28 jam nut (1) onto valve stem (5) until

3/8" of valve stem is above the nut.

2. Thread stem extension (2) onto valve stem (5) and

tighten against jam nut (1).

3. Thread nut (3) as far as possible onto stem extension

(2).

4. Place flat washer (4) on top of nut (3) (on HPO–5211

and HPO–5212 linkage only).

5. Screw linkage (6) onto valve. Tighten aluminum

bonnet adaptor (8) against valve mounting nut (13).

6. Thread 2 setscrews (7) in evenly until screws contact

flats on brass bonnet. Do not fully tighten screws to

flats on bonnet.

7. Loosen 2 screws (12) and rotate linkage (6) to

desired position in relation to valve body. Tighten 2

screws (12).

8. While facing lever (9), rotate lever counterclockwise

until connecting rod (10) contacts lower stem nut (3).

9. Thread upper stem nut (11) onto stem extension (2)

until 1/16" to 1/8" of stem extension is visible above

nut (11).

10. Rotate lever (9) clockwise to lift connecting rod (10)

up and around flats on upper stem nut (11).

11. While holding connecting rod (10) with wrench

to keep from twisting, tighten lower stem nut (3)

against connecting rod.

12. Rotate lever (9) until valve stem is in full up

position. Loosen setscrews on lever hub and

reposition so that the end of the lever handle is just

inside the left side of the linkage housing. Tighten 2

setscrews on lever hub.

13. Proceed to appropriate actuator mounting

instructions.

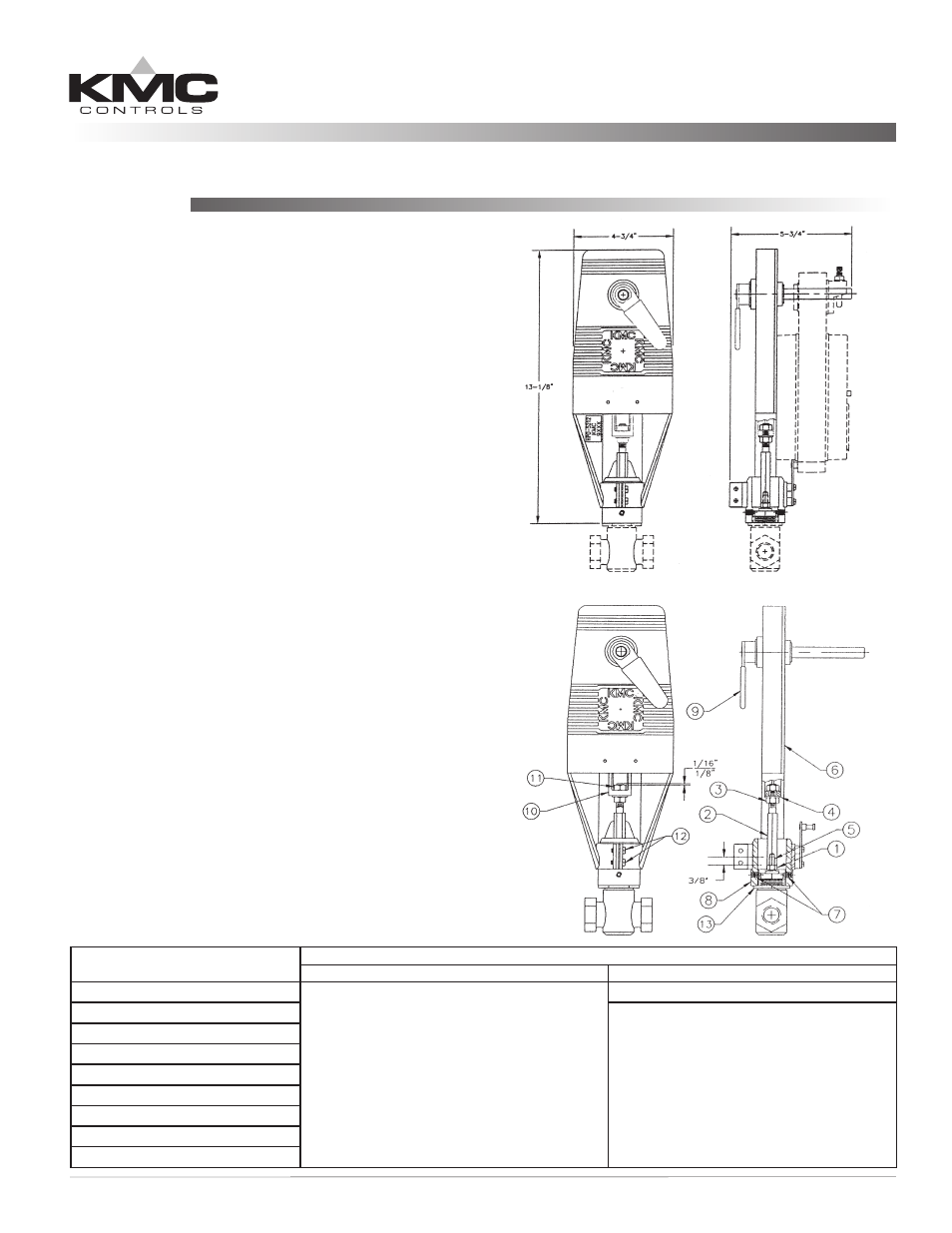

Installation Guide

Valve-Actuator Linkage Kit

HPO–5211/5212/5313

Dimensions in

inches (mm)

Barber-Colman Valve Models

Valve Sizes (

Medium temperature must not exceed 250° F)

1/2" to 1-1/4"

1-1/2" to 2"

VB-111-0-3-1 through VB-111-0-3-9

Use the HPO-5211 if using the MEP–5000 actuators.

Close-Offs = 1/2" @ 81#

3/4" @ 81#

1" @ 56#

1-1/4" @ 30#

OR

Use the HPO-5212 if using the MEP–1200 actuators.

Close-Offs = 1/2" @ 362#

3/4" @ 362#

1" @ 288#

1-1/4" @ 178#

Not Available

VB-921X-0-4-1 through VB-921X-0-4-11

Use the HPO–5213 with the MEP–1200 actuators.

Close-Offs = 1-1/2" @ 66#

2" @ 32#

VB-922X-0-4-1 through VB-922X-0-4-11

VB-9253-0-4-1 through VB-9253-0-4-11
VB-9263-0-4-1 through VB-9263-0-4-11
VB-9273-0-4-1 through VB-9273-0-4-11
VB-9283-0-4-1 through VB-9283-0-4-11

VB-931X-0-4-1 through VB-931X-0-4-11

VB-9323-0-4-1 throughVB-9323-0-4-11
