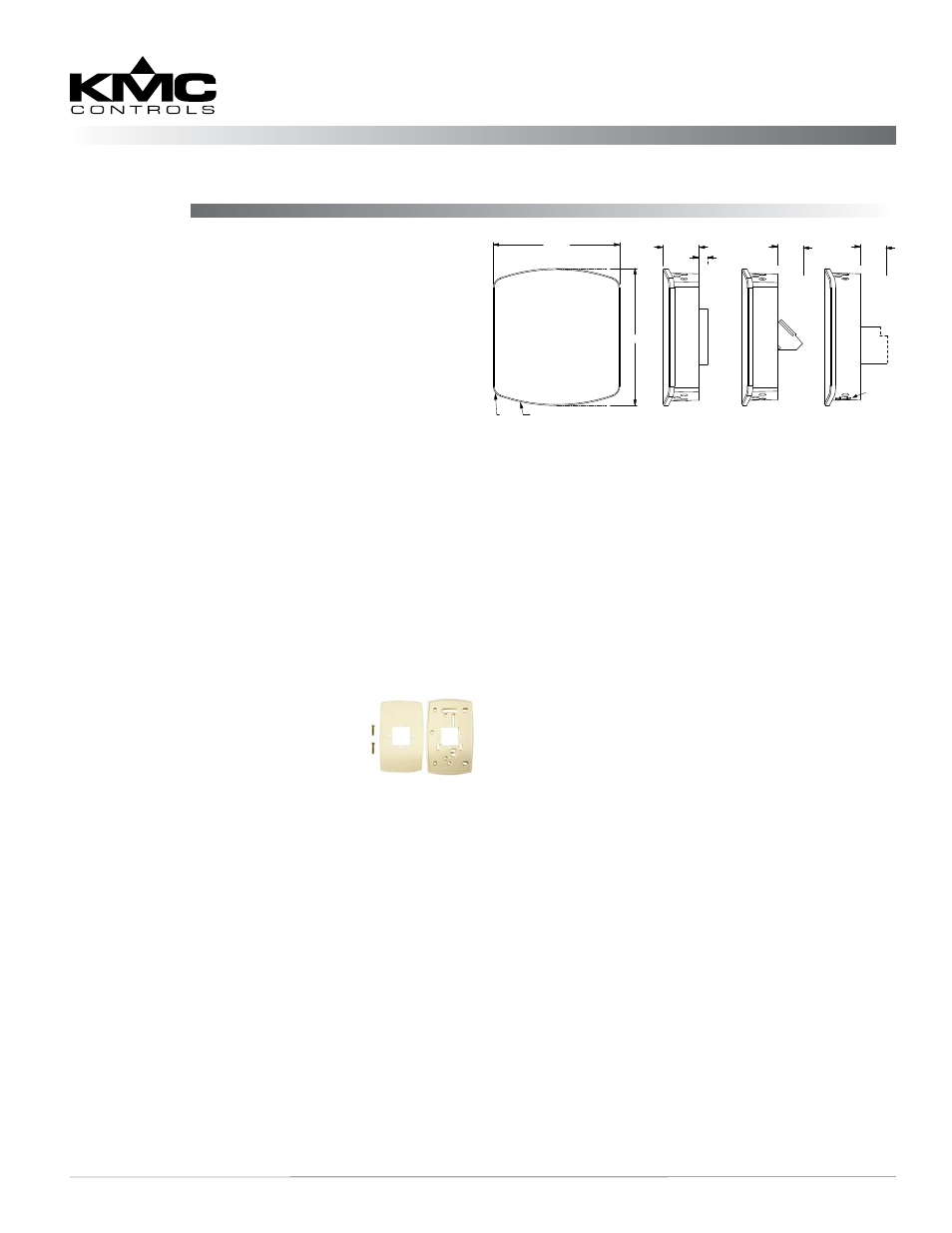

STE-6010/6011/6013/6015 Room Temperature Sensors
1
Installation Guide
2.438
2.250
R 3.094
R .187
.643
.450
STE-6013
STE-6011
.475
max.
STE-6010/6015
Modular
RJ-45
Jack
Four-pin
EIA-485
PC Data
Port
Clamp
(Screw-type)
Terminals
Clamp
(Screw-type)
Terminals
.149
Installation Guide
Room Temperature Sensors
STE-6010/6011/6013/6015
Maintenance 2
More Information 2
Mounting
mended, and the size of the holes will then need
adjusting.)
4. Connect the wiring (see the Wiring section).
5. Reinstall the cover.
STE-6011 Only
Handy Box Installation (Recommended)
1. Mount a universal backplate HMO-6036/6036W
to the handy box using the two screws provided.
2. Remove the cover from the black base (see the
Location and Cover Removal section).
3. Connect the wiring (see the Wiring section).
4. Attach the base to the backplate using two screws.
5. Check that leads to the thermistor are straight
and the thermistor is completely extended.
6. Reinstall the cover.
Hollow Wall Installation
1. Remove the cover from the black base (see the
Location and Cover Removal section).
2. Use the back panel as a template to drill two holes
for mounting screws (7/64 inches or 3 mm in di-
ameter and 1.4 inches, 1-13/32 inches, or 35.6 mm
apart) and to cut a center hole (7/8 inch or 20 mm)
for the terminal block or jack.
3. Connect the wiring (see the Wiring section).
4. Attach the black base to the wall using two #6
self-threading screws. (Plastic anchors are recom-
mended, and the size of the holes will then need
adjusting.)
5. Check that leads to the thermistor are straight
and the thermistor is completely extended.
6. Reinstall the cover.
All dimensions
are in inches
Location and Cover Removal
Install the sensor on an inside wall where it can sense
the average room temperature and be away from
direct sunlight, heat sources, windows, air vents,
and air circulation obstructions (curtains, furniture,
etc.). It can be mounted on a hollow wall or (with
an HMO-6036/6036W universal backplate) to a 2 x 4
inch electrical (handy) box.
The cover is held to the black base by three round
pegs that fit in the holes of the cover. The bottom peg
is on a tab and snaps into the center bottom hole.
1. With a small Phillips screwdriver or hex wrench,
press in and hold the plastic tab button that
snaps into the center hole on the bottom of the
cover. Do not use excessive force and deform or
break the tab.
2. Carefully pull the cover from the black base.
STE-6010/6013/6015 Only
Handy Box Installation (Recommended)
1. Mount an HMO-6036 or HMO-
6036W universal backplate to the
handy box using the two screws
provided.
2. Remove the cover from the black base (see the
Location and Cover Removal section).
3. With the plastic tab button on the bottom, attach
the base to the universal backplate using the two
screws provided.
4. Connect the wiring (see the Wiring section).
5. Reinstall the cover.
Hollow Wall Installation
1. Remove the cover from the black base (see the
Location and Cover Removal section).
2. Using the base as a template, drill two holes for
mounting screws (7/64 inches or 3 mm in diam-
eter and 1.4 inches, 1-13/32 inches, or 35.6 mm
apart) and cut a center hole (size needed is depen-
dent on model) for the terminal block or jack.
3. Attach the base to the wall using two #6 self-
threading screws. (Plastic anchors are recom-
