Enclosure
© 2005 KMC Controls Inc. 717-035-18B
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com
Specifications
Media compatibility
17–4 PH stainless steel
Supply Voltage 24 VAC or 15 to 30 VDC
Supply Current 35 mA, maximum @ 24VDC
Output Signal 4 to 20mA, 0 to 5 or 0 to 10
VDC, field selectable
Pressure Ranges Field selectable:
TPE–1483–1 0 to 5/10/25/50 psig/d
TPE–1483–2 0 to 10/20/50/100 psig/d
TPE–1483–3 0 to 50/100/250/500 psig/d
Proof Pressure Max. 2X F.S. range
Burst Pressure Max. 5X F.S. range
Accuracy ±1% F.S. combined linearity,
hysteresis, and repeatability.
Range 4 accuracy ±2% F.S.
Pressure cycles > 100 million
Surge Damping normal 4-second averaging,
slow 8-second averaging,
switch selectable
Sensor Operating Range -40° to 220°F (-40° to
105°C)
Temperature Compensation Error
32° to 130°F (0° to 55°C)
Long term stability±0.25% typical (1 year)
Zero Adjust
pushbutton auto-zero and
digital input
Operating Environment
32° to 122°F (0° to 50°C), 10
to 90% RH, non-condensing
Fittings 1/8" NPT female

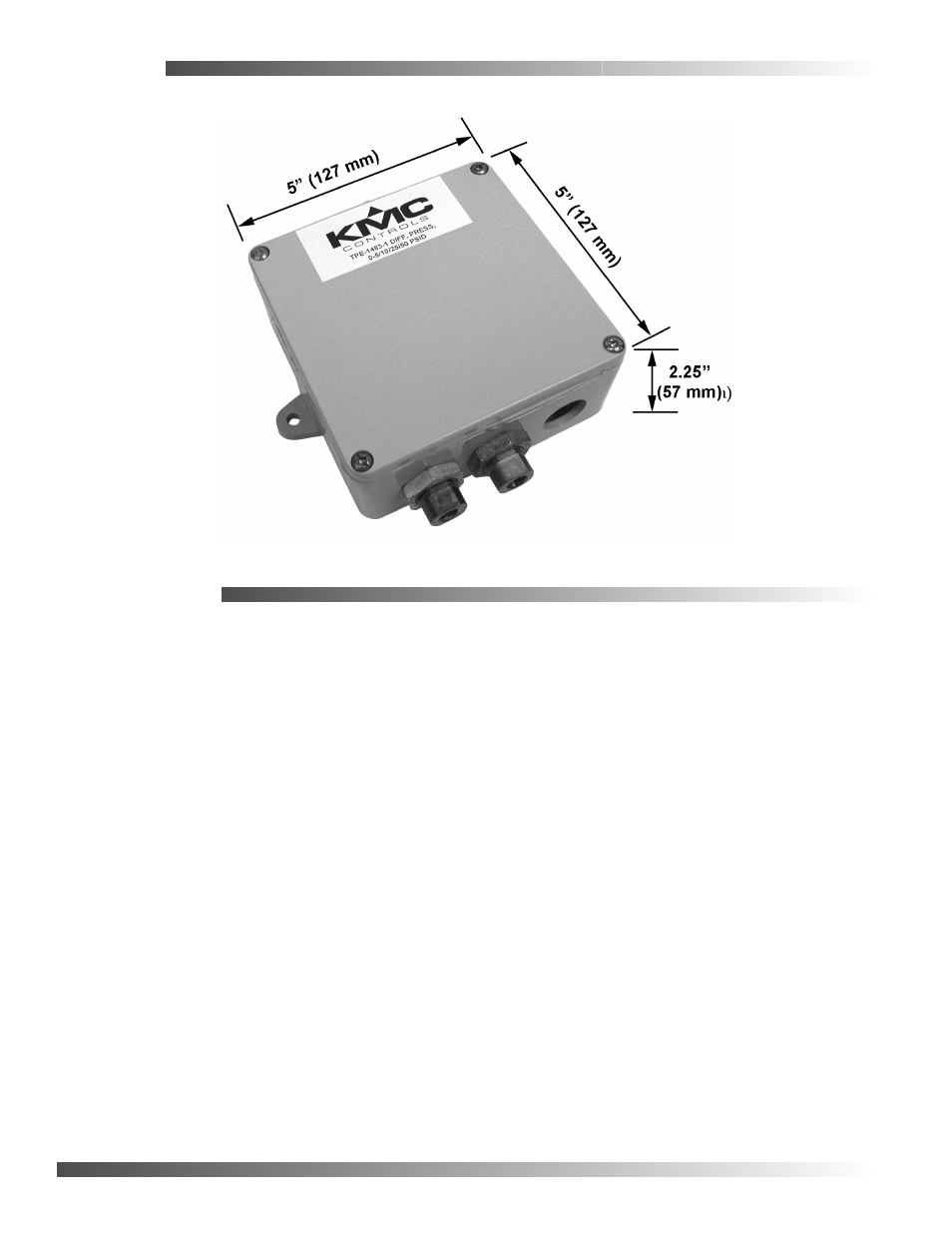

Enclosure 5" x 5" x 2.25" (127mm x
127mm x 57mm);
IP 54 (NEMA 4)
Shock 100G, 11 mSec, 1/2 sine
Vibration 20G peak 20 to 2400 Hz
Weight 1.33 lbs. (.60 kg)
