CSP-5001/5002

3

Installation Guide

Controller Testing

Test the CSP-500x actuator’s motor operation:
1. Temporarily disconnect the thermostat reset

connection at Terminal “IN”.

2. Jumper “IN” terminal to the “16 VDC” terminal.

The green Open LED should illuminate. The shaft

drive hub should be rotating the damper open.

The damper should go to full open unless the

maximum limit was set at the CSP-500x, and then

the damper will only go to the maximum setting.

If the damper is rotating closed, the “Close”

jumpers must be changed. Refer to the Rotation

Setup section.

3. Jumper “IN” terminal to the “–” terminal. The

red Close LED should illuminate. The shaft

drive hub should be rotating the damper closed.

The damper should go to full closed unless the

minimum limit was set at the CSP-500x, and then

the damper will only go to the minimum setting.

If the damper is rotating open, the “Close”

jumpers must be changed. Refer to Rotation

Setup section.

Specifications

Supply Voltage

24 VAC (–15/+20%), 50/60 Hz,

Class 2 only (4 VA max.)

Output Supply

16 VDC (22 mA) to thermostat

Output Torque

50 in-lb. min., 70 in-lb. max.

Velocity Range

0 to 3300 fpm, dependent on

DP pickup, tubing size/length,

and connections

Signal Output

0 to 10 VDC (0 to 100% flow)

Signal Input

0 to 10 VDC (from thermostat)

Min./Max. Limits

Adjustable, 0 to 100%

Angular Rotation

0° to 95° (both end stops

adjustable)

Stroke Time

18° per minute @ 60 Hz

Temperature Limits

Operating

32 to 120° F (0 to 49° C)

Shipping

–40 to 140° F (–40 to 60° C)

More Information

For complete specifica-

tions and list of acces-

sories, see the

CSP-

5001/5002 Data Sheet

on

the KMC web site.

For system testing

guidelines, sample

applications, and other

information about usage

with the CTE-5100 series

thermostats, see the

CSP-5001/5002 Applica-

tion Guide

.

For information about

connections and usage

with newer CTE-5202

thermostats, see the

CTE-5202 Applications

Guide

.

NOTE: For system testing guidelines and sample

applications, see the

CSP-5001/5002

Application Guide

.

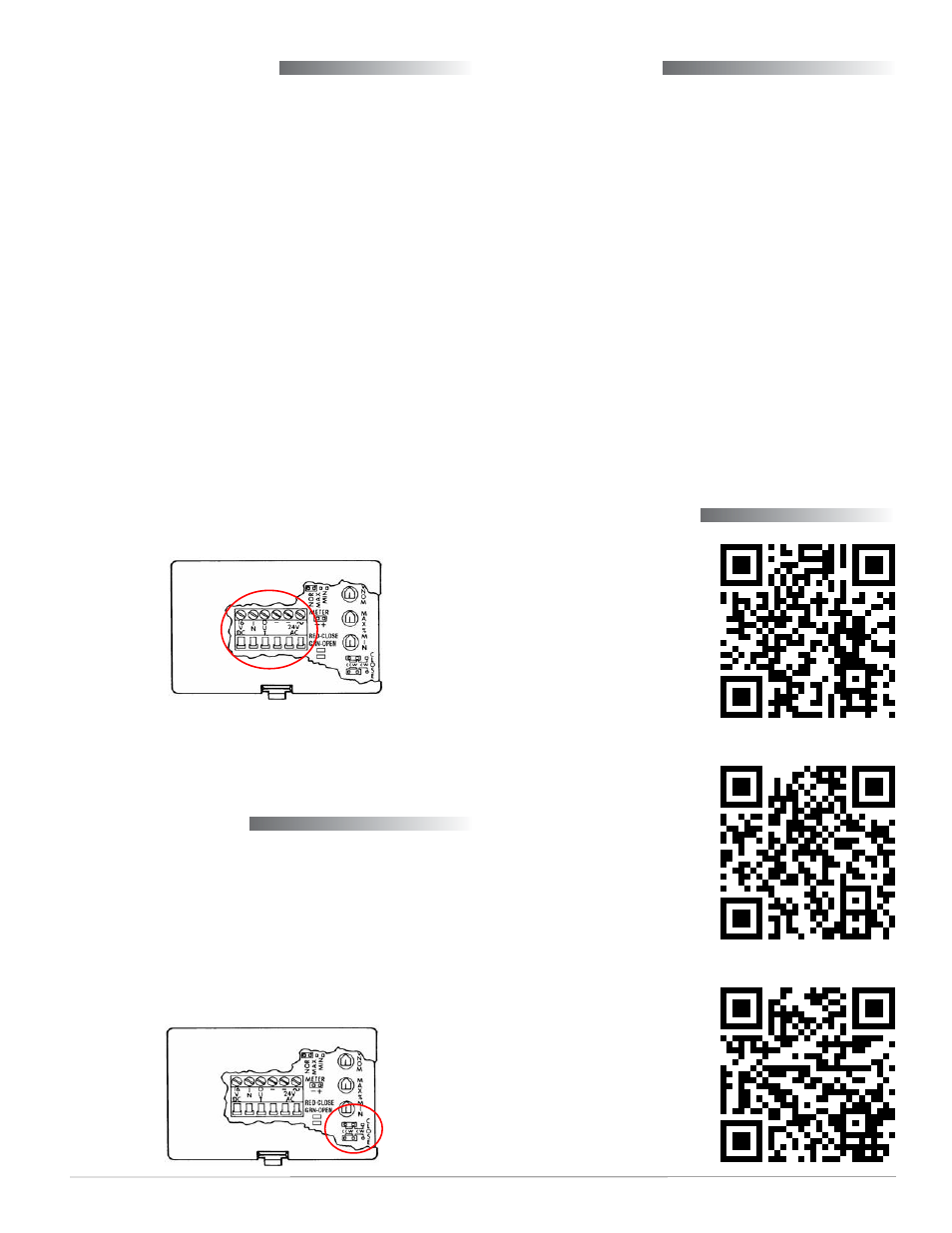

Rotation Setup

The CSP-5001 is factory-set for CCW to close. The
CSP-5002 is factory-set for CW to close. To reverse
the rotation direction of either controller model:

1. Remove the access door by pulling back on the

door’s tab and lifting upward.

2. Position both jumpers in either the CW or CCW

positions as needed. See the diagram.
