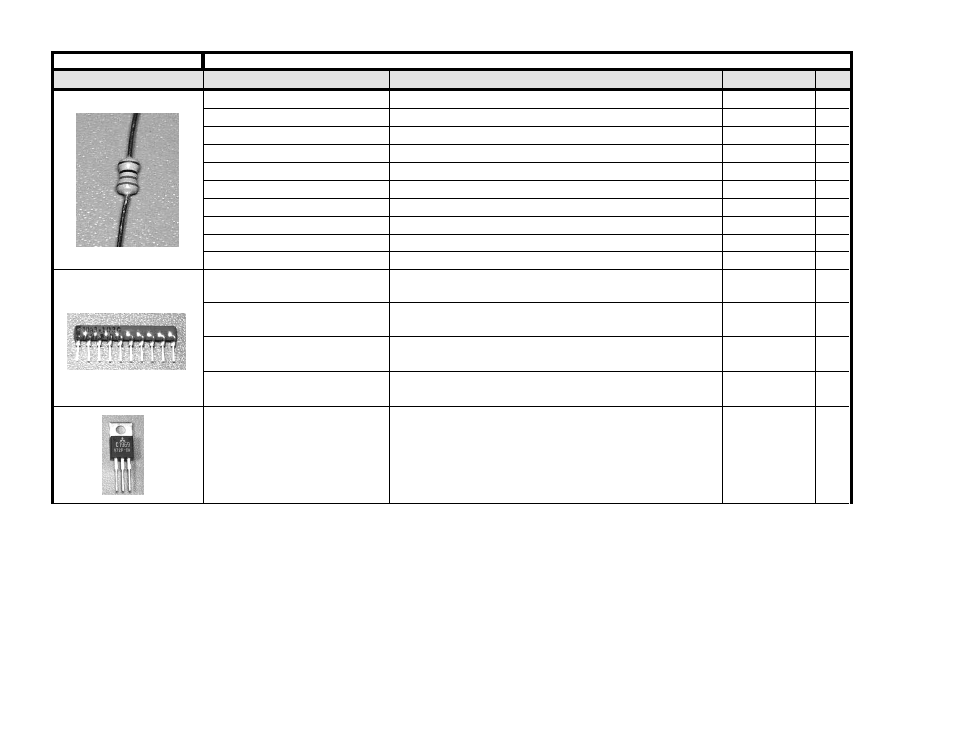

Appendix A K1 RF Board Parts List
PICTURE Designators Description Part Number
QTY
R10, R33 470 Ω, 1/4W, 5%; color code: yellow-violet-brown E500003 2
R7 680 Ω, 1/4W, 5%; color code: blue-gray-brown E500040 1
R12, R28 820 Ω, 1/4W, 5%; color code: gray-red-brown E500001 2
R1, R26, R27, R39 1.8 k, 1/4W, 5%; color code: brown-gray-red E500004 4
R5, R6, R9, R14, R21, R24 2.7 k, 1/4W, 5%; color code: red-violet-red E500005 6
R4 5.6 k, 1/4W, 5%; color code: green-blue-red E500007 1
R20 20 k, 1/4W, 5%; color code: red-black-orange E500041 1
R19 39 k, 1/4W, 5%; color code: orange-white-orange E500042 1
R2, R25, R34 100 k, 1/4W, 5%; color code: brown-black-yellow E500006 3
R13 2.2 M, 1/4W, 5%; color code: red-red-green E500043 1
RP1, RP2
100 k SIP resistor pack, 8 pins, 4 resistors
p/n 8A3104G (alt: 77083104, L83C104, etc.)
E510018 2
RP4, RP5
3.9 k SIP resistor pack, 6 pins, 3 resistors
p/n 6A3392G (alt: 77063392, L63C392, etc.)
E510008 2
RP6
27 k SIP resistor pack, 6 pins, 3 resistors
p/n 6A3273G (alt: 77063273, L63C273, etc.)
E510009 1
RP3
47 k SIP resistor pack, 10 pins, 5 resistors
p/n 10A3473G (alt: 770103473, L103C473, etc.)
E510007 1
U5 LM2930T-8, 8-volt regulator; TO-220 package E600018 1
