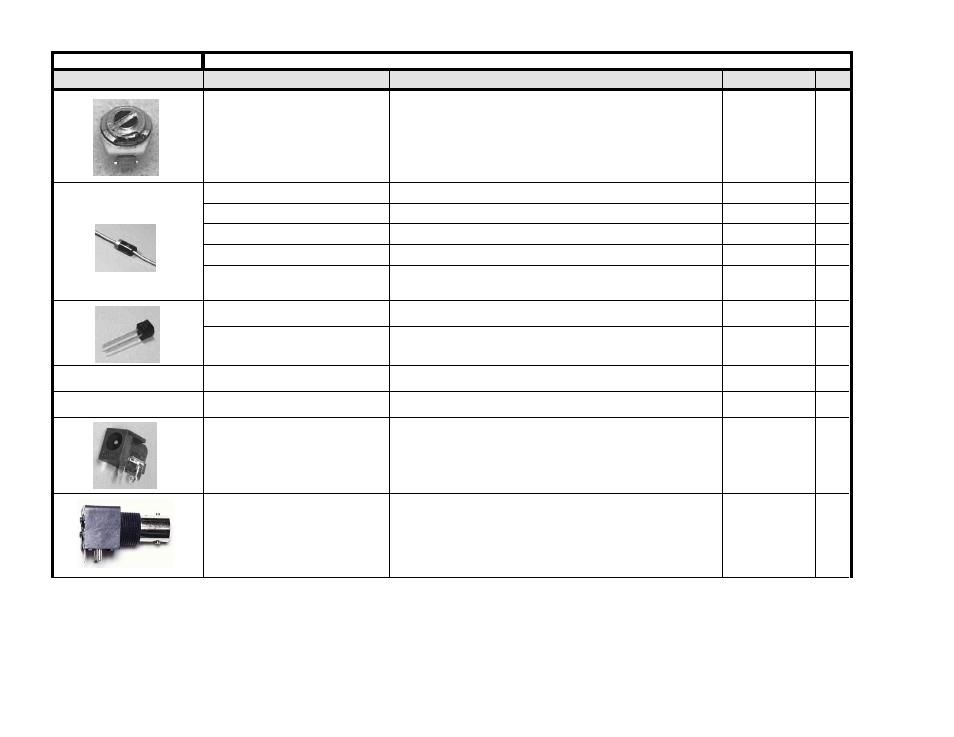

Appendix A K1 RF Board Parts List
PICTURE Designators Description Part Number
QTY
C13, C20 Ceramic trimmer capacitor, 8-50pF E530000 2
D2, D15 1N5711 Shottky diode, small glass pkg E560004 2
D5, D9-D14, D18 1N4007 PIN diode, large plastic pkg, black E560001 8
D19 1N4753 zener diode, 36 V, 1 watt E560007 1
D1, D17 1N4148 switching diode, small glass pkg E560002 2
D16
SB530 Shottky diode, 5A, very large plastic pkg (black)
(alternate: 1N5821)
E560003 1
D4 MV209 E560006 1
D3, D6, D7, D8 1SV149; TO-92 pkg E560005 4
J6, J7, J8 8-pin 0.1" conn., female; Samtec SSW-108-01-G-S. E620005 3
J1 Supplied with noise blanker option (KNB1) E620005 0
J4 2.1 mm DC barrel connector E620026 1
J5 BNC jack E620020 1
