65
CHAPTER 3

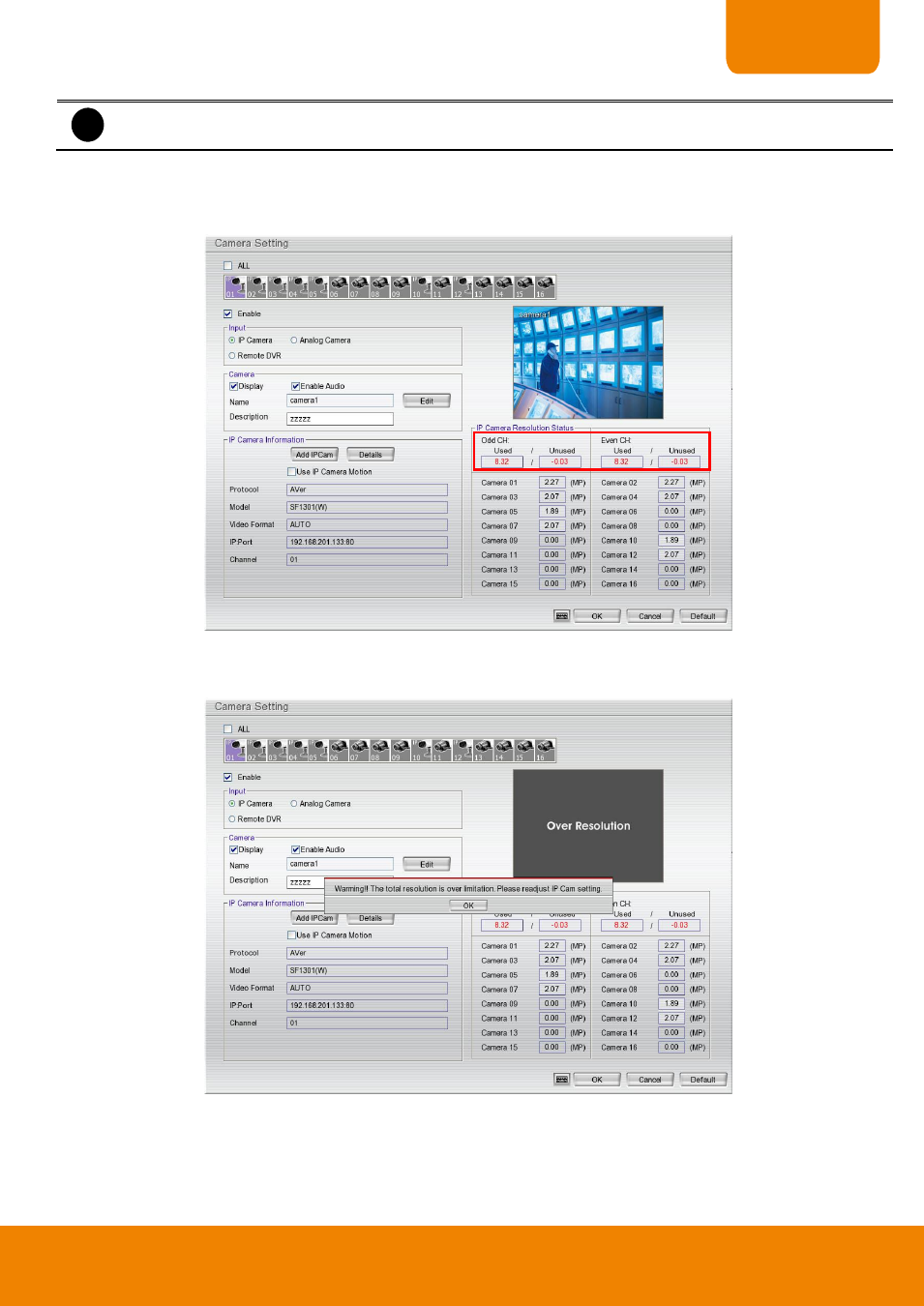

(6) IP Camera Resolution Status
i
The total resolution values are including both IP camera channel and Remote DVR channel.
It displays the each IP camera channel
’s current resolution value that is calculated and transformed by DVR
system. The 16 MP is divided into 8MP each for odd and events channels. When the total resolution value is
over 8MP, the Used and Unused value text is displayed in red color.
If user ignores or doesn’t notice the resolution is over 8MP and click OK button to save the setting, then, a
warning message dialog is shown up. Only resolution values are less or equal 8MP, the DVR system allows
user to save the setting.
