9
CHAPTER 1

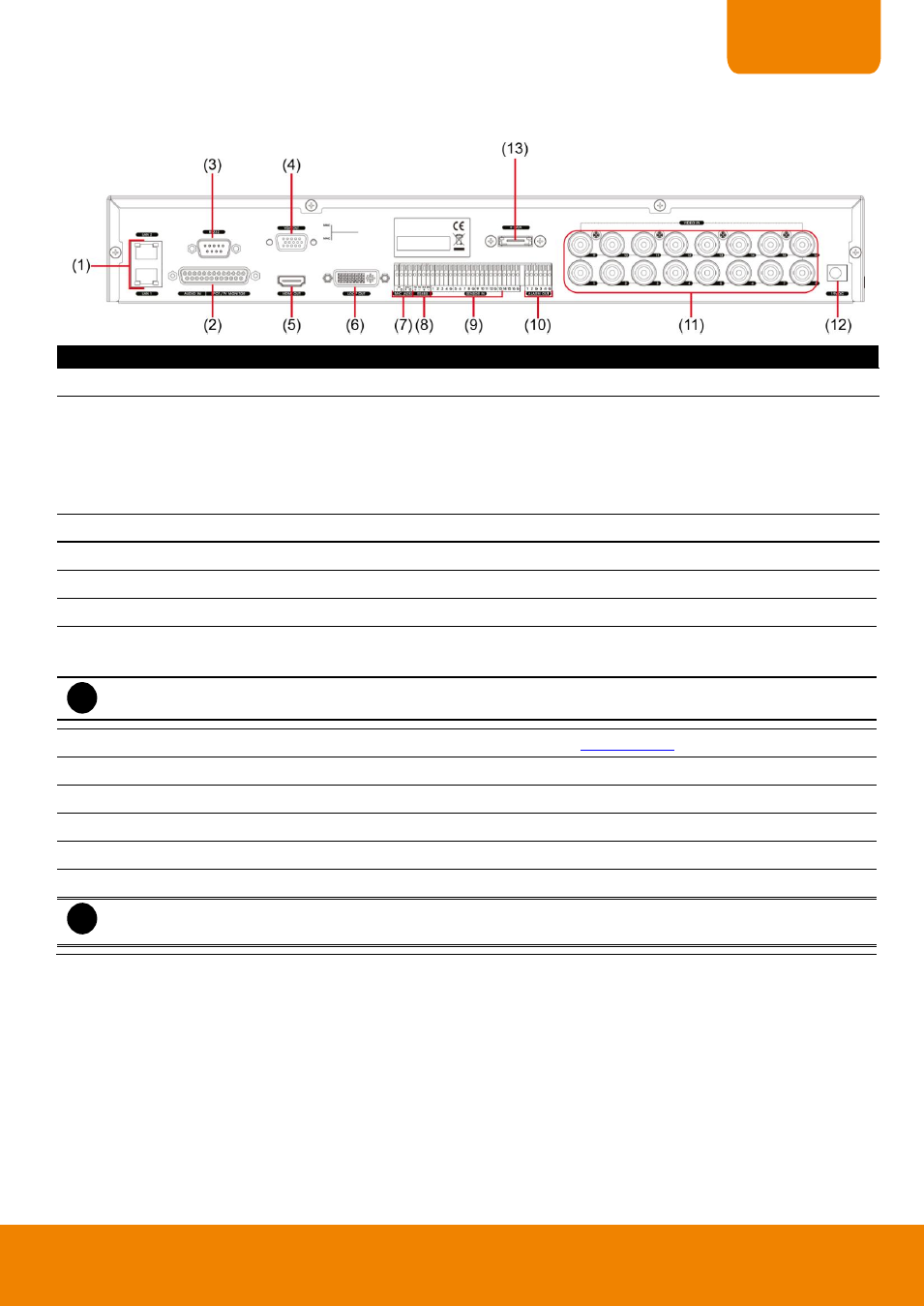

1.3.3 EH6216H
+
(HDMI supported)
Name Function
(1) LAN 1/LAN 2 port For Gigabit Ethernet connection
(2) Audio IN/SPOT/TV
Monitor
- Audio input (red connector): 16 channels (sticker 1~16). To connect with camera’s
audio cable.
- Spot Monitor (sticker 2 on cable): 1 spot output. Outputs the analog video signals to
Spot monitor when receive the alarm events.
- TV output (sticker 1 on cable): 1 TV output. Output the video signal to a TV.
(3) VGA Out Output the video signal to a CRT or LCD monitor
(4) RS232 port For POS device connection
(5) HDMI port Output the video signal to TV/HDMI monitor.
(6) Video Loop Out Output the analog video signal to a CCTV monitor.
(7) MIC/Audio MIC: To connect the microphone.
Audio: For audio output device connection, such as speaker.
i
The audio input and output device has its own power supply is necessary.
(8) RS485 For analog PTZ camera connection (also see Chapter 1.4.3 ).
(9) Sensor In Support up to 16 sensor devices
(10) Relay Out Support 4 relay devices (Relay: 1A @ 125V AC/30V DC).
(11) CH1~ 16 Input the video camera signal and display it on channel 1~ 16.
(12) 19V DC connector Connect the power adaptor into this port.
(13) eSATA port For connecting with HDD or RAID.
i
When connecting eSATA device, please make sure the DVR has installed hard disk to reduce abnormal
situation occurs.
