14
1.4.2 Connecting Devices
1.4.2.1
EH6108H
+
The back panel of the DVR unit, user can connect up to 8 cameras in both analog and IP camera. The DVR
unit also can connect 16 sensor devices, 4 alarm devices, and output video to a TV or CRT/LCD monitor.

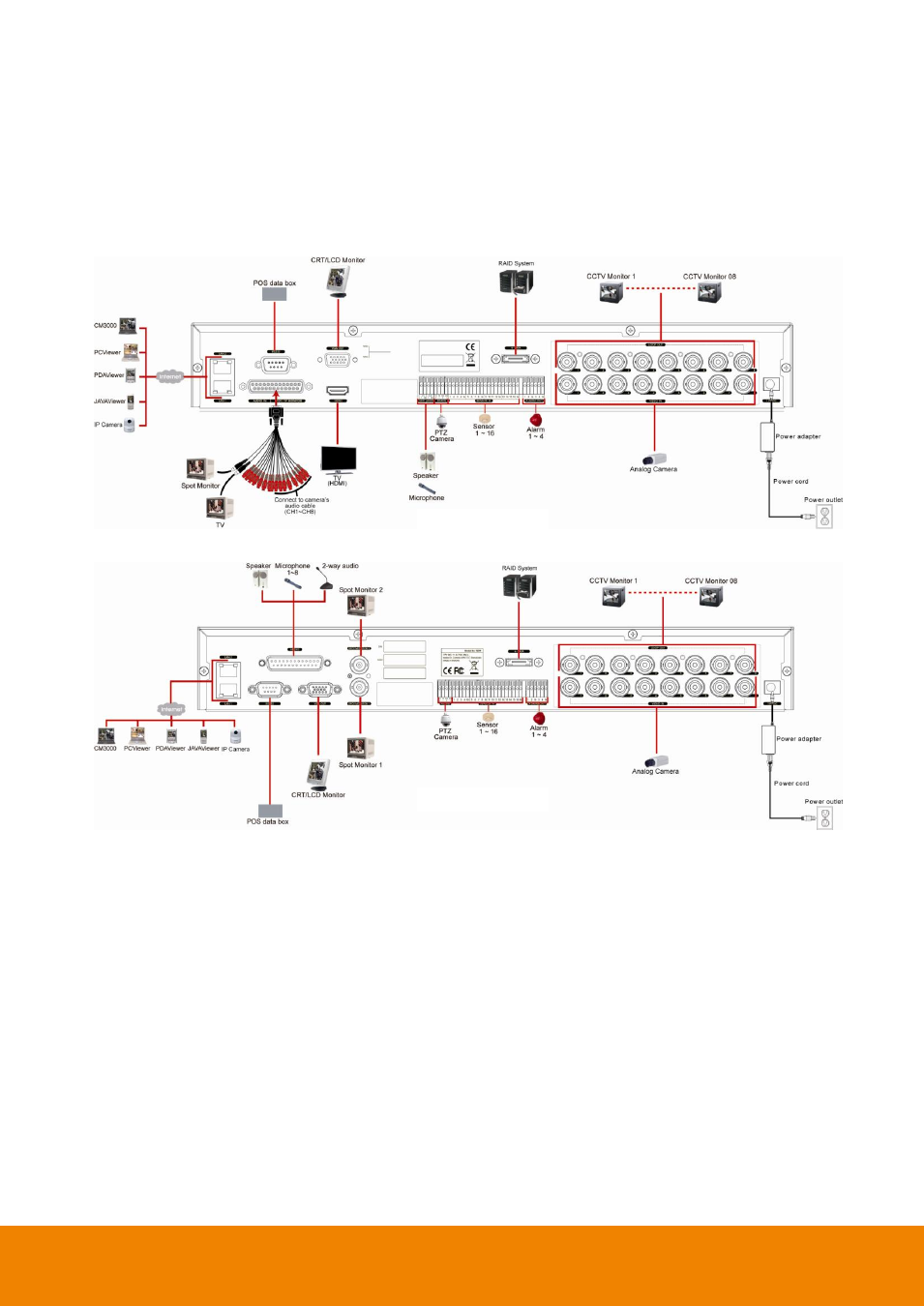

Follow the illustration below to make the connection:
EH6108H
+
with HDMI
EH6108H
+
w/o HDMI
