READING/INPUT SCALE & OFFSET MODE
DISPLAY READING VALUES
(y = ax + b)
MP.SC.OF IN.SC.OF Rd.SC.OF Yrd = (SCALE).Xin + (OFFSET)
disable
disable
enable disable
enable
disable enable
disable
disable RS.Xin + RO
IS.Xin + IO
MS.Xin + MO
disable
enable
enable enable
enable
disable enable
disable
enable RS.(IS.Xin + IO) + RO
IS.(MS.Xin + MO) + IO
RS.(MS.Xin + MO) + RO
enable enable enable RS.[IS.(MS.Xin + MO) + IO] + RO
Table 18-2. Reading / Input Scale & Offset Calculation Table

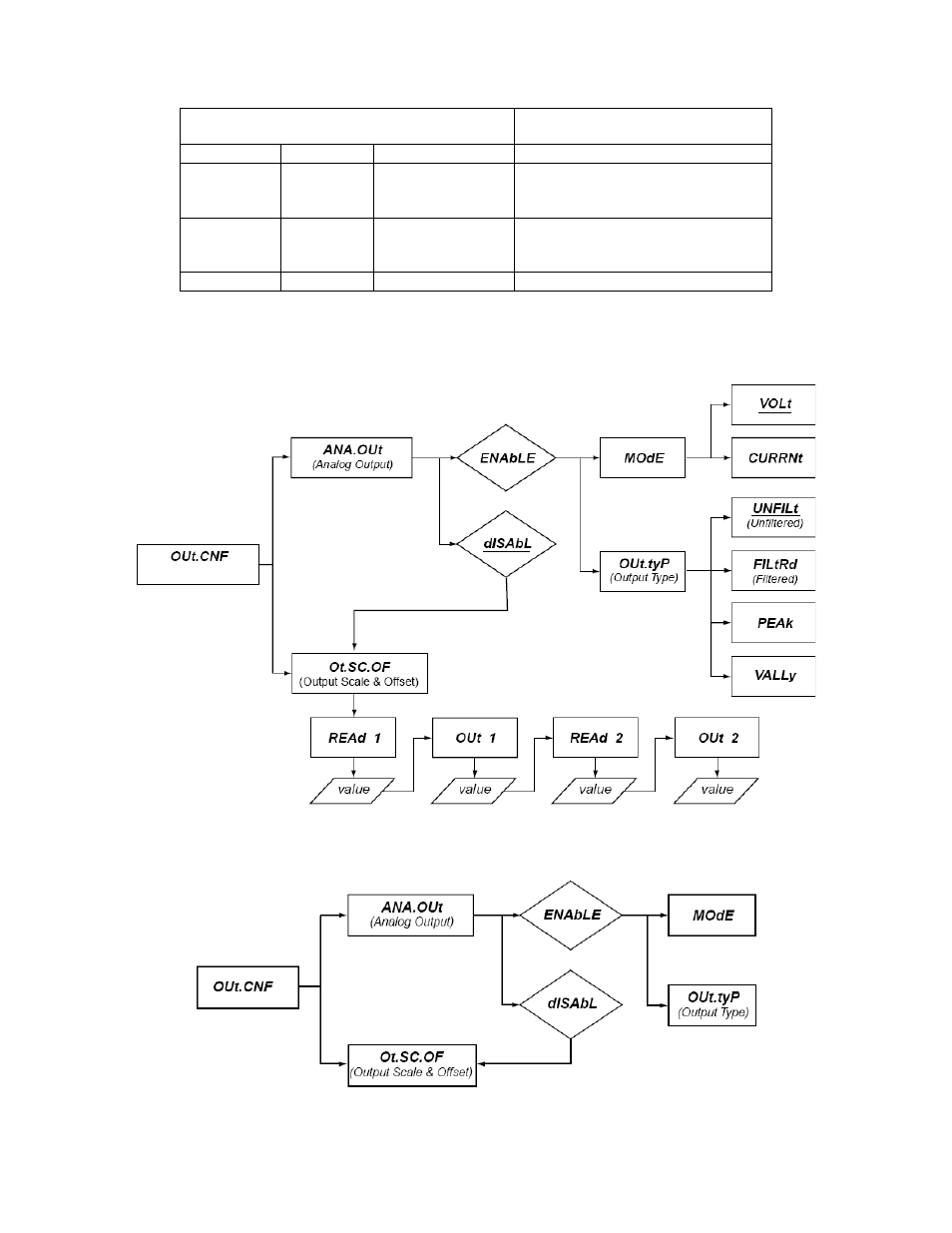

19.0 OUTPUT CONFIGURATION MENU FLOWCHART
20.0 OUTPUT CONFIGURATION MENU: (OUT.CNF)
