Adjustment.
*The following Step 17 is a safety measure to prevent unintentional calibration.
Press ‘▲/MAX’ 17) Display still shows "CAL 0" Submenu.
Press ‘RESET/ENTER’ 18) Display shows "StOREd" stored message (meaning the calibration is complete)
momentarily and advances to "IN.SC.OF" Input Scale & Offset configuration Submenu.
In case of "bRIdGE" input type:
Press ‘RESET/ENTER’ 19) Display shows "bRdG.LM" Bridge Limit function menu.
Press ‘RESET/ENTER’ 20) Display flashes "NORMAL" or the previous setting.
Press ‘▲/MAX’
21) Scroll the available options of setting: "NORMAL" or "SP1.L.2.H" (Setpoint 1 value
would be lower overload limit and Setpoint 2 would be upper overload limit) for your choice
of setting.
Press ‘RESET/ENTER’ 22) Display advances to "RAt IO" Ratiometric input reading or measurement setup menu. If
a change was made, the controller will also show "StOREd" stored message momentarily.
Press ‘RESET/ENTER’ 23) Display flashes "dISAbL" or previous setup option.
Press ‘▲/MAX’
24) To select either "ENAbLE" or "dISAbL" for your choice of setup.
Press ‘RESET/ENTER’ 25) Display advances to "IN.SC.OF" Input Scale & Offset Configuration Submenu or
measurement setup menu. If a change was made, the controller will also show the
"StOREd" stored message momentarily.

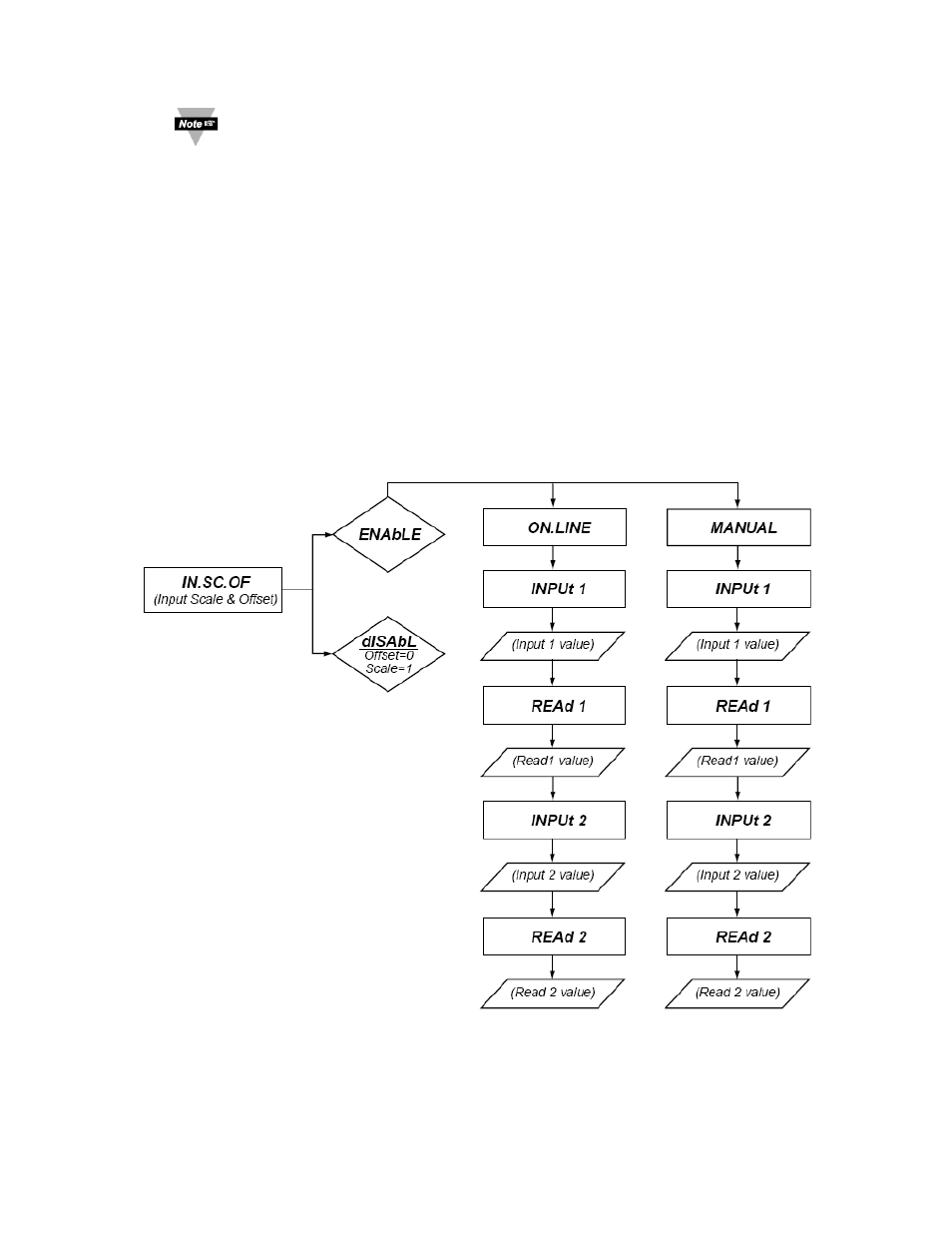

16.4 IN.SC.OF Enter INPUT SCALE & OFFSET CONFIGURATION Submenu:
Press ‘RESET/ENTER’ 26) Display flashes "dISAbL" (default) or previous selection.
Press ‘▲/MAX’
27) To select either "ENAbLE" or "dISAbL" for your choice of setup.
Press ‘RESET/ENTER’ 28) Select "ENAbLE", display flashes "ON.LINE" (default) or previous selection.
Press ‘▲/MAX’
29) To select either "ON.LINE" or "MANUAL" for your choice of Input Scale & Offset
Configuration.
