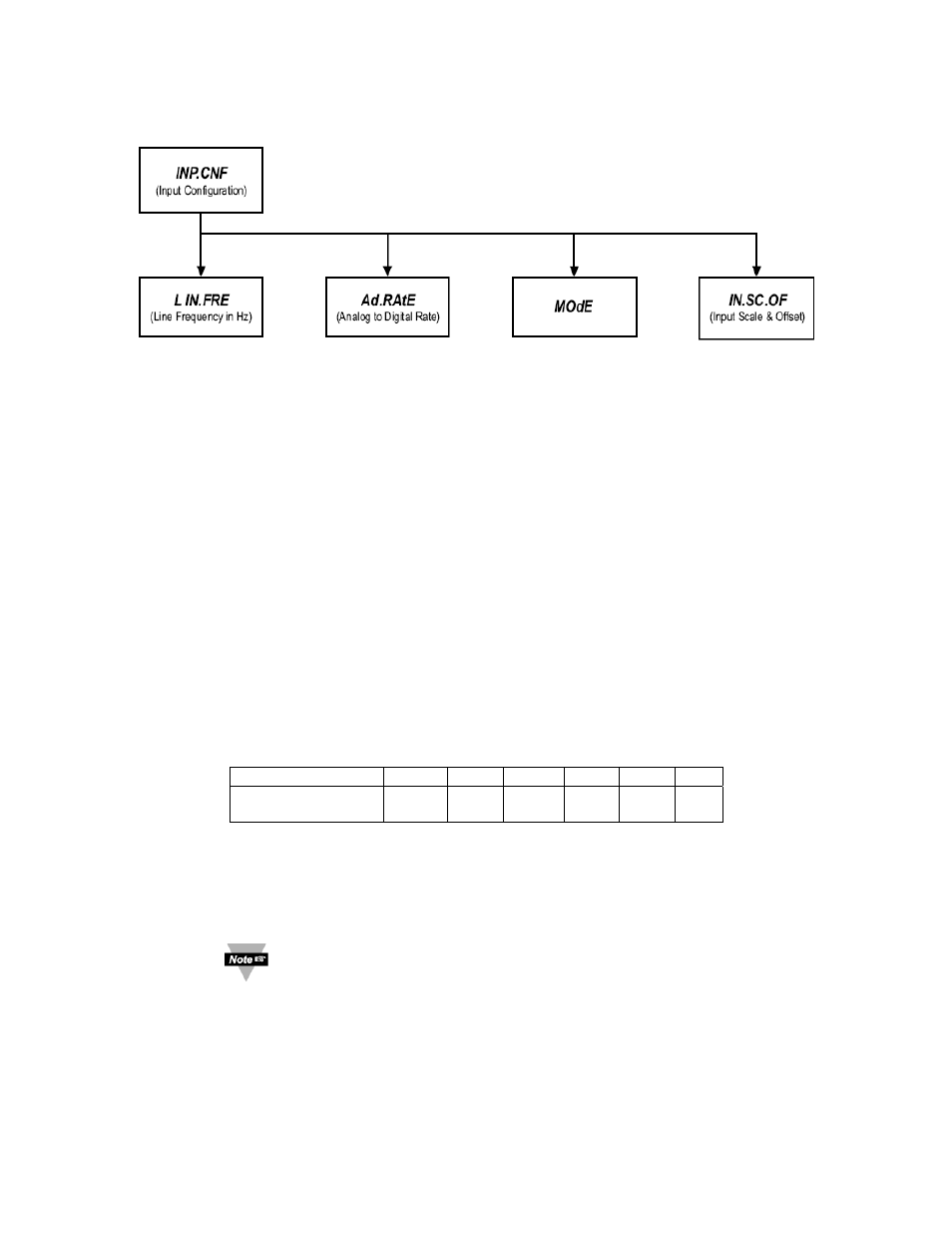

16.0 INPUT CONFIGURATION MENU: (INP.CNF)
INP.CNF ENTER INPUT CONFIGURATION MENU:
Press ‘MENU’ 1) Three times though Main Menu items and display shows "INP.CNF".
Press ‘RESET/ENTER’ 2) Display shows "L IN.FRE" Line Frequency submenu.
Press ‘MENU’ 3) Scroll through the following sequence of available Input Configuration Menu selection
menu: "L IN.FRE", "Ad.RAtE", "MOdE", and "IN.SC.OF" (Line Frequency, Analog to
Digital Rate, Input Mode and Input Scale & Offset).
16.1 L IN.FRE Enter POWER LINE FREQUENCY SELECTION Submenu:
To enter POWER LINE FREQUENCY SELECTION Submenu if display shows "L
IN.FRE".
Press ‘RESET/ENTER’ 4) Display shows flashing "60" in Hz (default) or previous frequency selection.
Press ‘▲/MAX’
5) Scroll through the 2 supported selections to the Frequency of your power line type:
"60" or "50" Hz.
Press ‘RESET/ENTER’ 6) Display advances to "Ad.RAtE" Analog to Digital Rate Submenu. If a change was
made, the controller will also show "StOREd" stored message momentarily.
16.2 Ad.RAtE Enter ANALOG TO DIGITAL RATE Submenu:
Press ‘RESET/ENTER’ 7) Display flashes "0" or previous selection.
Press ‘▲/MAX’ 8) Scroll through the 6 available selections as 0, 1, 2, 3, 4, and 5 for your choice of
selection. Refer to below Table for your specific application conversion speed. Only Rate
0 and 1 can reject 60 Hz / 50 Hz noise. Refer to Table 33-1 in Specification Section for
different input and outputs types.
Rate 0 1 2 3 4 5
Time for 60hz(ms)
Time for 50Hz(ms) 134.9
161.9 68.2
81.9 34.9
41.9 18.2
21.9 9.9
11.9 5.7
6.9
Table 16-1. A/D (Analog to Digital) Rate Option Table
Press ‘RESET/ENTER’
9) Display advances to "MOdE" Input Mode Configuration Submenu. If a change was
made, the controller will also show "StOREd" stored message momentarily.
16.3 MOdE Enter INPUT MODE CONFIGURATION Submenu:
This submenu is only accessible if "tC" Thermocouple or "bRIdGE"
Bridge is your selection of input type.
