6.3 VOLTAGE/PROCESS VALUE Input:

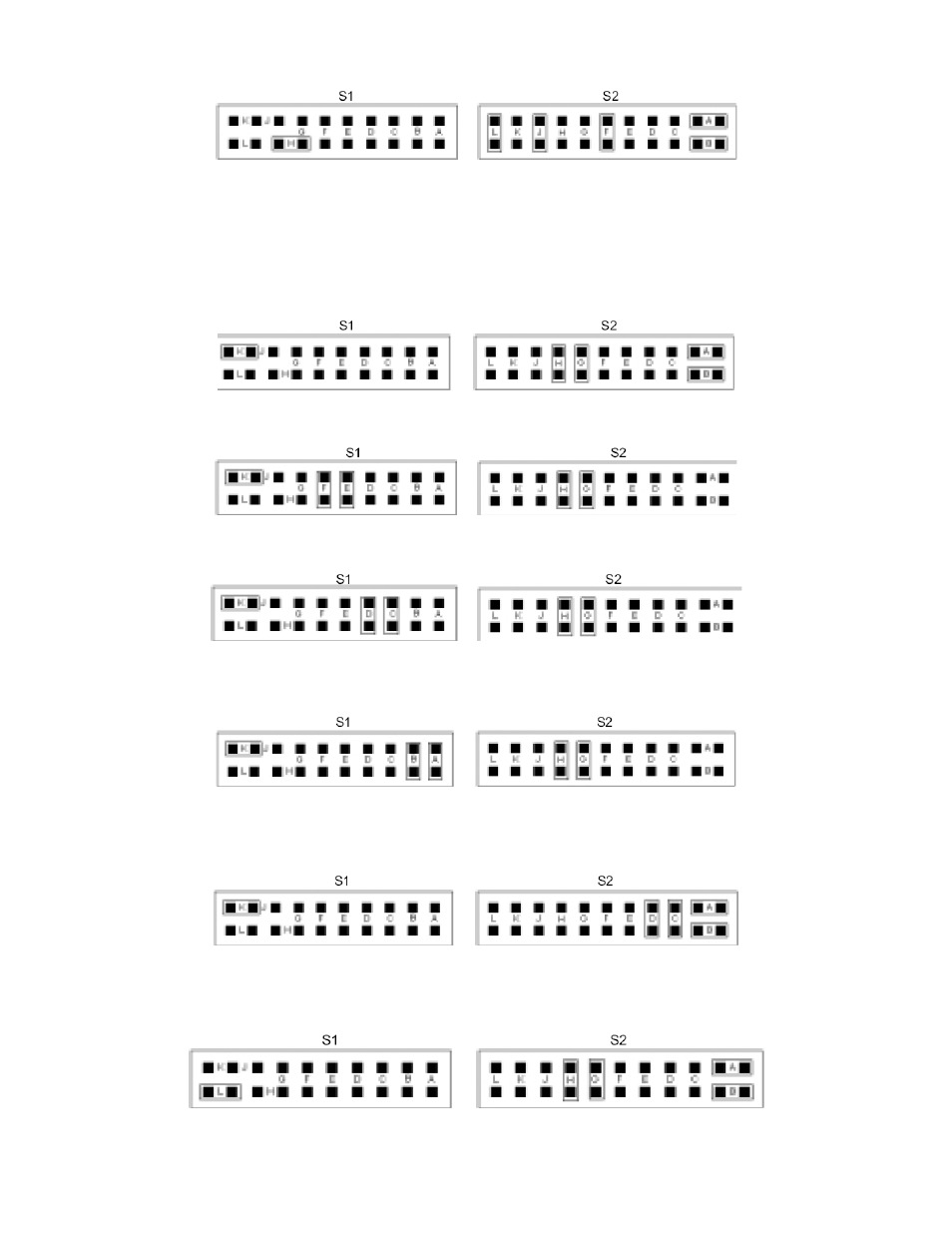

6.3.1 For ± 50mV, 0-100mV ranges:
S1_K; S2_A/B/G/H, jumpers are closed as shown:
NOTE: For some applications, the internal excitation is required; install jumpers G and H on S2 (as factory preset). If the
external excitation is used, then remove jumper G only. These configurations are also applied to other Voltage/Process
Input ranges.
6.3.2 For ± 500mV, 0-1V ranges:
S1_K/E/F; S2_G/H, jumpers are closed as shown:
6.3.3 For ± 5V, 0-10V ranges:
S1_K/C/D; S2_G/H, jumpers are closed as shown:
6.3.4 For ± 50V, 0-100V ranges:
S1_K/A/B; SD2_G/H, jumpers are closed as shown:
6.4 CURRENT/PROCESS VALUE Input:
6.4.1 For 0-20mA or 4-20mA range:
S1_K; S2_A/B/C/D, jumpers are closed as shown:
6.5 BRIDGE Input:
6.5.1 For ± 50mV, 0-100mV ranges with Internal Excitation:
S1_L; S2_A/B/G/H, jumpers are closed as shown:
