Mark & Limit Menu

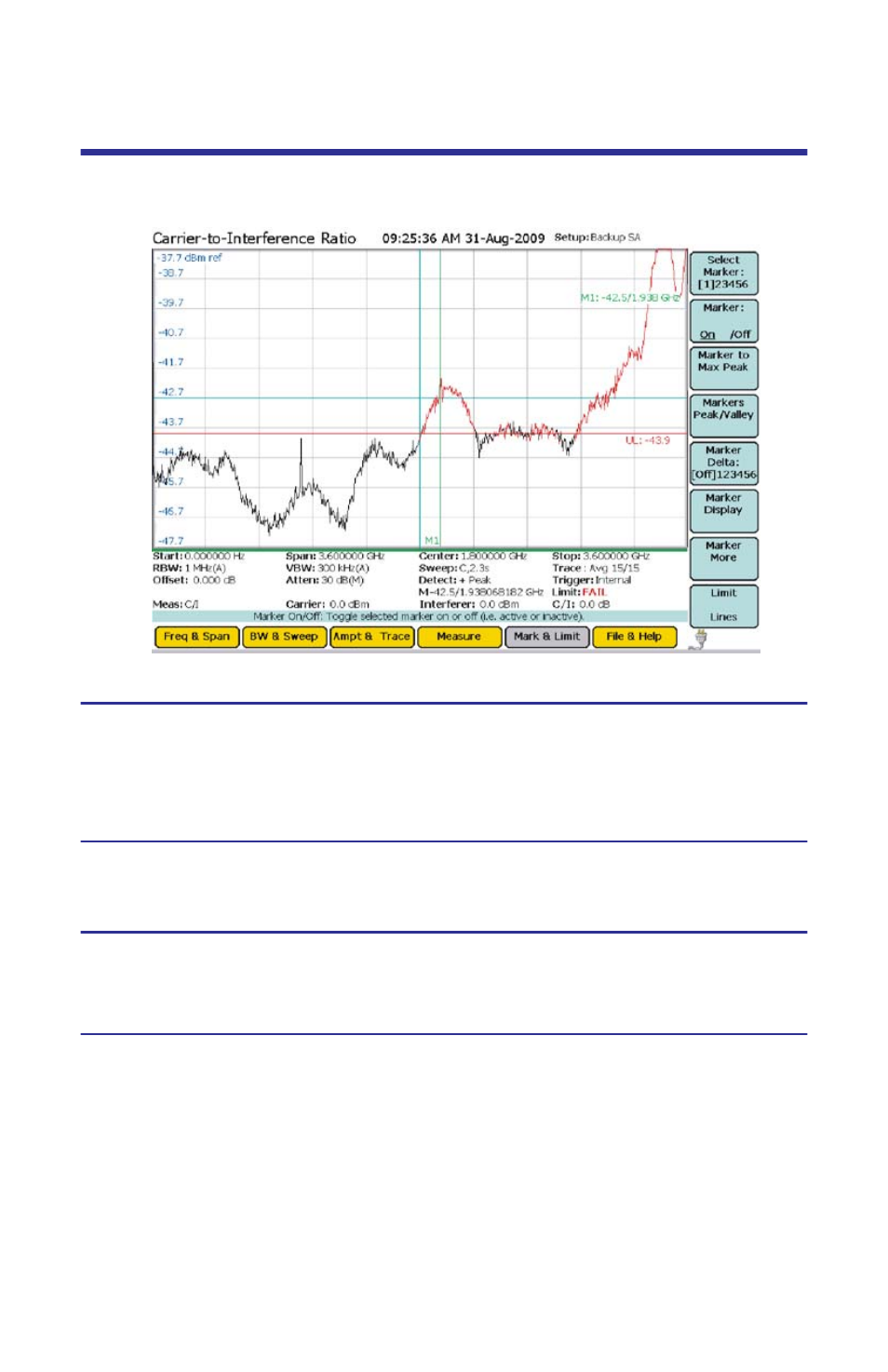

Figure 57 Example, Mark & Limit Menu

Select Marker

Changes the active marker. There are six markers to choose from
(measurements that use some of the markers for data display have less selectable
markers). Pressing the soft key will cycle through each of the six markers.

Marker On / Off

Turns a Marker on and off.

Marker to Max Peak

Moves the active marker to the highest point on the trace.

Markers to Peak/Valley

Markers Detect
Toggles the functionality of the submenu between finding peaks or finding valleys.

Threshold Offset
Raises a signal above the noise floor. This filters out low level peaks allowing for
a clear reading.
