Loss
Applies an offset to compensate for cable loss.

Note:

Changing this setting cancels any selection on the Cable List

and changes that setting to “None.”

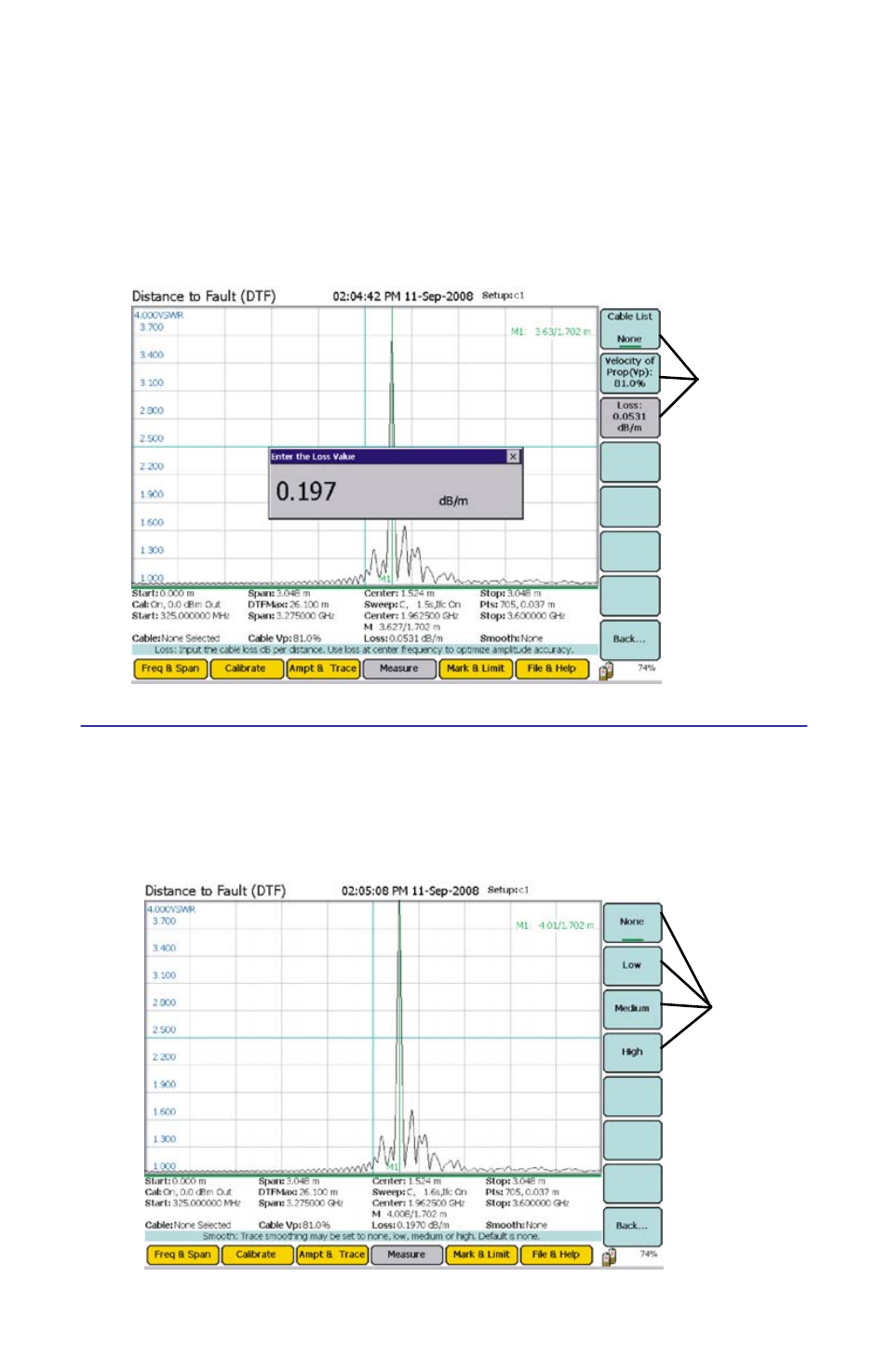

Figure 36 Example, Distance-to-Fault - Cable Setting - Cable Loss

Smooth

Smoothes the trace line on the display. It can be set to one of four
tolerances: None, Low, Medium, and High.

Figure 37 Example, Distance-to-Fault - Smooth
