Add to Lower Limit Line
Adds a limit line to the graph.
First click will create a point on the graph with a line.
Second click will create another point that connects to the first point
via a line.
Third click connects to the second, and so on
Delete Markers or Limit Lines
Deletes a marker, a limit line, or a point on a limit line. When deleting points, the icon
will change to an eraser graphic when the icon floats over something that can be
deleted.
Option Dialog Box
Opens the pop-up Option Dialog box. "Options Dialog Box (View>Options)" on
page 105.
Measurement Types
The measurement types for that file are displayed, depending on the type of file
being read.

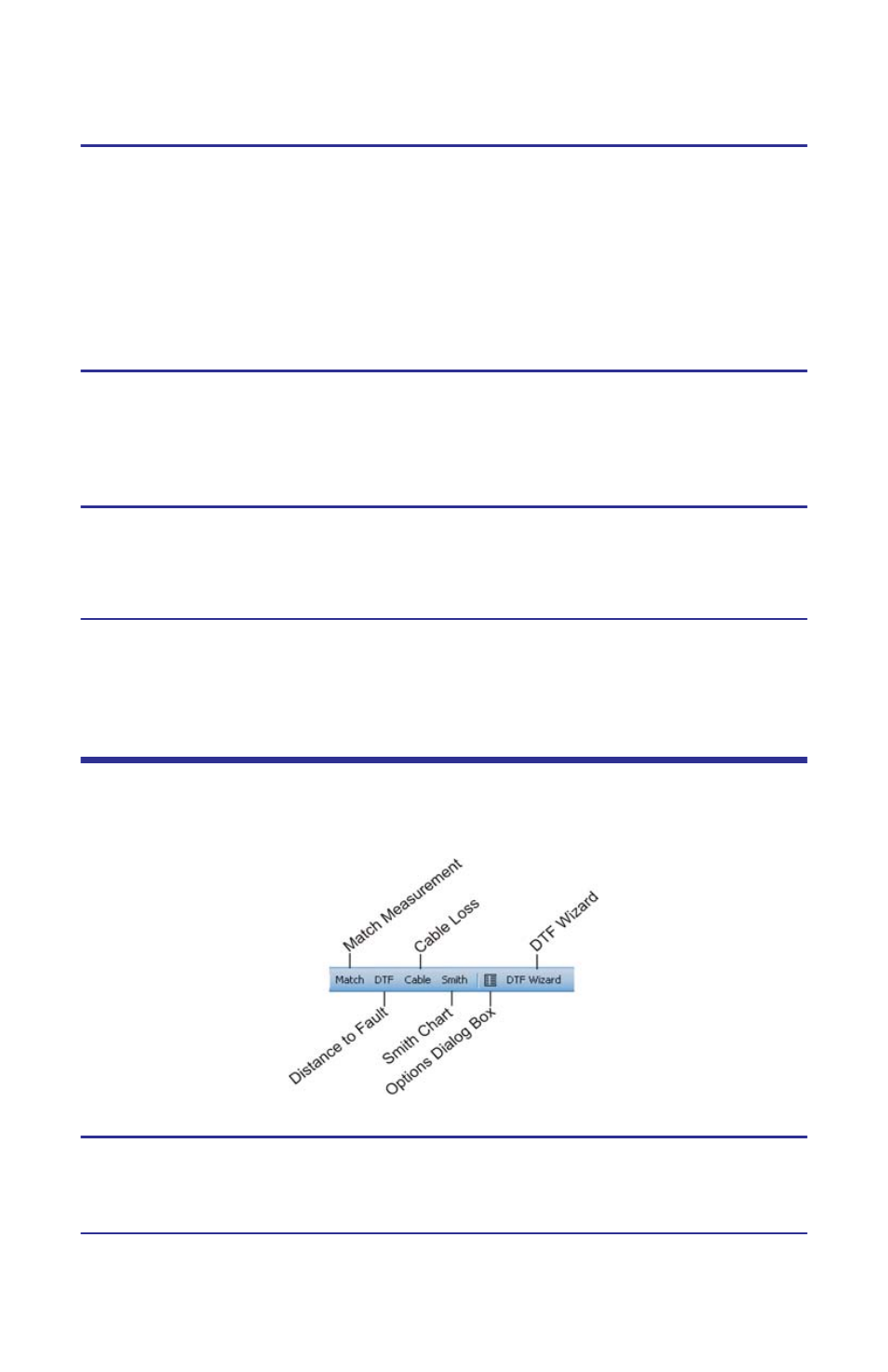

VNA Tool Bar
Note:
There is an addendum, with additional options, to the menu
bar when the PC Tool is reading a VNA file.
Match
Sets the current trace to a Match measurement display.
Distance to Fault
Sets the current trace to a Distance to Fault display.
