6

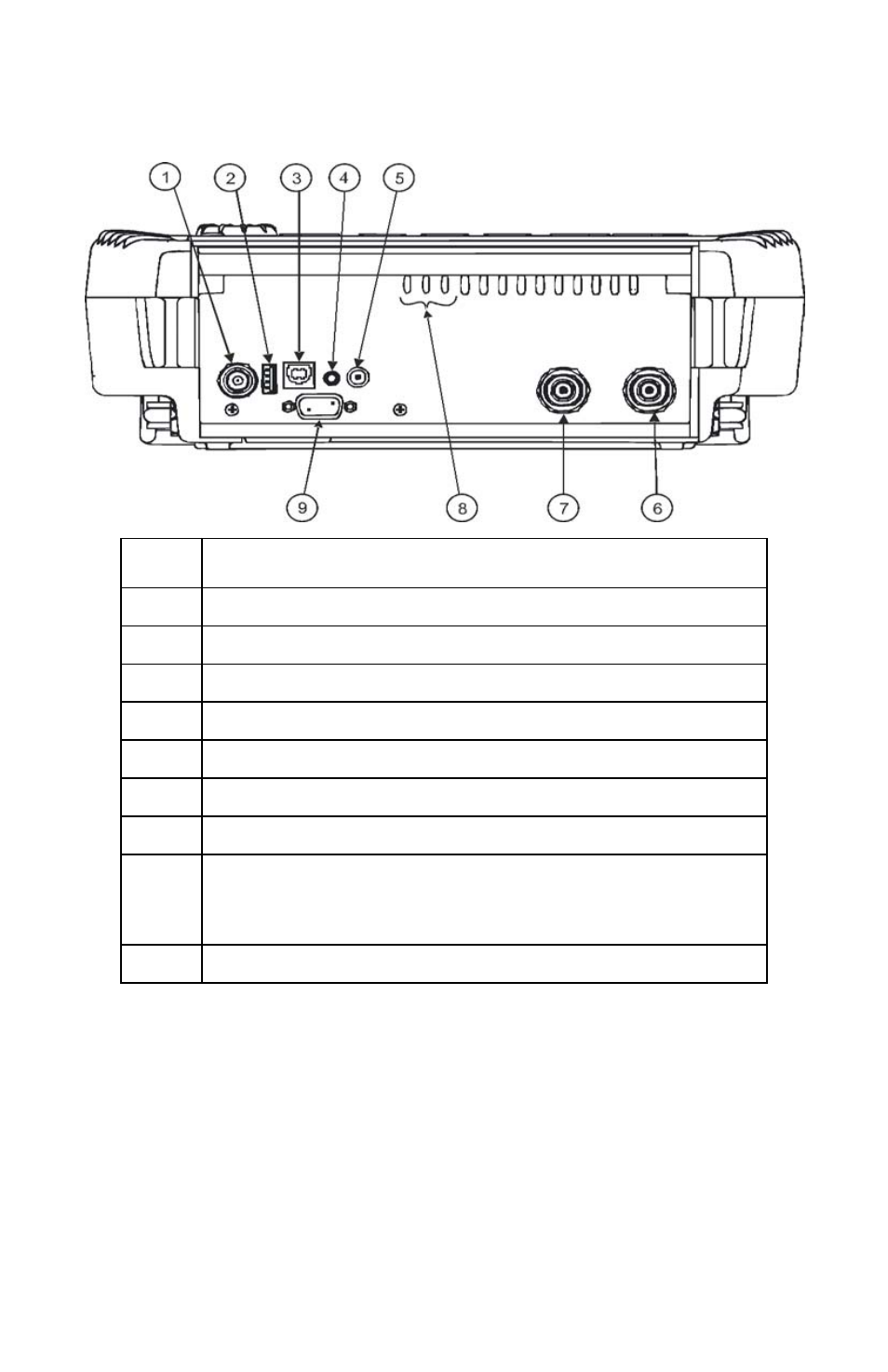

Figure 5 Connector Panel - SH-362

Item

Description

1

BNC(F) external trigger input, 5V TTL

2

USB Type A for USB drive and accessories

3

USB Type B for PC connection

4

3.5mm mini-headphone jack

5

2.5mm DC jack for external power supplies

6

VNA Thru Port

7

VNA Test Port

8

Internal Speaker and air inlet ports. There is also an air
exhaust on the back of the unit.

Note:

Do not block the inlet or exhaust.

9

RS-232 DB-9(F) connector for power sensors
