Section 4: QBox Configuration and Operation
Configure the QMaster to QBox interface
Altering QBox configuration using a ShuttlePRO controller QBox
Installation & Operation
Guide
Issue #: 090924 ©2003-2009 Autocue Group Ltd 32 www.autocue-qtv.com
9. To exit the menu, press the button for selecting the previous menu multiple times until
the menu clears.
4.7: Configure the QMaster to QBox interface
This section describes how you configure the connection between the QMaster software and a
QBox. You must have a scroll control ready when configuring this interface.
1. Plug the license dongle into a USB port on the computer running QMaster.
2. Double-click the QMaster icon. At this stage QMaster checks for the presence of the
license dongle and launches the application in QBox operation mode.
3. If you are testing or transitioning from an Autocue IMT card system to a QBox system
you may have both an IMT card and the QMaster dongle inserted in the computer.

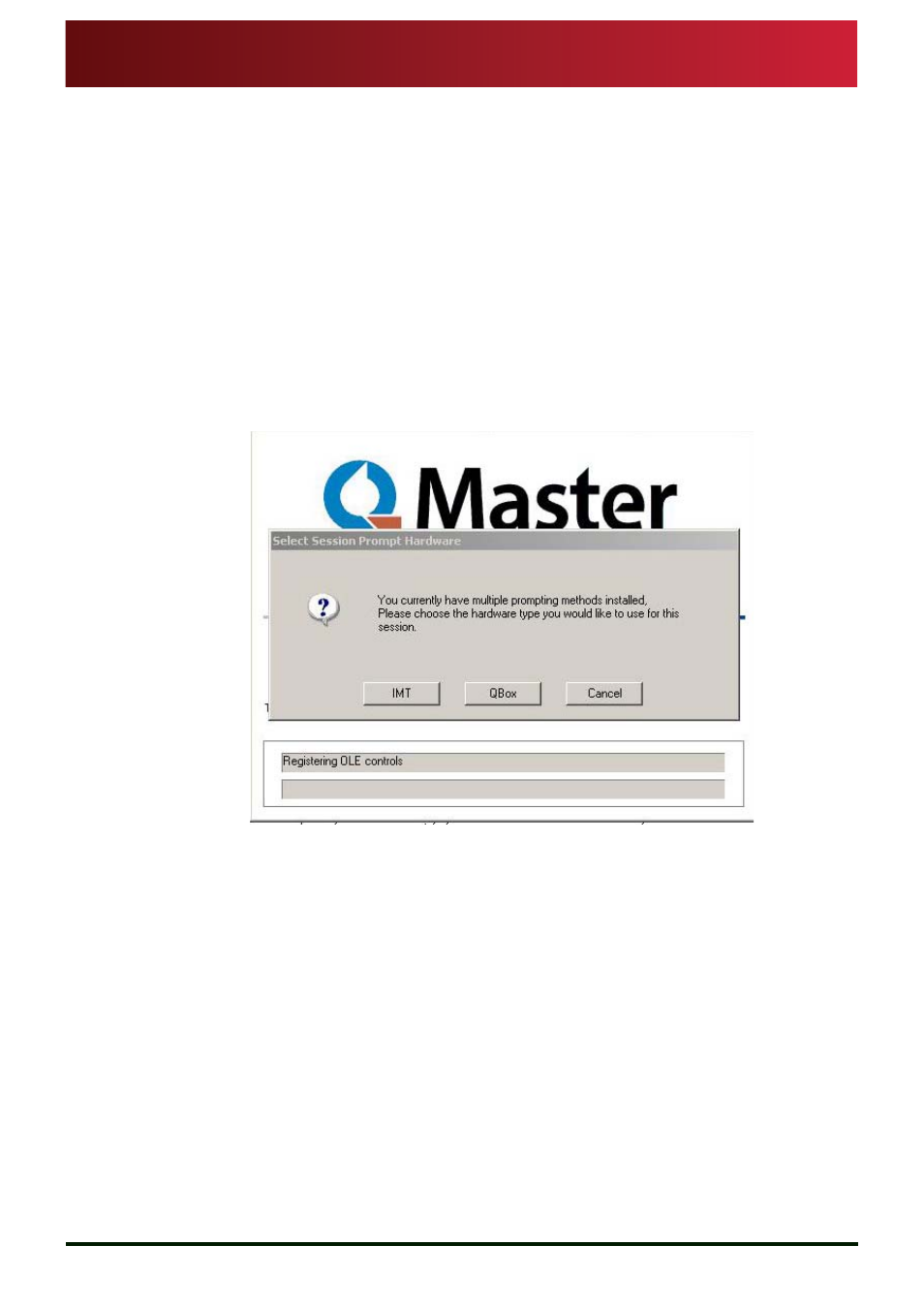

QMaster will identify the presence of both items and will give you the option to choose
in which mode you wish to commence operation.
4. Select QBox to continue with this configuration and open the QMaster software.
