If you click

Y e s the relevant rundown will be displayed in the Script Editor window at the current

position in the script but with scrolling stopped.

4.8:

Configure QBox scroll controls

Scroll controls may be connected to either the computer running the QMaster

software or attached directly to the QBox.

AUTION

Serial ports are not “hot pluggable”. Ensure that the scroll control device is

attached to your QBox before switching the unit on.

1. Attach a keyboard to the QBox and access the configuration menu by pressing

F 8 .

2. Press the

D o w n arrow key to highlight C o n f i g u r e Q B o x and then press E n t e r .

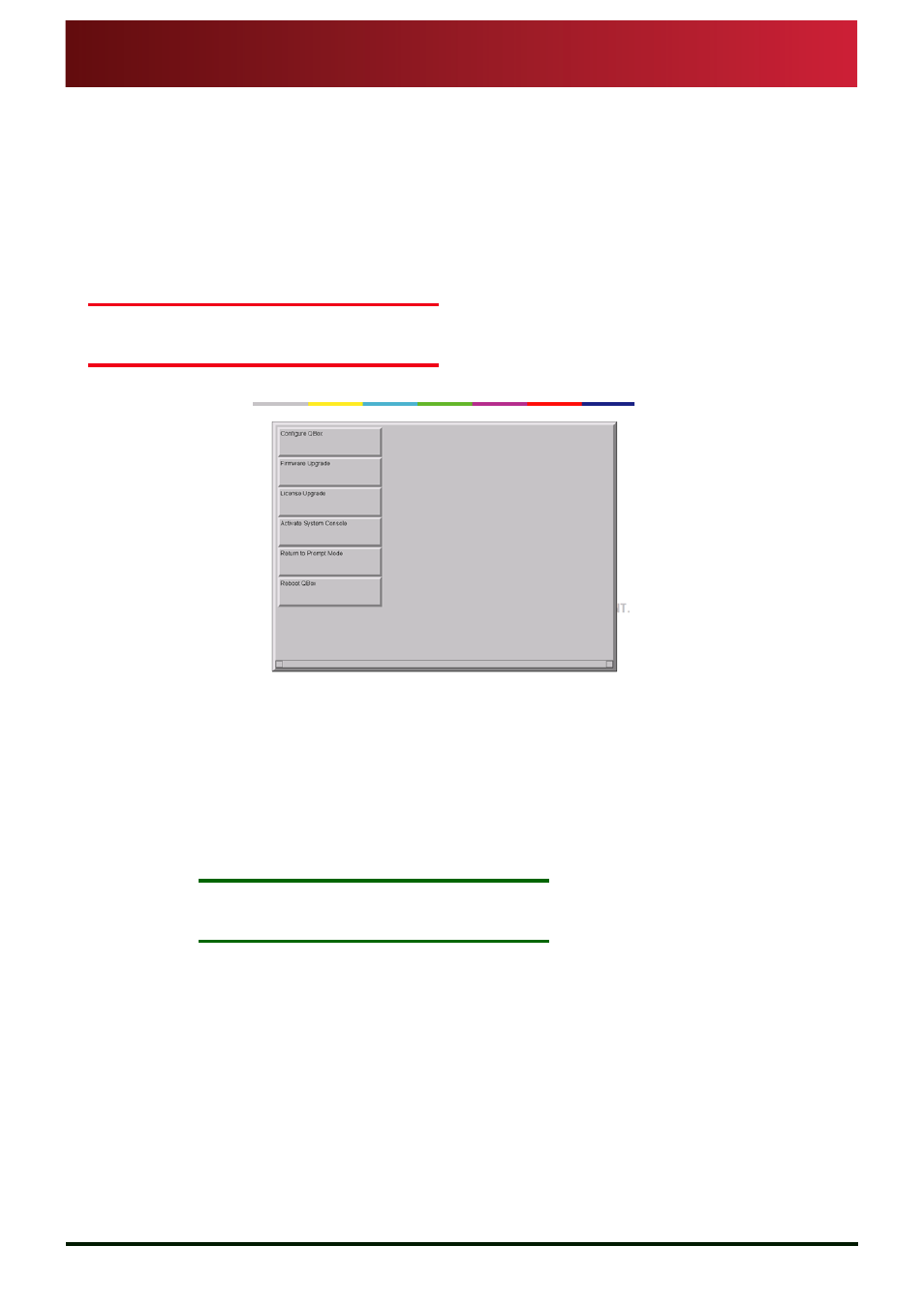

3. Use the arrow keys to highlight

S e r i a l C o n t r o l l e r s and press E n t e r .

For each serial port on the QBox there is a tab that shows the supported types of scroll

control device that may be attached to the unit.

4. Press the

T a b key until the required scroll control type is highlighted and press the

spacebar on the keyboard to select it.

5. Press the

C t r l and P a g e D o w n keys to select the tab for the other serial port.

6. Repeat step 4 to select the scroll control type to be connected to this port.

OTE

You can only select the type of scroll control device connected to the QBox.

The default operational settings will be used.
