QBox
Installation & Operation
Guide
Issue #: 090924 ©2003-2009 Autocue Group Ltd v www.autocue.com
QBox Quick Reference Card
Components
A standard QBox unit is supplied with:
• A 12-volt power supply unit with a 4-pin XLR
connector
• Any scroll control devices that you have
ordered
• An Ethernet cable and a crossover adaptor
plug.
Connections
Plug all required connections before switching
your QBox on.
Attach BNC cables to the required number of
video outputs.
Attach the appropriate network cable
Insert the 4-pin XLR power connection into the
XLTR socket on the back of the unit.
Plug an IEC power cable into the 12-volt power
supply.
The QBox will automatically start.
Operation
1: Starting QBox
Press the main power button on the front of the
unit.
2: Stopping QBox
Press F 4 to access on-screen menus and
select
S h u t d o w n Q B o x a n d p o w e r o f f
With a keyboard attached, press the F 1 2 key.
(In an emergency, press and hold the main
power button for four or more seconds.)
Configuration
Configuration of your QBox requires a standard
keyboard be attached to the unit.

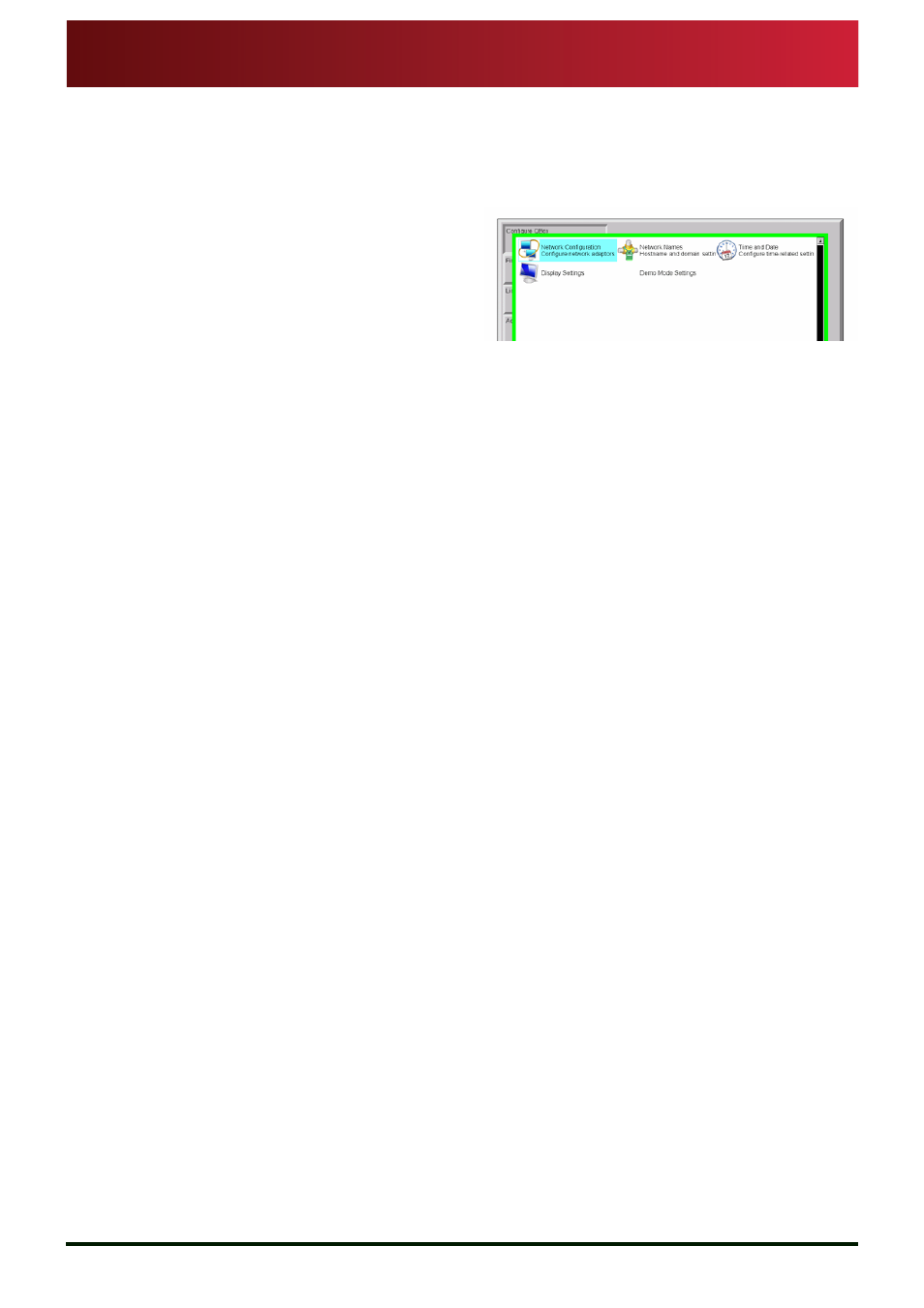

1: Network connection
Select F 8 to open the Configuration interface.
Select
N e t w o r k C o n f i g u r a t i o n
Select L A N 1 and then set the necessary
parameters.
Press E n t e r to restart the network interface.
Click the required buttons to return to prompt
mode.
2: FireWire connection
(Use only if the connector is present on the
QBox you have.)
Select F 8 to open the Configuration interface.
Select
N e t w o r k C o n f i g u r a t i o n
Select f w 0 and then set the necessary
parameters.
Press
E n t e r to restart the network interface.
Click the required buttons to return to prompt
mode.
3: Wireless connection (Optional)
Select F 8 to open the Configuration interface.
Select
N e t w o r k C o n f i g u r a t i o n
Select w l a n 0 and then set the necessary
parameters.
Press
E n t e r to restart the network interface.
Click the required buttons to return to prompt
mode.
