Section 4: QBox Configuration and Operation
QBox operating system
Configure and test the QBox

QBox
Installation & Operation
Guide

www.autocue-qtv.com

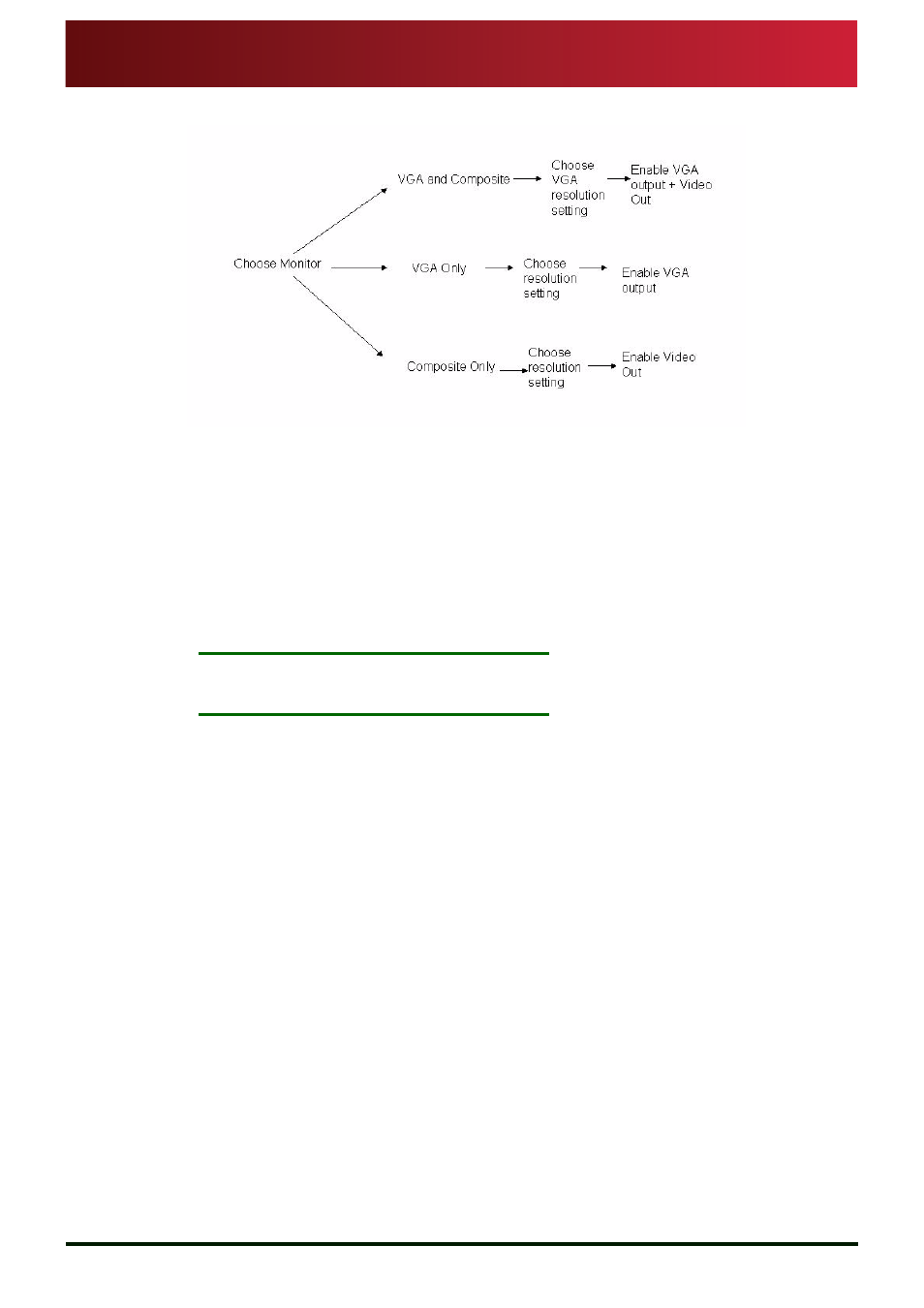

The diagram below outlines the steps to follow depending on the type of monitor you use.

•

If your monitor accepts only a composite video signal then follow the

“Composite Only” path.

•

If your monitor is a VGA monitor you can configure the QBox to generate

either a VGA signal or a primary VGA signal with a secondary, lower quality,

composite signal.

You might choose to have both a VGA and Composite signal generated simultaneously

is that you would use the VGA signal for the prompter output and the Composite signal

for a preview monitor for the operator. This is especially useful when using the QBox as

a back-up to a primary QMaster computer.

OTE

The quality of the scroll output may be significantly degraded if both VGA

and Composite output are in use, due to the differences in display format.
