7-11
Wiring the Regulator Board Terminal Strip
Table 7.8 – Wiring Signal and Control I/O to the Terminal Strip (Continued)
Terminal
Number
12
13
14
15
Description
Isolated Reference Voltage
(+10 VDC)
Analog Speed/Torque
Reference Input Voltage
(+/– 10 VDC)
Analog Speed/Torque
Reference Input Current
(0-20 mA)
Isolated Speed/Torque
Reference Common
(Voltage/Current)
Parameters/Wiring Connections
Related parameters:
P.000: Control Source
P.009: Terminal Strip Analog Input Offset
P.010: Terminal Strip Analog Input Gain
P.011: Terminal Strip Analog Input Configure
Refer to the GV3000/SE Software Start-Up and Reference manual
for additional parameter information.
Jumper J4 must also be set. See figure 2.6.

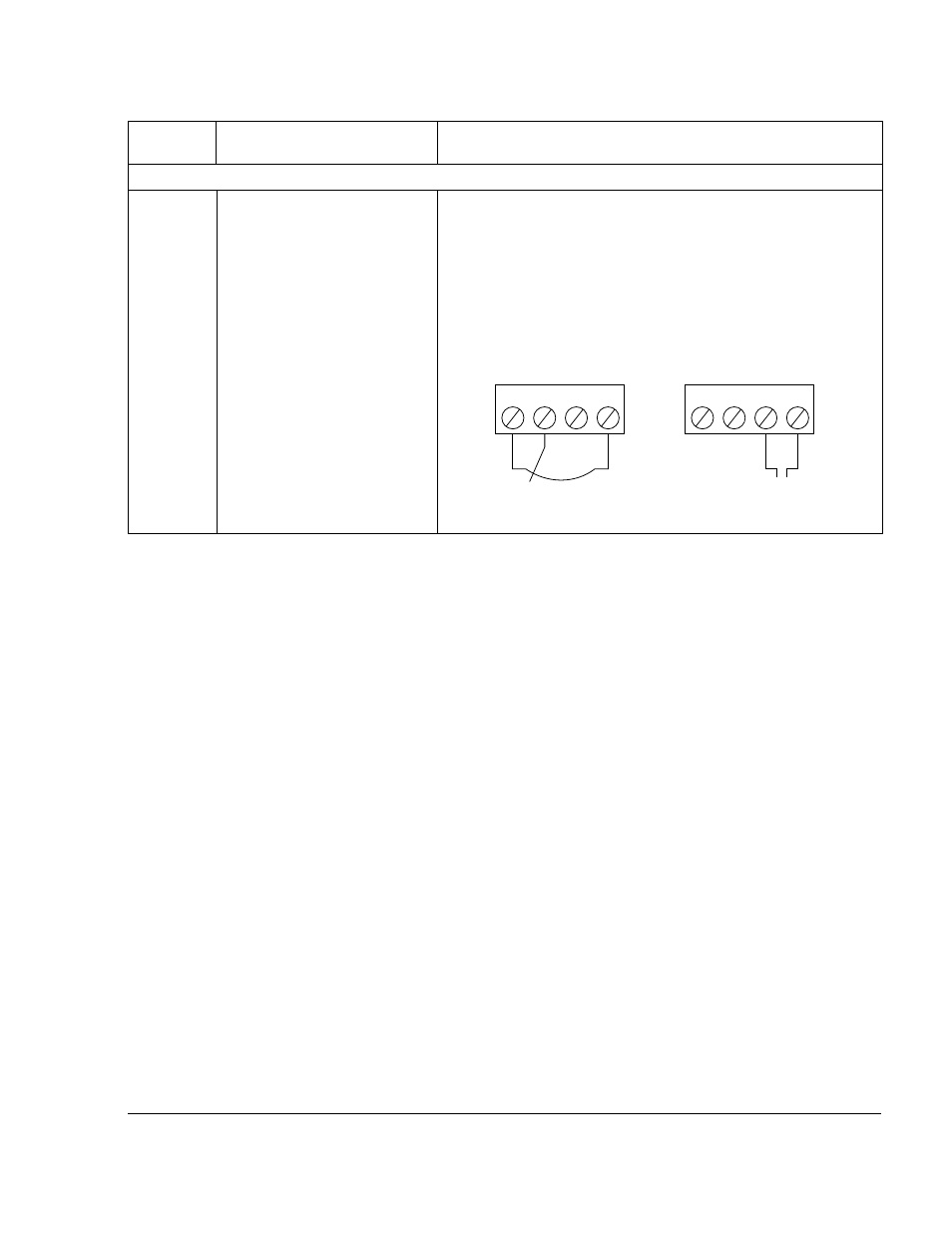

Wiring Analog Speed Reference Inputs
12 13 14 15
5K
+10 VDC
0 V +10 V
12 13 14 15
+
+20 mA
0 V +20 mA
–
INPUT
SPEED REFERENCE
