Page 24
2-10
GV3000/SE 230 VAC 1-20 HP Drive, Hardware Reference Version 6.04

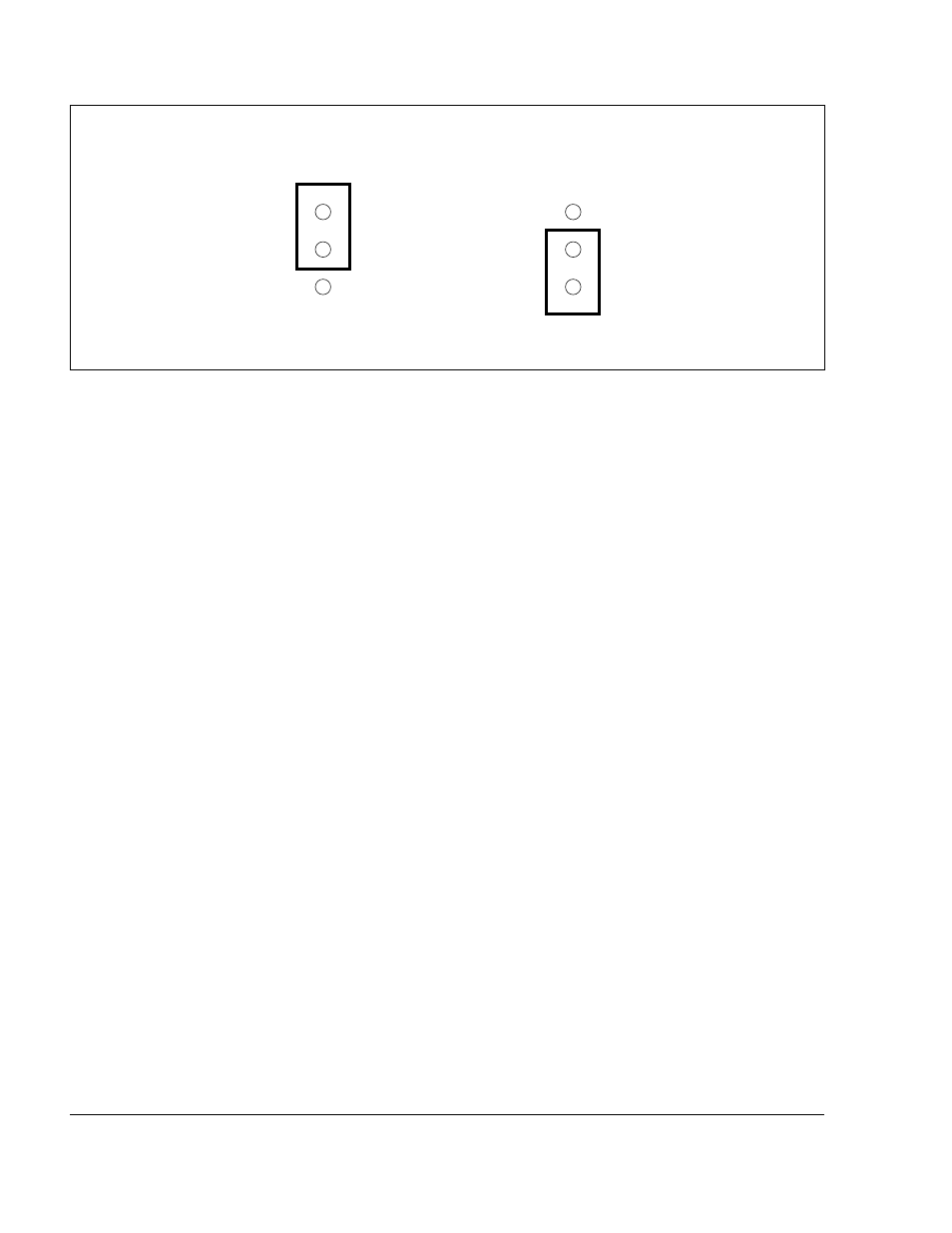

Figure 2.7 – Jumper J17 Settings for Analog Outputs
2.4.2 Wiring the Terminal Strip
The terminal strip on the Regulator board provides terminals for connecting
customer I/O devices. See figures 2.5 and 2.8. The following terminals are
provided:
•
Terminals 1-3
: RS-232 connections
•
Terminals 4-9
: encoder connections
•
Terminals 10-11: analog output connections
•
Terminals 12-15: analog speed/torque reference connections
•
Terminals 16-25: 24 VDC digital input connections
•
Terminals 26-27: snubber resistor braking control connections for older
Snubber Resistor Braking Kits (for example, the M/N 2DB2010 series)
•
Terminals 28-31: status relay connections
Voltage Output Option
Pins 2-3
10 VDC
J17
Current Output Option
Pins 1-2
4
-
20 mA
J17
(default)
