7-10
GV3000/SE 230 VAC 1-20 HP Drive, Hardware Reference Version 6.04
Parameters/Wiring Connections
The setting of parameter P.012 selects the terminal strip analog
output source (either speed or torque). Jumper J17 must also be
set. See figure 2.7.
The 4-20 mA current selection requires a power supply for
operation. The power can be sourced from the encoder supply,
terminal 4 (15 VDC), or from an external 15 V power supply. Note
that the maximum supply current from terminal 4 is 250 mA
(encoder and current source) at 15 V.
Terminals 9 and 11 are internally connected.
Description
0-10 VDC or 4-20 mA
Analog Output Reference
Regulator Common
Table 7.8 – Wiring Signal and Control I/O to the Terminal Strip (Continued)
Terminal
Number
10
11

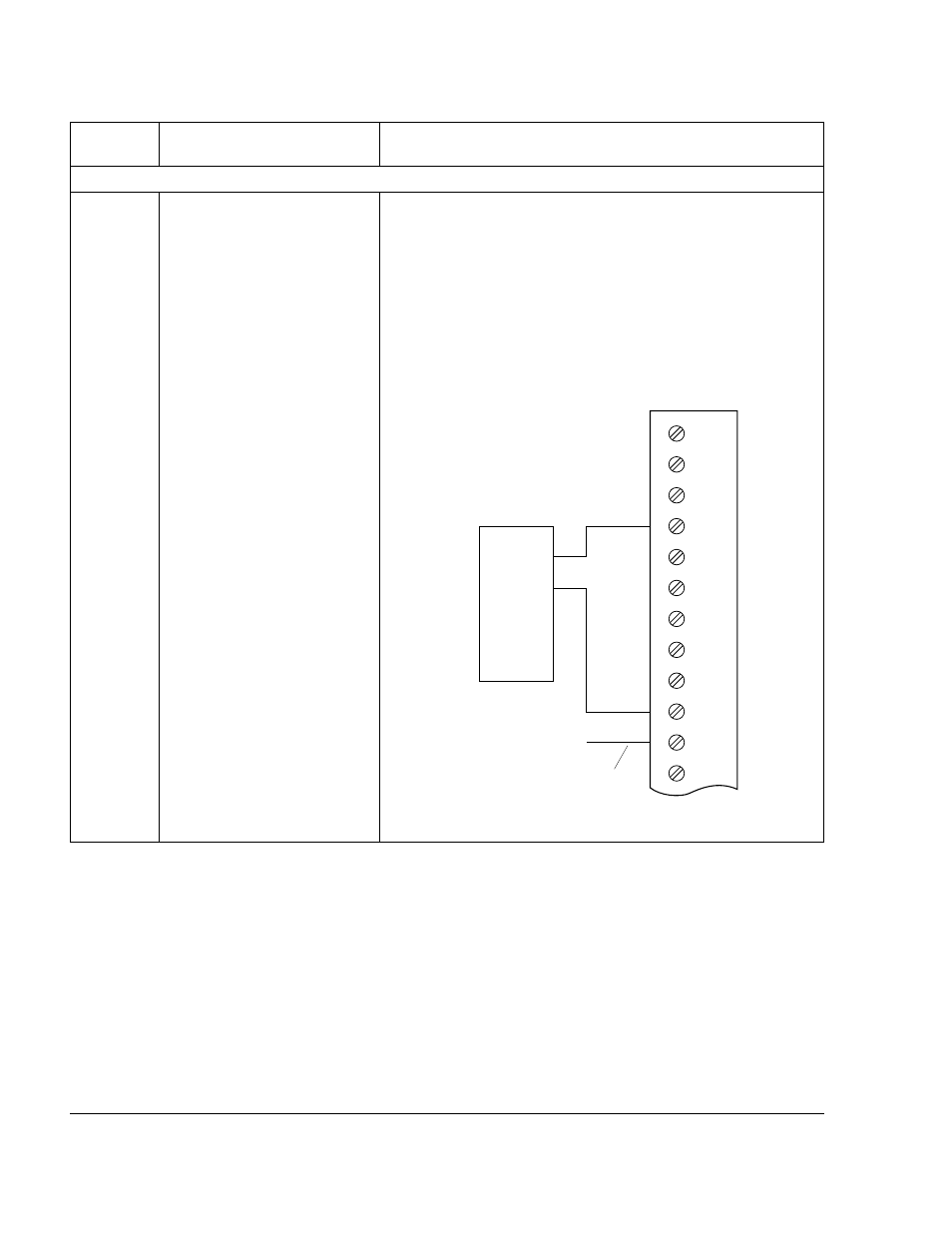

Wiring Analog Outputs
1
2
3
4 +
5
6
7
8
9 –
10 +
11 –
12
Terminal
Strip
Load
(Meter or Analog Input)
+
–
Connection to the negative
side of the power supply is
only required when an external
15 V power supply is used.
