5-20 LiquiFlo 1.5 AC Drive, Software Reference Version 1.2
5.8.2 Accessing the Fault Parameters
The LCD OIM provides quick access to the drive’s fault parameters by grouping them
in the Fault Info submenu. To access these parameters, see figure 5.6.
5.8.3 Accessing the Drive Status Parameters
The LCD OIM provides quick access to the drive status parameters by grouping them
in the Status Info submenu. To access these parameters, see figure 5.7.

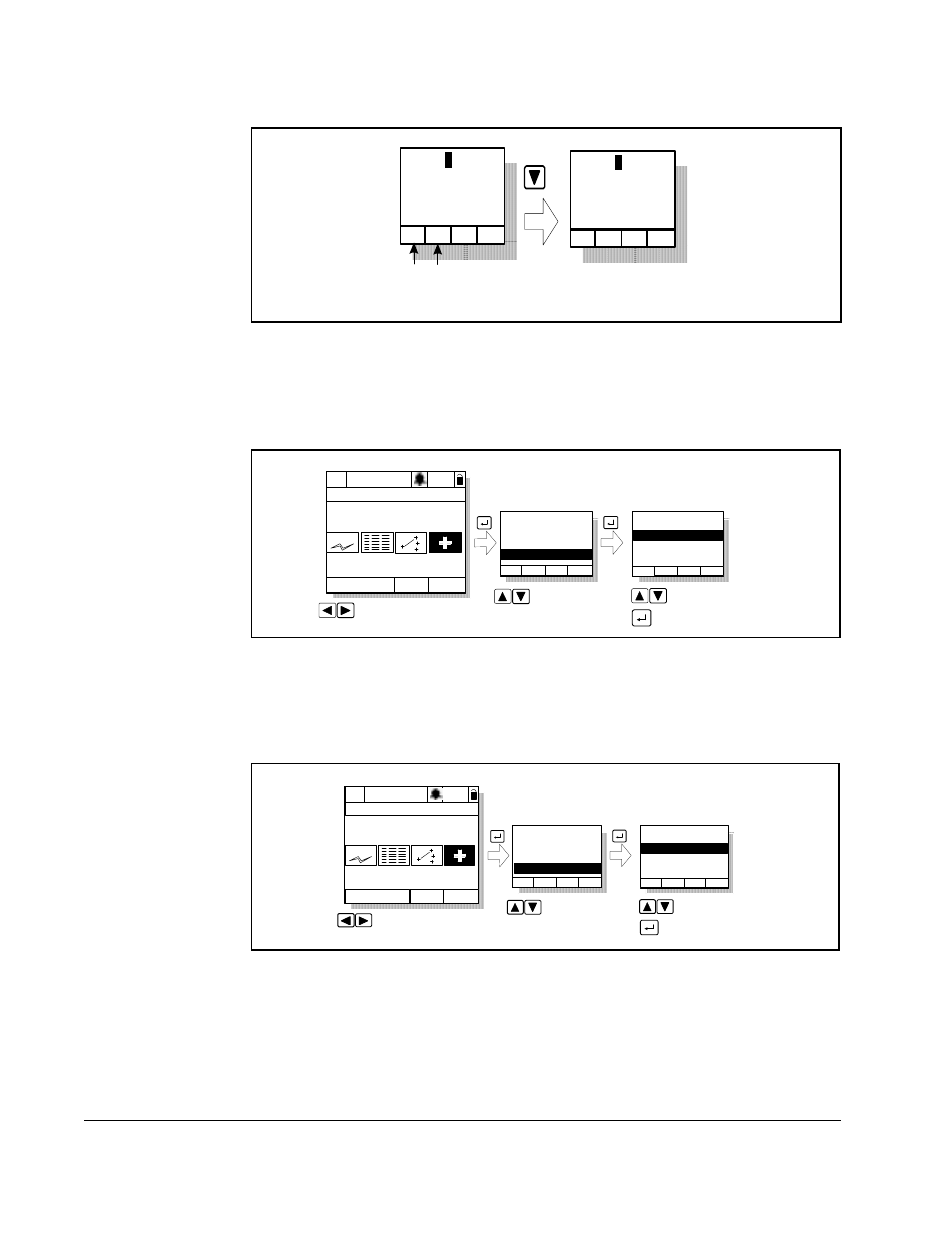

Figure 5.5 – Sample Fault Queue Entry
F1 = Clear fault
FltQ# : F#xxxxx
Fault1 Text String
Accum:
hours:min:sec 1
Cflt Clrqu
FltQ# : F#xxxxx
Fault2 Text String
Accum:
hours:min:sec 2
Cflt Clrqu
F2 F1
F2 = Clear fault queue
Figure 5.6 – Accessing the Fault Parameters
Diagnostics:
Fault Info
Device Version
P0: LiquiFlo 1.5
Stopped Auto
Main Menu
Diagnostics
OIM Version
Diag: Fault Info
Status1@Fault
Alarm1@Fault
Status2@Fault
Highlight parameter
Select
Highlight item
Highlight Diagnostics icon
Monitor Lang
>>
Figure 5.7 – Accessing the Drive Status Parameters
Diagnostics
:
Status Info
OIM Version
Lang
P0: LiquiFlo 1.5
Stopped Auto
Main Menu
Diagnostics
Fault Info
Diag: Status Info
Drive Status1
Drive Alarm1
Drive Status2
Highlight parameter
Select
Highlight item
Highlight Diagnostics icon
Monitor
>>
