4-3

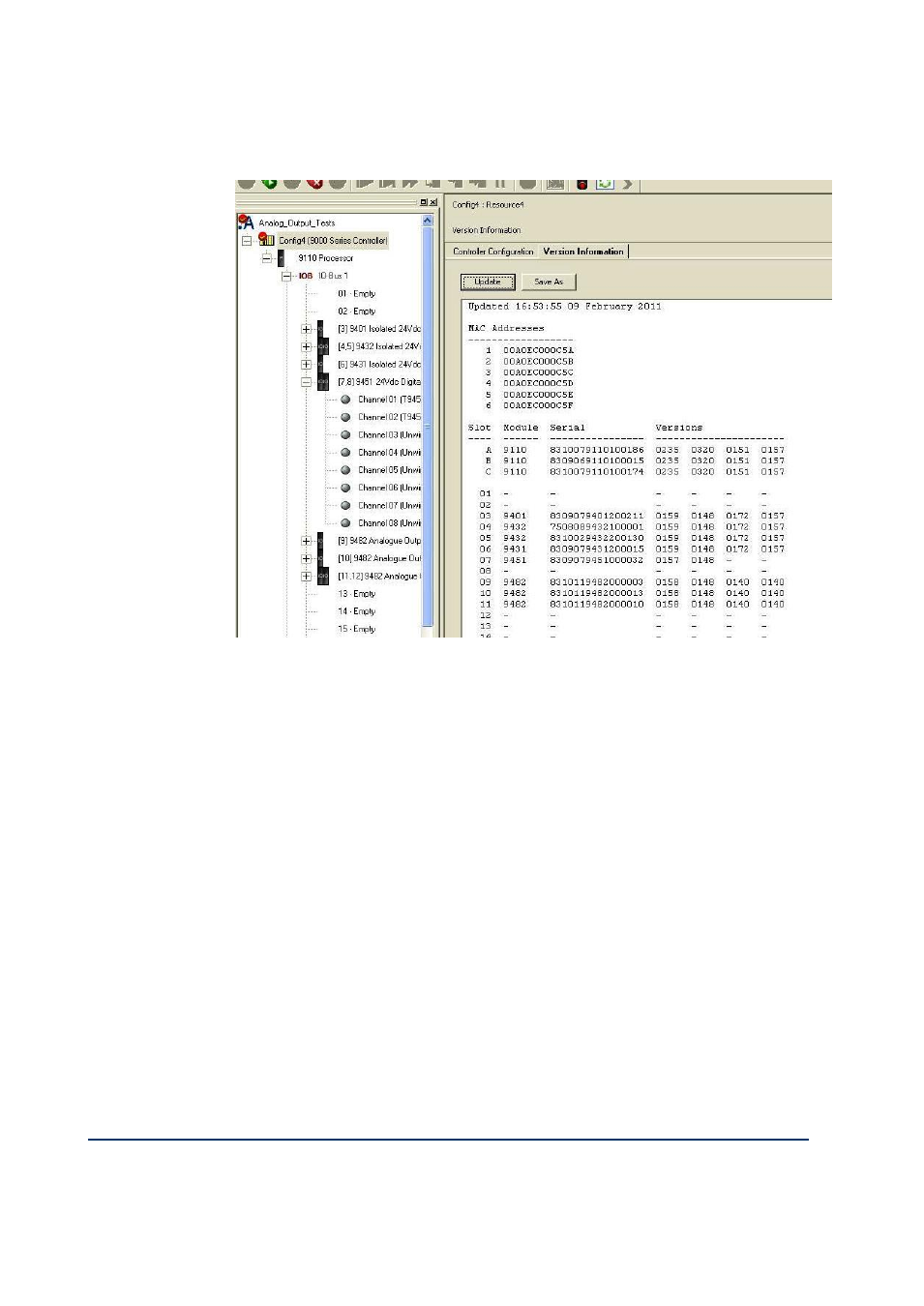

 The window now shows your controller's current firmware version information.
The information displayed is as follows:
MAC Addresses - MAC addresses for the controllers. There are two addresses
per controller set by the BUSP chip inserted into the processor base unit;
However, 6 MAC addresses are displayed regardless if the system is a Single, Dual
or Triple processor system.
The module Information is as follows:
Slot - the slot the module has been allocated
Module - the module identity
Serial - the module hardware serial number
Versions - The firmware versions in the module
1) Click Apply

The information is saved with the project so that next time the project is
opened you can view it.
2) To save the information to a text file select the Save As button.
3) A window opens with a default text file name Version_Report.txt; Enter your
own file name and click Save.
