How to connect your equipment – Rockwell Automation 2755-DM9, -DM9E High Speed Decoder User Manual
Page 79

Chapter 5
Installing the Decoder
5–5
Connect your equipment using the appropriate cables. Refer to Figure 5.4 as
you follow the step-by-step procedures provided.

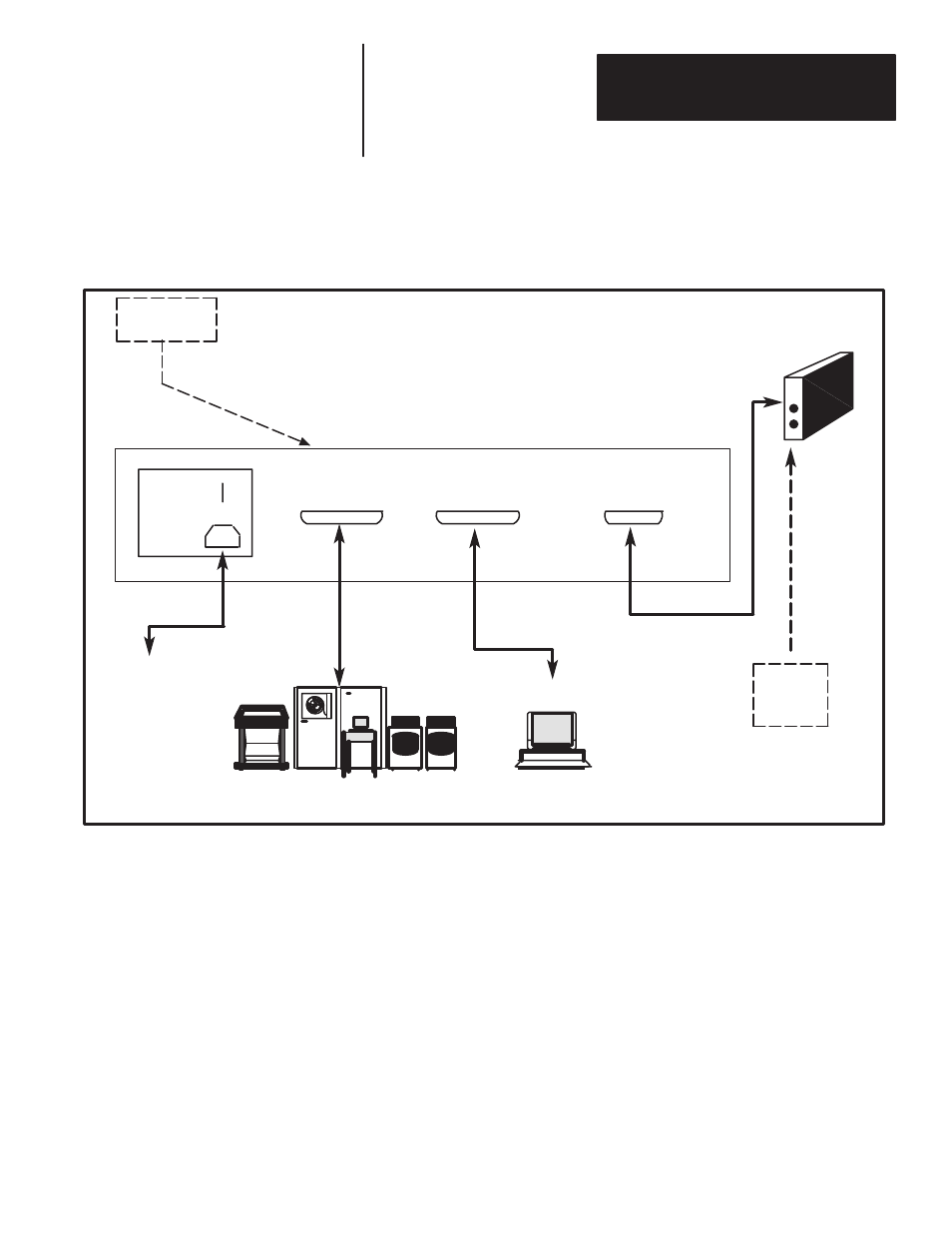

Figure 5.4
Connecting Equipment to the Decoder’s Ports
DECODER
SCAN HEAD
AUXILIARY
Scan
Head
Л
Л
Л
Л
Л
ЛЛ
ЛЛ
ЛЛ
ЛЛ
ЛЛ
Л
Л
Л
Л
Л
Л
Л
Step 4
Step 6
Outputs 1-8
(Optional)
Step 7
Package
Detect
(Optional)
Step 2
Step 5
Host
HOST
AC Power
Step 8
Step 1
Step 3
Programming
Terminal
Step 1 - Mount the scan head. Refer to the applicable user’s manual for the
scan head.
Note: Make sure the decoder is securely mounted. The power switch should
be in the off position and the power cable should not be connected.
Step 2 - If a package detector will be used, connect it to the scan head.
Step 3 - Connect the scan head to the port labeled SCAN HEAD or
SCANNER on the back of the decoder using one of the following:
Catalog No. 2755-L7, -L9 Scan Heads:
10 foot (3.05 meter) cable (Catalog No 2755-CL10)
25 foot (7.62 meter) cable (Catalog No. 2755-CL25)
Catalog No. 2755-L4, -L5 Scan Heads:
10 foot (3.05 meter) cable (Catalog No 2755-CK10)
25 foot (7.62 meter) cable (Catalog No. 2755-CK25)
How to Connect Your Equipment
