the current match codes and loading new match codes. Auto Load (INPUT)
does not cause match code data to be loaded into match table entry #8.
Auto Load (INPUT) is useful in product verification applications where new
match codes need to be loaded into the decoder on a regular basis. When a
new product label needs to be entered into the match table, an Auto Load
pushbutton is pressed by an operator. Then, a sample of the product is run by
the scanner. The new match code is automatically entered. If a display is
connected to the AUX port, you can then read and verify the match code
value.
Configuration as
Stored in EEPROM
Before Auto Load
After Auto Load
-------------MATCH CODE TABLE---------- ------- OUTPUTS [ENABLED]------------
1) I 2-of-5 Y
001688421378
Match Entry
0100
2) I 2-of-5 Y
411528258538
Match Entry
0100
3) I 2-of-5 Y
611679808644
Match Entry
0100
4) CODE 39 N
None
0000
5) CODE 39 N
None
0000
6) CODE 39 N
None
0000
7) CODE 39 N
None
0000
8) CODE 39 N
Auto Load (INPUT)
0000
-------------MATCH CODE TABLE---------- -------- OUTPUTS [ENABLED]------------
1) I 2-of-5 Y
Auto Load
0100
2) I 2-of-5 Y
Auto Load
0100
3) I 2-of-5 Y
Auto Load
0100
4) CODE 39 N
None
0000
5) CODE 39 N
None
0000
6) CODE 39 N
None
0000
7) CODE 39 N
None
0000
8) CODE 39 N
Auto Load (INPUT)
0000
611679808644
411528258538
001688421378
Note:
Interleaved 2-of-5 must be an
enabled symbology. Fields/Package is
assumed to be 3 for this example.
Ready for next Auto Load
-------------MATCH CODE TABLE---------- -------- OUTPUTS [ENABLED]------------
1) I 2-of-5 Y
Auto Load
0100
2) I 2-of-5 Y
Auto Load
0100
3) I 2-of-5 Y
Auto Load
0100
4) CODE 39 N
None
0000
5) CODE 39 N
None
0000
6) CODE 39 N
None
0000
7) CODE 39 N
None
0000
8) CODE 39 N
Auto Load (INPUT)
0000
Input Module #8 Activated
First Valid Package Read

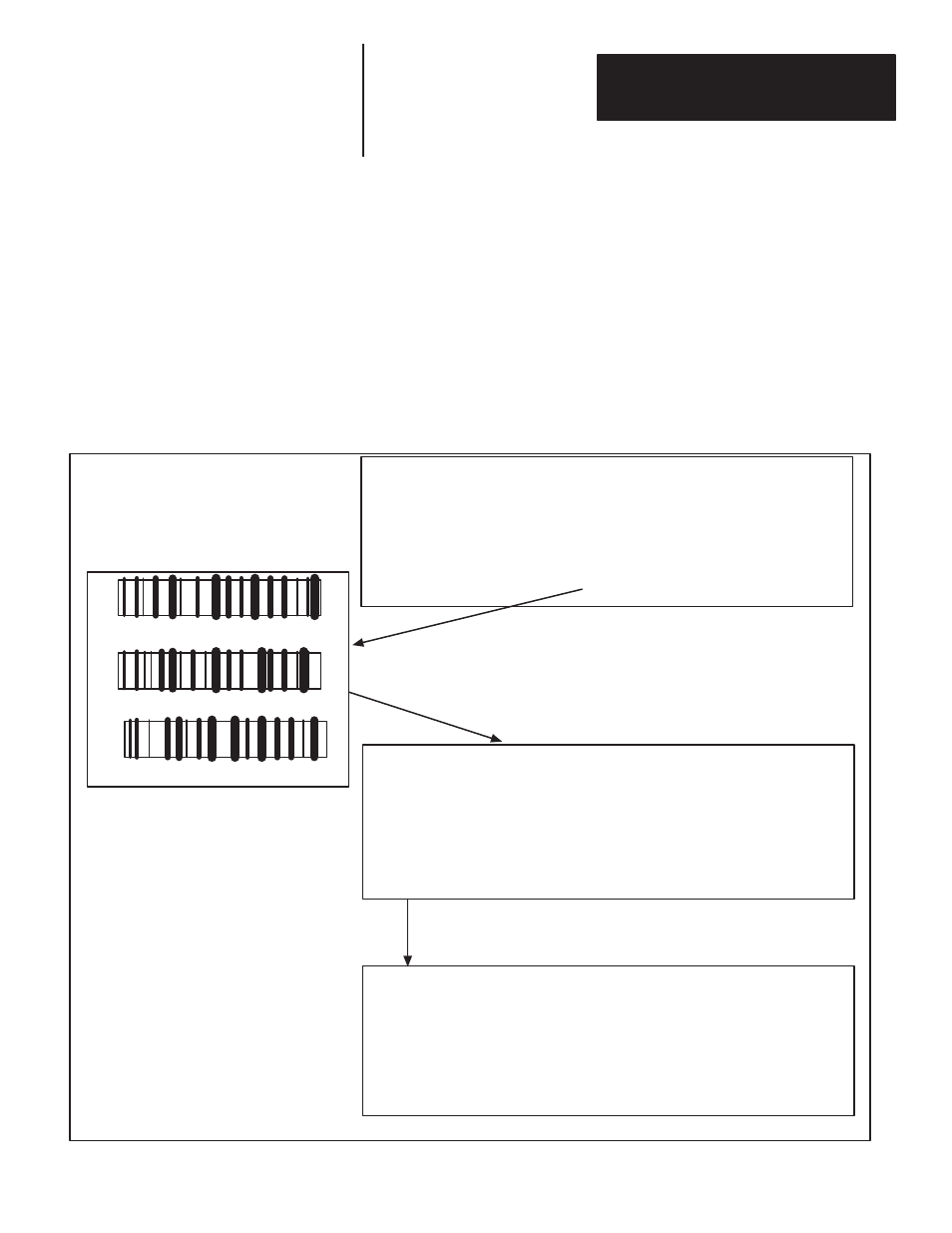

Figure 4.6
Auto Load Feature
