4-12 Configuration and Programming
M0:e.9 Bits 0 through 7
This value represents the interval (Rate Period) of which the Rate
Calculation will be performed. The integer value entered in bits 0-7
can range from 1-255. It is multiplied by 10ms to obtain the actual
Rate Period time. If reset to 0, a fault will occur. Refer to Selecting the
Rate Period Parameter in Chapter 2.
M0:e.9 Bits 8 through 15
Bits 8 through 15 are reserved and must be reset to 0.
M0:e.10 through M0:e.33 Starting/Ending Range Values (Dynamic)
The Range and Rate Mode each support 12 ranges and have a Range
Starting Value and a Range Ending Value. Integer values are entered
into the Range Starting and Ending Values.
For example, when in Range Mode, Range 2 (M0:e.3/8-15) is in effect
when the Accumulated Count is equal to or within the values
indicated in the Range 2 Starting Value (M0:e.12) and Range 2 Ending
Value (M0:e.13).
R R Output Source Select, Word 0
Bit Number (decimal) 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
M0:e.0
Setup and Control Word, Word 1
Valid Ranges, Word 2
Range 2 and Range 1 Outputs, Word 3
Range 4 and Range 3 Outputs Word 4
Range 6 and Range 5 Outputs, Word 5
Range 8 and Range 7 Outputs, Word 6
Range 10 and Range 9 Outputs, Word 7
M0:e.1
M0:e.2
M0:e.3
M0:e.4
M0:e.5
M0:e.6
M0:e.7
Range 12 and Range 11 Outputs Word 8
Rate Period, Word 9
Range 1 Starting Value, Word 10
Range 1 Ending Value, Word 11
M0:e.8
M0:e.9
M0:e.10
M0:e.11 R R R R R R R
Range 2 Starting Value, Word 12
Range 2 Ending Value, Word 13
M0:e.12
M0:e.13
Range 11 Starting Value, Word 30
Range 11 Ending Value, Word 31
M0:e.30
M0:e.31
Range 12 Starting Value, Word 32
Range 12 Ending Value, Word 33
M0:e.32
M0:e.33
R R
R R R R
R R R
R

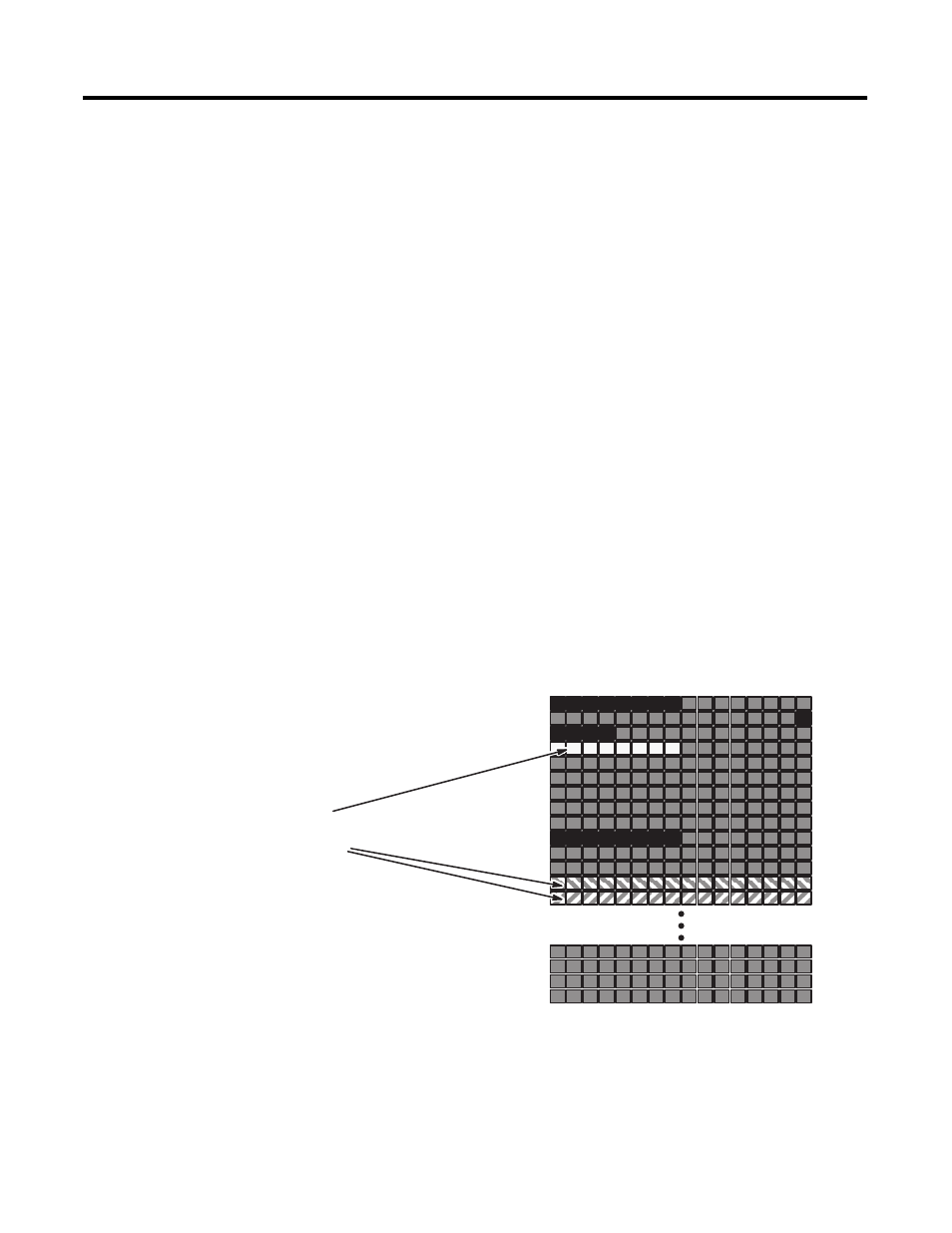

The Range 2 output pattern is
in effect when the count is
equal to or within the limits
specified by words 12 and 13.
R R R
R
R R
