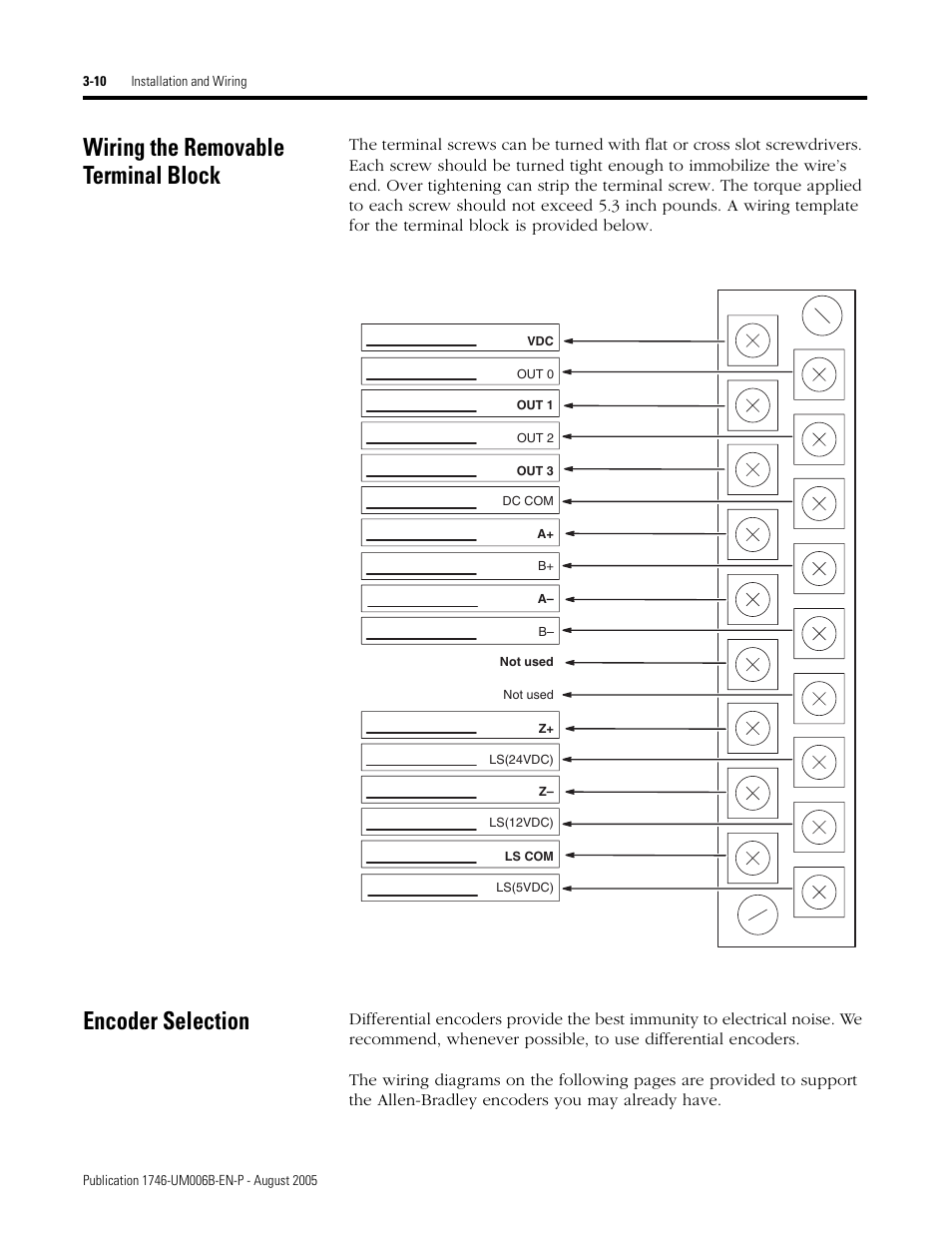

Wiring the removable terminal block, Encoder selection – Rockwell Automation 1746-HSCE,D17466.5 High-Speed Counter Module User Manual
Page 54
