Important wiring considerations, Important wiring considerations -6 – Rockwell Automation 1746-HSCE,D17466.5 High-Speed Counter Module User Manual

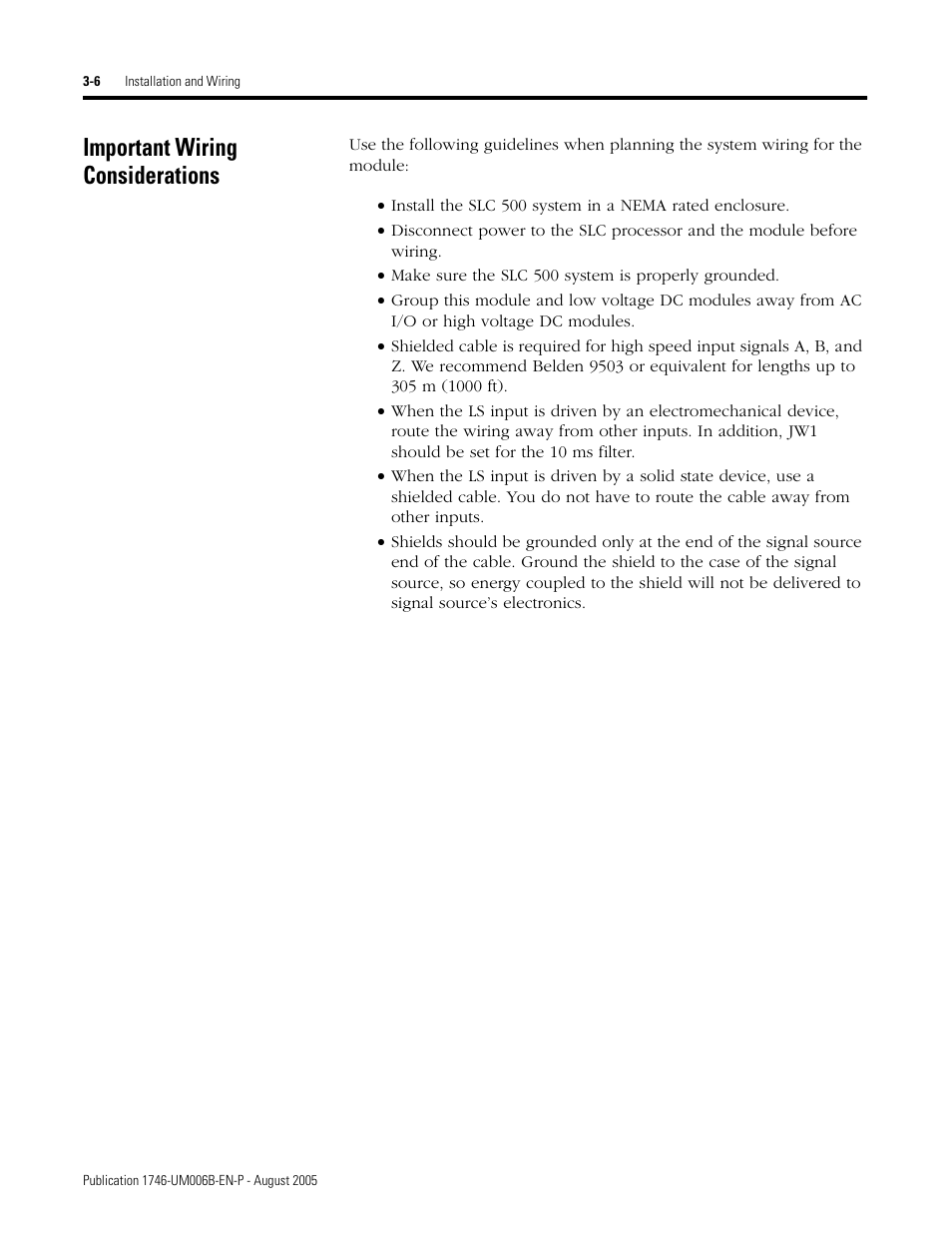

Page 50
