Figure 8.16, Will – Rockwell Automation 1769-SM2 Compact I/O DSI/Modbus Communication Module User Manual
Page 141
ControlLogix w/1769-ADN DeviceNet Example Ladder Program
8-11

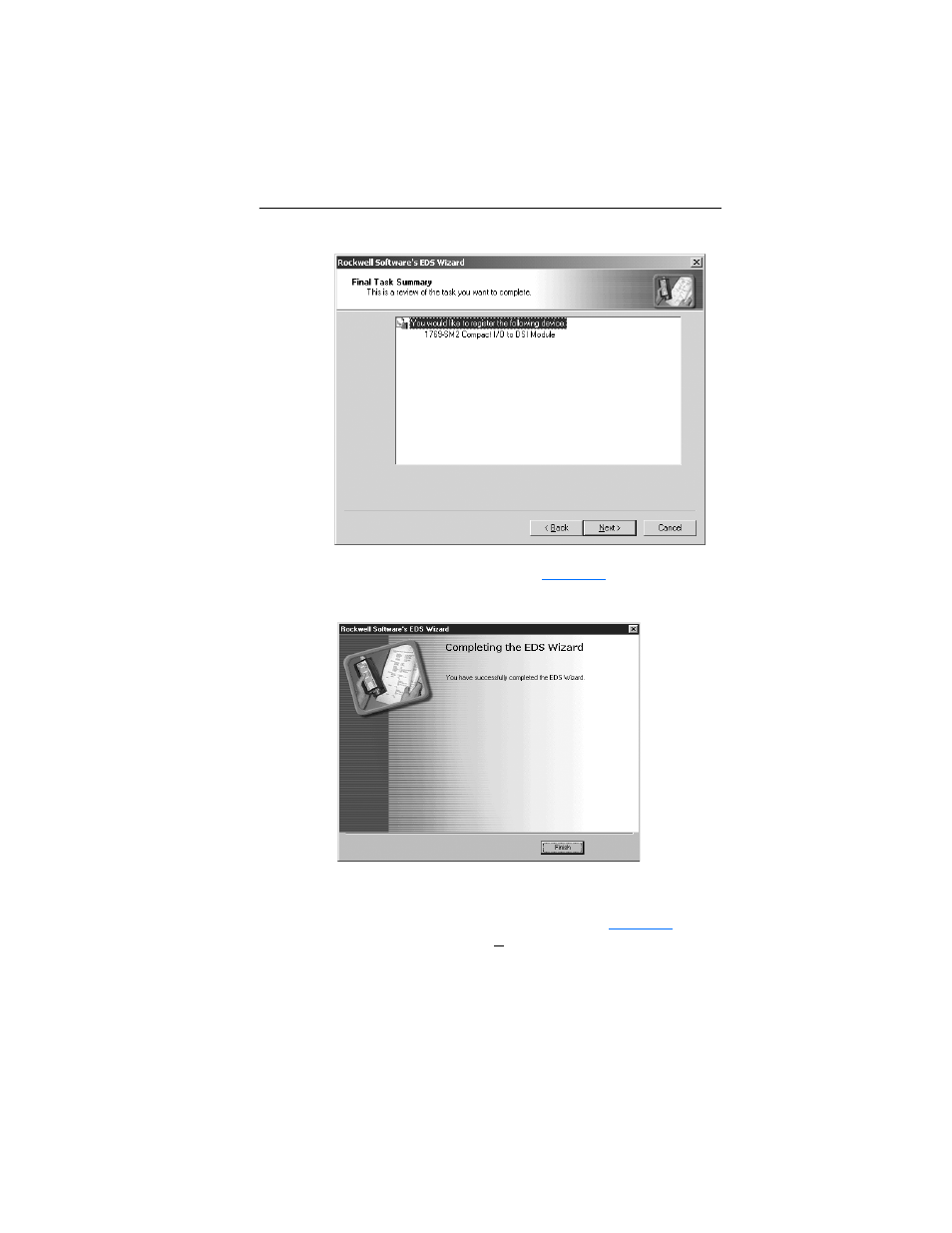

Figure 8.16 EDS Wizard Final Task Summary Screen
8. The EDS Wizard is now completed (
). Click Finish.
Figure 8.17 EDS Wizard Finish Screen
Earlier versions of RSNetWorx for DeviceNet require you to close and
restart RSNetWorx for DeviceNet to enable the 1769-SM2 module to
appear in the 1769-ADN Module Configuration tab (
). If you
do not see the 1769-SM2 in the Hardware list, close and restart
RSNetWorx for DeviceNet.
