ControlLogix w/1769-ADN DeviceNet Example Ladder Program 8-3
5. In the Add New RSLinx Driver screen, use the default name or type a
new name and click OK. The Configure Drivers screen reappears
with the new driver in the Configured Drivers list (
Figure 8.2 ).

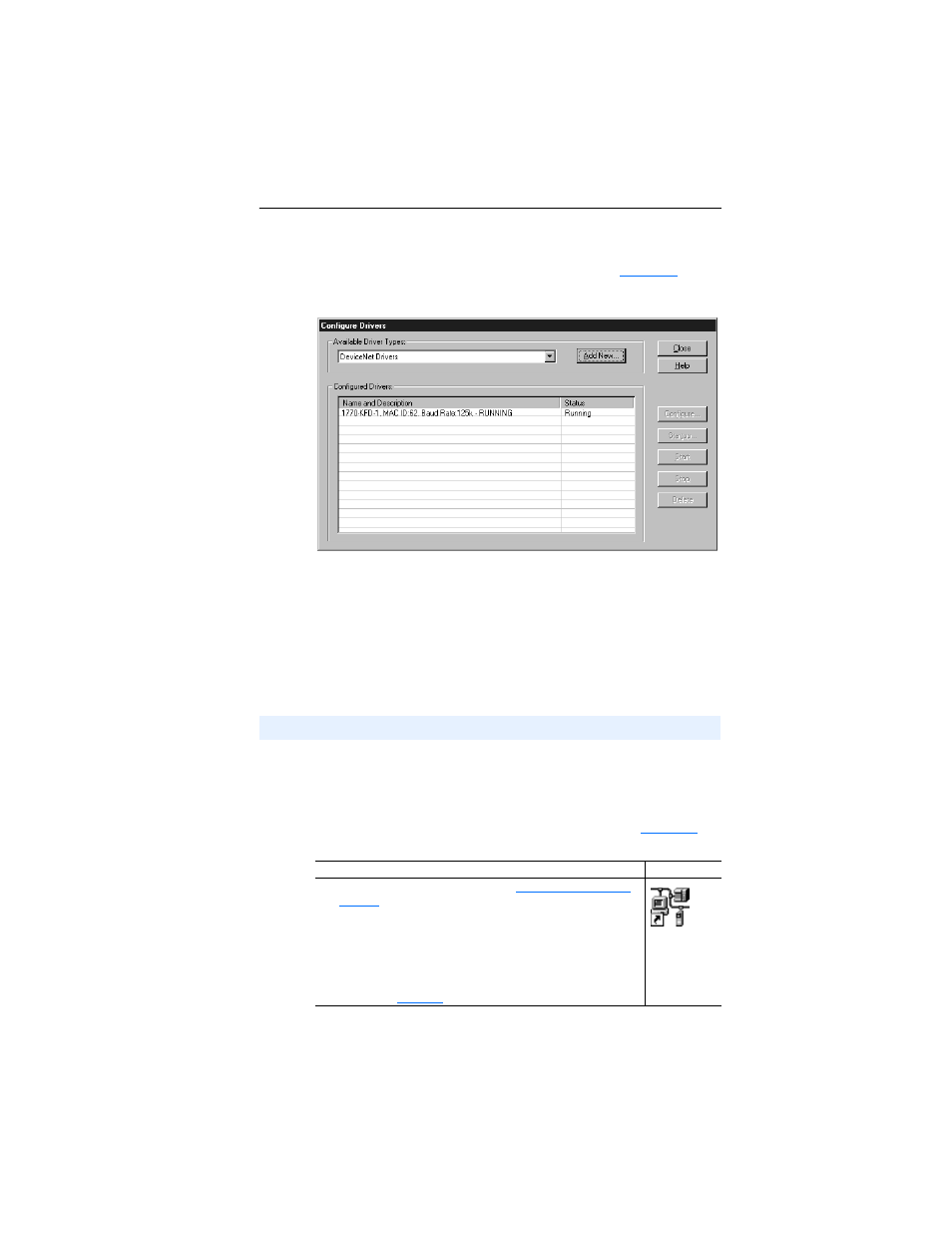

Figure 8.2 Configure Drivers Dialog Box with a Configured Driver
6. Click Close to close the Configure Drivers screen. Keep RSLinx
running.
7. Verify that your computer recognizes the drive. Select
Communications > RSWho and, in the treeview, click the “+”
symbol next to the DeviceNet driver.
RSNetWorx for DeviceNet is a Rockwell Software application that can
be used to set up DeviceNet networks and configure connected devices.
You can view the devices on a DeviceNet network by going online. A
device may appear as an unrecognized device (node 63 in
Figure 8.3 ) if
RSNetWorx for DeviceNet does not have an EDS file for it.
Using RSNetWorx for DeviceNet
Step Icon
1. After setting up a driver in RSLinx (see Using RSLinx Classic on
page 8-2 ), start RSNetWorx for DeviceNet.
2. Select Network > Online. If the Browse for Network dialog box
appears, RSLinx has multiple drivers configured. Select your
DeviceNet network, and click OK. A prompt appears.
3. Click OK to go online. The devices on the network appear in the
Configuration View. You can select Graph, Spreadsheet, or Master/
Slave views.
Figure 8.3 shows an example network in a Graph view.
Shortcut to
RSNetWorx
